Other Machinery

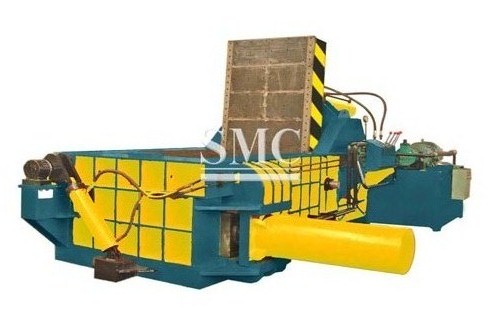

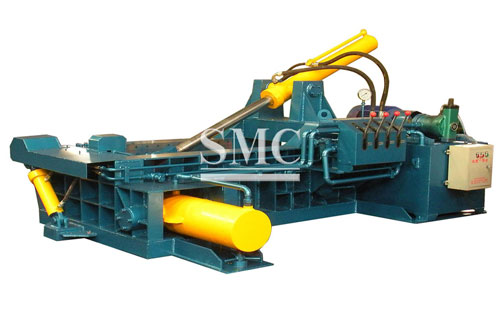

Hydraulic Scrap Metal Baler

    Rated Power: 7.5 kW


    Rated Speed: 1440 rpm


    Power Spec: 3PH, 50 / 60Hz

Product Detail

Power System (Motor)

Type: Y132M-4

Rated Power: 7.5 kW

Rated Speed: 1440 rpm

Power Spec: 3PH, 50/ 60Hz

System Parameters

Lid Cyl. Force: 24 Ton

Side Pressure Cyl. Force: 50 Ton

Main Pressure Cyl. Force: 63 Ton

Bale Discharge Cyl. Force: 8 Ton

Hydraulic System Pressure:  25 MPa

Idle Cycle Time:  Approx. 90 Sec

Hydraulic System (Pump)

Type: 25YCY14-1B

Rated Displacement: 5ml/r

Max Operating Pressure: 31.5MPa

Operation System

Manual Valve Operation

Standard Configuration

A3 Steel Liners, Surface Heat Treatment.

Optional Configuration

Cutting Blades & Teeth (2 sides);

Cooler / Heater;

Diesel / Diesel Generator for Power.

General Description

Main Machine Size (L×W×H): 2800×1900×1700 mm

Press Box Size (L×W×H): 1000×600×500 mm

Bale Size (W×H): 190×190 mm

Bale Weight (Steel): 15-30 kg

Production Rate (Steel): 0.4-0.8 ton/hr

Shipping Weight: Approx. 4 tons

Loading (Standard Containers): One

Hydraulic Oil Brand

Oil Tank Volume: 180 ltr

Hydraulic Oil Brand




Drawing View
