Steel Section

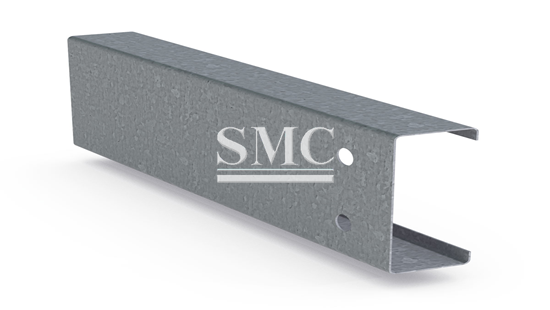

C Steel Purlins

    Surface Finished: Black or Galvanized


    Perforated: According to customer's requirement


    Grade: Q195, Q215, Q235, Q345, SGCC, DX51D, DX53D, etc

Specifications of C Steel Purlins:














Section

Thickness

A

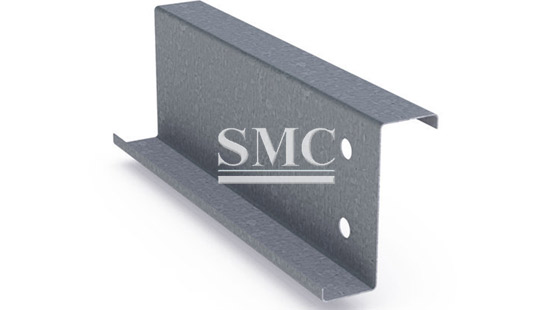

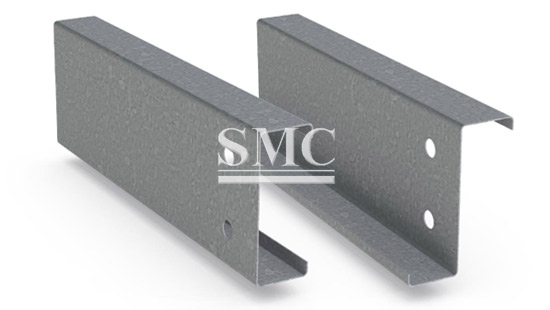

Z Purlin

C Purlin

Kg's/Mtr



C / Z

mm

B

C

D

E

F

AS1397



10012

1.2

102

53

49

12.5

51

12.5

2.07



10015

1.5

102

53

49

13.5

51

13.5

2.58



10019

1.9

102

53

49

14.5

51

14.5

3.25



15012

1.2

152

65

61

15.5

64

14.5

2.84



15015

1.5

152

65

61

16.5

64

15.5

3.54



15019

1.9

152

65

61

17.5

64

16.5

4.46



15024

2.4

152

66

60

19.5

64

18.5

5.62



20015

1.5

203

79

74

15

76

15.5

4.44



20019

1.9

203

79

74

18.5

76

19

5.68



20024

2.4

203

79

73

21.5

76

21

7.15



25019

1.9

254

79

74

18

76

18.5

6.43



25024

2.4

254

79

73

21

76

20.5

8.1



30024

2.4

300

100

93

27

96

27.5

10.01



30030

3

300

100

93

31

96

31.5

12.6



35030

3

350

129

121

30

125

30

15.09












Process: Purlin is cold-formed form hot rolled strip or galvanzied strip.


Advantages of C Purlins

•Ability to span length

•Purlin construction is easier to assemble and handle

•Assured dimensions and straightness

•High durability, versatility and uniform quality

•Low transportation cost due to decreased weight


 Application of Purlin:

In steel construction, the term purlin typically refers to roof framing members that span parallel to the building eave and support the roof decking or sheeting. The steel purlins are in turn supported by rafters or walls. C Purlins are light in weight and perfect for simple span construction.

•Construction industry: steel structure (purlin, wall beam); Self-assembled of building elements (lightweight roof, bracket);

• Mechanical light industry: column, beam and arm, etc;

• Solar power generation (photovoltaic bracket);

• Automobile manufacturing, transmission tower, ship bridges, road and railway construction, equipment room container, mineral bracket, etc.
