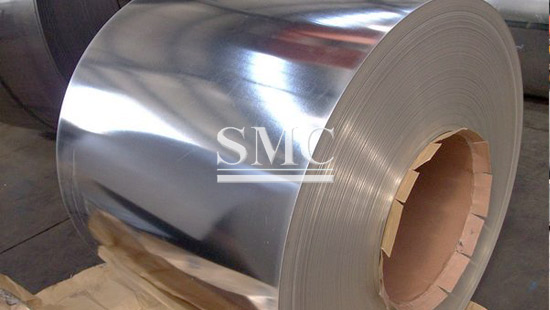

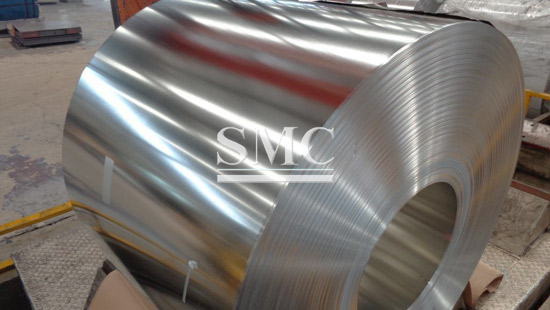

Tin Plate

Tin Plate, Tinplate Coil

    Thickness: 0.12mm-0.50mm



    Width ≤1050mm



    Tin Coating: 1.1g/m2-8.4g/m2

Shanghai Metal Corporation produces tinplate material and provides perfect service to tinplate buyers for years. With Continuously investment and hard work, SMC has become one important tinplate material supplier in China market, and SMC tinplate wins good reputation in global markets.

Strictly operation according to ISO9001:2008 International Quality System, SMC has always held the management concept of “quality first, credit first, customer first” to develop constantly, we have always persisted in scientific innovation.

If you want to know more about the products, please feel free to contact us, we will reply you within 24 hours.



  • 5. Width: 260 to 1050mm

    6. Coil diameter: 300/420/508mm

    7. Tin coating: 2.8/2.8 ~ 5.6/5.6 g/m2

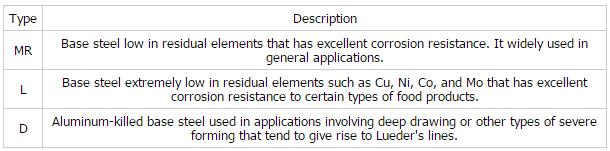

Type

Description

MR

Base steel low in residual elements that has excellent corrosion resistance. It is widely used in general applications.

L

Base steel extremely low in residual elements such as Cu, Ni, Co, and Mo that has excellent corrosion resistance to certain types of food products.

D

Aluminum-killed base steel used in applications involving deep drawing or other types of severe forming that tend to give rise to Lueder’s lines.




Temper

Code

Chinese Stardard

Japaness Standard

American Standard

European Standard

International Standard



GB/T 2520-2000

JIS G3303-2002

ASTM A623M-2002

DIN EN 10203-1991

ISO 11949-1995

T-2

TH52+SE

T-2

T-2(53)

T52

TH52+SE

T-2.5

TH55+SE

T-2.5

 /

TH55+SE

T-3

TH57+SE

T-3

T-3(T57)

T57

TH57+SE

T-4

TH61+SE

T-4

T-4(T61)

T61

TH61+SE





Surface state of tinplate

Marks

Surface state

Characteristics

B

Bright bough

Glazed surface obtained after melting treatment of electrotinned smooth raw material strip featuring certain oriented rubstone figure.

R

Stone rough

Glazed surface obtained after melting treatment of electrotinned raw material strip featuring certain oriented rubstone figure.

S

Silver rough

Glazed surface obtained after melting treatment of electrotinned raw material strip with rough matt surface.

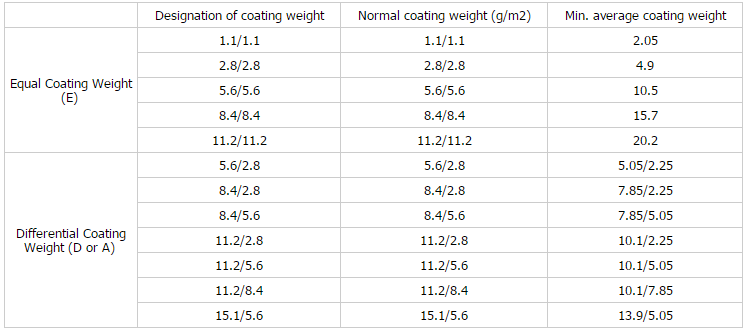

Coating weight

Classification

Designation of tin coating weight

Nominal tin coating weight(g/m2)

Min average tin coating weight(g/m2)

Remark

Equal tin coating(E)

1.1/1.1

1.1/1.1

1.8

All specification

2.2/2.2

2.2/2.2

4

All specification

2.8/2.8

2.8/2.8

5

All specification

5.6/5.6

5.6/5.6

10.5

All specification

Differential tin coating(D or A)

2.2/1.1

2.2/1.1

2.0/0.9

All specification

2.8/1.1

2.8/1.1

2.25/0.9

All specification

5.6/1.1

5.6/1.1

5.05/0.9

All specification

2.8/2.2

2.8/2.2

2.25/2.0

All specification

5.6/2.2

5.6/2.2

5.05/2.0

All specification

5.6/2.8

5.6/2.8

5.05/2.25

All specification





Packaging of Tin Plate, Tinplate coil

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

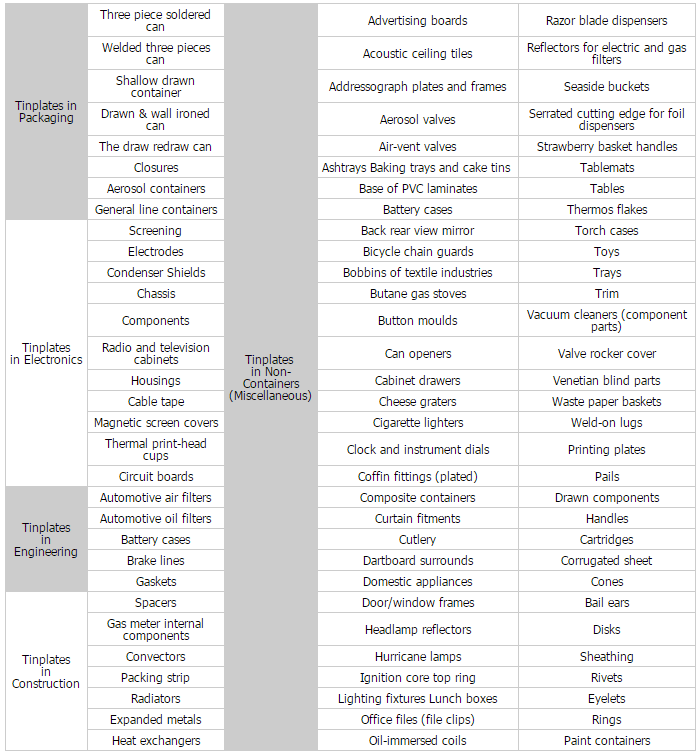

Application of Tinplate

Tinplate in Packaging

Three piece soldered can

Tinplate in Non-Containers (Miscellaneous)

Advertising board

Razor blade dispensers

Welded three pieces can

Acoustic Ceiling tiles

Reflectors for electric and gas filters

Shallow drawn container

Addressograph plates and frames

Seaside buckets

Drawn & wall ironed can

Aerosol valves

Serrated cutting edge for foil dispensers

The draw redraw can

Air-vent calves

Strawberry basket handles

Closures

Ashtrays baking trays and cake tins

Tablemat

Aerosol line containers

Base of PBC laminates

Tables

General line containers

Battery cases

Thermos flakes

Tinplate in Electronics

Screening

Back rear view mirror

Torch Cases

Electrodes

Bicycle chain guards

Toys

Condenser shields

Bobbins of textile industries

Trays

Chassis

Butane gas stoves

Trim

Components

Button moulds

Vacuum cleaners (component parts)

Radio and television cabinets

Can openers

Valve rocker cover

Housings

Cabinet drawers

Venetian blind parts

Cable tape

Cheese graters

Waste paper baskets

Magnetic screen covers

Cigarette lighters

Weld-on lugs

Thermal print-head cups

Clock and instrument dials

Printing plates

Circuit boards

Coffin fittings (plated)

Pails

Tinplate in Engineering

Automotive air filters

Composite containers

Drawn components

Automotive oil filters

Curtain fitments

Handles

Battery cases

Cutlery

Cartridges

Brake lines

Dartboard surrounds

Corrugated sheet

Gaskets

Domestic appliances

Cones

Tinplate in Construction

Spacers

Door/window frames

Bail ears

Gas meter internal components

Headlamp reflectors

Disks

Convectors

Hurricane lamps

Sheathing

Packing strip

Ignition Core top ring

Rivets

Radiators

Lighting fixtures Lunch boxes

Eyelets

Expanded metals

Office files (file clips)

Rings

Heat exchangers

Oil-immersed coils

Paint containers
