Galvanized Steel Coil & Sheet & Strip

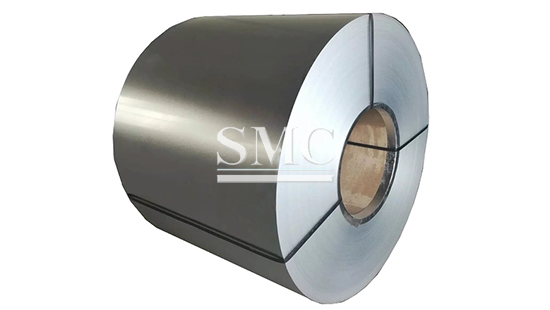

Hot Dip Galvanized Steel Coil

    Thickness: 0.13mm - 6.0mm



    Width: 600mm - 1500mm



    Zinc Coating: 30g/m2 - 600g/m2

Hot-dip galvanized steel coil is suitable for fabrication by forming, pressing and bending because of its excellent forming property, painting ability, welding ability. It is mainly used in construction, home appliances, automobiles, machinery, electronics, light industry and other industries. Shanghai metal Corporation is a professional manufacturer and supplier of Hot-dip galvanized steel coil with high quality and reasonable price.

If you want to know more about Hot-dip galvanized steel coil products or Hot-dip galvanized steel coil price please feel free to contact us, we will reply you within 24 hours.




  • 1. Spangle: Big, Regular, Minimized, Zero

    2. Surface treatment: Passivation, Oiled, Passivation+Oils, Skin-Pass, etc

    3. Zinc coating: Z40-Z600

    4. Coil ID: 508mm/610mm

    5. Edge: Cutting edge



  • 1. Roofing

    2. Ventilating duct

    3. PPGI

    4. Home appliance





1. Standard, steel grade & application:

Type

Steel Quality

Steel Grade

Standard

Equivelent Steel Grade

Application

low carbon steel and super low carbon steel

commercial quality CQ

DX51D+Z

GB/T 2518-2008
EN10327-2006
EN10326-2006

SGCC

general forming metal products

DX51D+ZF

drawing quality DQ

DX52D+Z

SGCD1

drawing metal products

DX52D+ZF

JAC270C

deep drawing quality DDQ

DX53D+Z

SGCD2

deep drawing metal products

DX53D+ZF

JAC270D

extra-deep drawing quality EDDQ

DX54D+Z

SGCD3

extra-deep drawing products

DX54D+ZF

JAC270E

carbon structural steel and low alloy steel

commercial quality high speed steel CQHSS

S220GD+Z



structural steel

S250GD+Z

SGC340

S280GD+Z

SGC400

S320GD+Z

SGC440

S350GD+Z

SGC590

S550GD+Z






2. Mechnical property:

Steel Grade

Yield strength MPA

Tensile strength MPA

Elongation A80mm%  min

180° Bending Test d=a

DX51D+Z

/

270-550

22

no drop

DX52D+Z

140-300

270-420

26

no drop

DX53D+Z

140-260

270-380

30

no drop

DX54D+Z

120-220

270-350

36

no drop



3. Coating mass:

Zinc structure

Zinc Sympol

Min value for two sides g/m2

Density g/m2

at three ponit

at one point

7.1

pure zinc(z)

Z100

100

85

Z140

140

120

Z200

200

170

Z225

225

195

Z275

275

235

Z450

450

385

Z600

600

510





4. Width tolerance:

Nominal width mm

Allowed tolerance(mm)

PW.A

PW.B

Min

 Max

Min

Max

≥600-1200

0

5

0

2

1200-1500

0

6

0

2





5. Flatness:

Nominal width mm

Flateness not more than /mm

PF.A

PF.B

Nominal thickness mm

0.7

≥0.71.2

≥1.2

0.7

≥0.71.2

≥1.2

≥6001200

12

10

8

5

4

3

≥12001500

15

12

10

6

5

4

≥1500

19

17

15

8

7

6

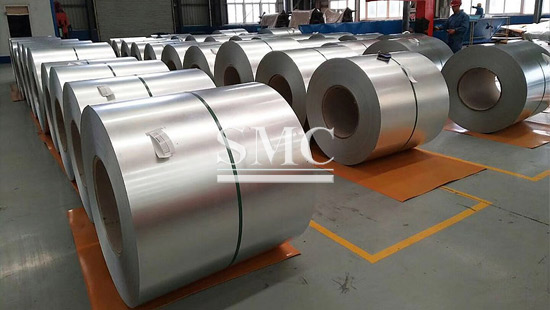

Packaging of Hot Dip Galvanized Steel Coil

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Hot Dip Galvanized Steel Coil:

1) Construction and building: roofing, ventilating duct, handrail, partition panel, etc.

2) Further processing: coating base plate

3) Electric appliance: refrigerator, washing machine, recorder, microwave, etc.



What is Galvanized Steel?

There are two typical galvanizing ways to obtain a zinc coating: hot dip galvanizing and electrogalvanizing. Hot dip galvanizing is the process that steel is immersed into molten zinc bath to get a zinc coating surface. This not only helps protect steel from rust and corrosion, but also gives the steel a shiny attractive appearance. Electrogalvanizing is the process that uses electrolysis to coat the steel with zinc, which is neither cost-effective nor environmentally friendly. It is hardly to find electrogalvanized steel in our lives nowadays.


What are the advantages of Galvanized Steel?

Because of permanently and successive zinc/iron alloy layers, galvanized steel offers many benefits:

1) Corrosion Resistance: the zinc coating surface protects the base steel not only by providing barrier to corrosion elements, but also by the sacrificial nature of the coating. Galvanized steel often remains in working order with little maintenance for 40 years or more.

2) Excellent Surface Appearance

3) Formability: it can be simply bend to parts with deep drawing requirements

4) Paintability: it can be painted with different colors

5) Weldability: it is accepted various welding practices


What are the disadvantages of Galvanized Steel?

In spite of many benefits, galvanized steel is not always an ideal choice. Galvanized steel cannot be used underground without being properly covered, which can be inconvenient for many jobs.


Where do we use Galvanized Steel?

It is primarily used in the construction industry, such as roofing, wall cladding, and support beams. It is also used in the automotive industry, due to its enhanced paintability, weldability and corrosion resistance. Moreover, it is an essential material for white goods application, such as refrigerators, air-conditioners, washers, microwaves, vending machines and audio visual systems.
