Standard: ISO, JIS, US, DIN

Size Range: 1‑16mm wire rope matching

Material Grade: 304, 316 stainless steel

Type: Oval compression sleeve

Surface: Bright polished

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading Stainless Steel Wire Rope Oval Sleeves manufacturer and supplier.

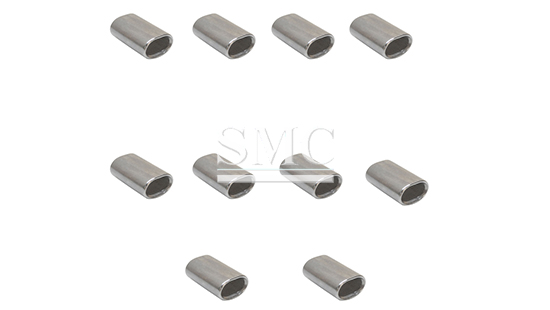

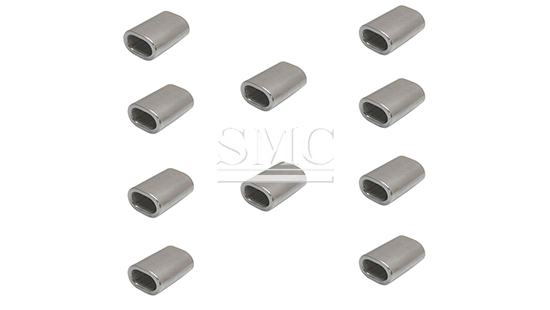

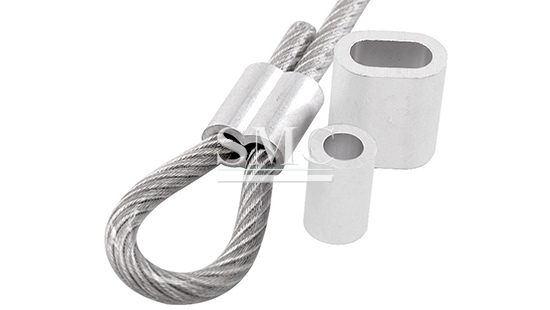

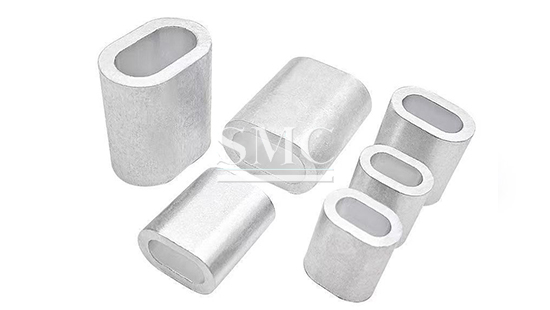

Stainless Steel Wire Rope Oval Sleeves are oval‑shaped metal fittings designed for crimp‑locking stainless steel wire rope ends. After inserting two rope ends through the sleeve, users apply hydraulic crimping force to deform the oval sleeve, creating a permanent fixed loop terminal for wire rope assemblies. These fittings are widely used for rigging assemblies, safety lanyards, overhead hanging systems, yacht rigging, fence tensioning and stage suspension hardware. It solves common field problems such as loose wire‑rope loop connections, slipping under tensile load and rough hand‑made wire rope terminals with low breaking strength. Matching sleeve size to corresponding wire‑rope diameter guarantees crimp joint tensile performance, avoiding joint failure under dynamic or static load and lowering safety risks for hoisting and suspension applications.

If you want to know more about our stainless steel products or Stainless Steel Wire Rope Oval Sleeves price please feel free to contact us, we will reply you within 24 hours.

1.Material composition：304 /316 stainless steel. 304 for general indoor & fresh‑air environment; 316 contains molybdenum for coastal salt‑spray anti‑corrosion.

2.Product structure：Oval hollow tubular body, inner bore matches outer diameter of designated wire rope.

3.Working principle：Plastic deformation under hydraulic crimp presses sleeve tightly onto wire‑rope strands for mechanical locking.

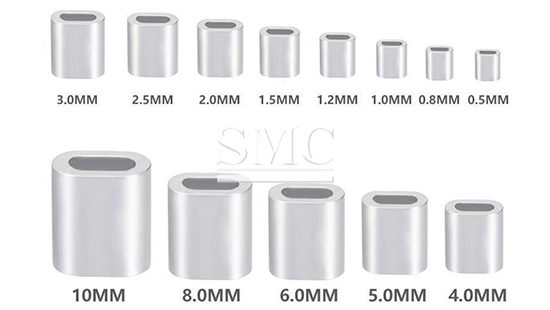

4.Size selection rule：Each sleeve size corresponds to one specific wire‑rope diameter; mis‑matching will reduce breaking‑load performance.

5.Application difference：304 sleeves for inland industrial rigging; 316 sleeves for marine and coastal outdoor installations.

1.Size‑Matched Inner Bore: Inner hole dimension strictly fits designated wire rope diameter. Avoids insufficient compression after crimping and prevents rope‑end slip under tension load.

2.Grade‑Based Corrosion Resistance: 304 and 316 stainless steel options. 316 resists salt‑spray corrosion for seaside projects, reduces later‑stage rust‑caused fitting replacement frequency.

3.Uniform Wall Thickness: Consistent wall thickness across the oval sleeve. Makes crimp deformation even, prevents local cracking during high‑pressure hydraulic crimp operation.

4.Bright Clean Surface: Deburred inner and outer surfaces. Sharp burrs are removed to prevent scratching wire‑rope strands during threading and extend wire‑rope service life.

1.Marine Yacht Rigging: Used for making fixed rope loops on yacht shrouds and stays. 316 material withstands seawater salt‑spray erosion. Recommended grade:316, for wire rope 2‑8mm.

2.Safety Lanyard Assembly: Crimp terminal for fall‑protection safety lanyard wire‑rope ends. Reliable crimp joint maintains tensile strength for personnel safety. Recommended grade:304/316, match rope 3‑10mm.

3.Stage and Equipment Suspension: Loop terminals for hanging lamps and stage hardware. Stable crimp connection bears static hanging load. Recommended grade:304, for wire rope 4‑12mm.

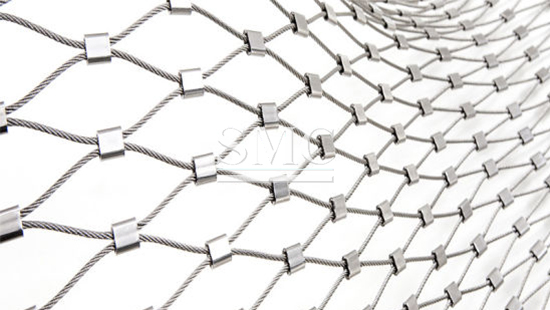

4.Fence and Tension System: End fixing for cable fence and guy‑wire tension systems. Convenient on‑site crimp without complex welding work. Recommended grade:304, for wire rope 1‑6mm.

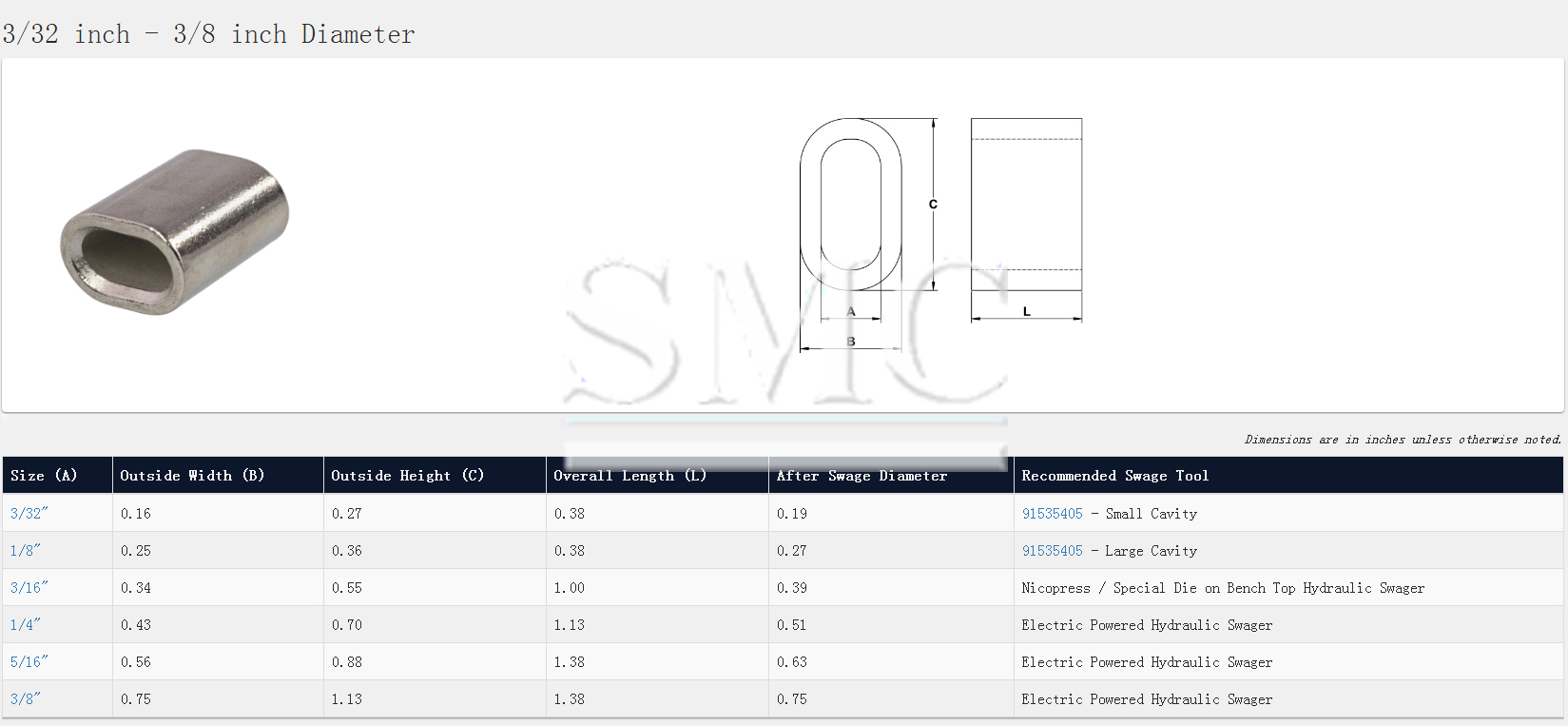

Model	Suitable Wire Rope Ø	A (Inner Width)	B (Inner Height)	K (Wall Thickness)	L (Overall Length)
101-010	1	1.2	2.4	0.65	5
101-015	1.5	1.7	3.4	0.75	7
101-020	2	2.2	4.4	0.85	7
101-025	2.5	2.7	5.4	1.05	10
101-030	3	3.3	6.6	1.25	11
101-035	3.5	3.8	7.6	1.5	13
101-040	4	4.4	8.8	1.7	14
101-045	4.5	5	10	1.9	16
101-050	5	5.5	11.2	2.1	18
101-060	6	6.6	13.2	2.5	21
101-065	6.5	7.2	14.4	2.7	23
101-070	7	7.7	15.6	2.9	25
101-080	8	8.8	17.6	3.3	28
101-090	9	9.9	19.8	3.7	32
101-100	10	11	22	4.1	35
101-120	12	13.2	26.4	4.9	42
101-140	14	15.3	30.6	5.8	49
101-160	16	17.5	35	6.7	56
101-180	18	19.6	39.2	7.6	63
mm

Standard Packaging

Small‑size sleeves are packed in sealed PE plastic bags by quantity; bags are put into thick export cartons. Large‑volume cartons are secured with packing straps and stacked on fumigated wooden pallets. Each outer carton label marks material grade, size, quantity and batch number for traceability.

Shipping

We support FCL/LCL sea freight, air freight and express delivery subject to order weight and destination. Available trade terms: EXW, FOB, CIF. Other terms may be available upon request. Freight cost is calculated according to gross weight, volume, destination and transport method. Commercial invoice, packing list and inspection report can be provided.

Lead Time

Stock‑spec samples:3‑7 working days

Standard bulk orders:18‑28 working days

Custom special‑size orders:28‑40 working days

Q1：How long does sample preparation take?

A：Stock specifications take 3‑7 working days. Non‑stock custom sizes require 10‑15 working days.

Q2：What information do you need for quotation?

A：Please provide grade, sleeve size (matching wire rope diameter), order quantity and destination port.

Q3：What is the MOQ?

A：Standard bulk MOQ is 50kg; small sample orders starting from 5kg are acceptable with higher unit price.

Q4：What documents can you supply?

A：We provide ISO9001 related documents and factory inspection reports for each batch. Certificate of origin is available on request.

Q5：What will happen if I use mismatched sleeve and wire‑rope size?

A：Mis‑matched size will cause insufficient crimp compression, leading to connection slip and drop of actual breaking‑load, bringing safety hazard. Must select sleeves strictly according to wire rope diameter.

Q6：Should I choose 304 or 316 grade?

A：Choose 304 for inland dry‑environment use. Choose 316 for coastal, marine or salt‑spray exposure environment for better anti‑corrosion performance.
