Forming Machine

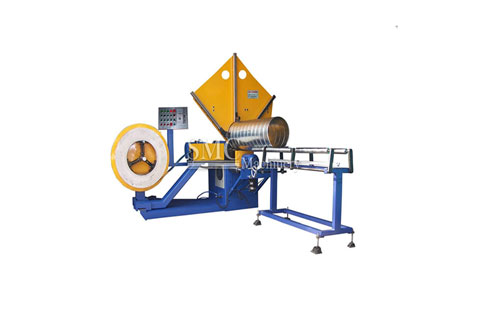

Spiral Duct Forming Machine

    Width: 500mm to 1200mm




    Thickness: 0.13m to 2.0mm

  • The idea machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.

    - Fully auto material feeding, forming, lubrication, cutting, tube loading

    -Built with Mitsubishi PLC control panel and transformer, speed could be adjusted.

    -Spiral angle could be adjusted automatically.

    -With lubrication system, could lubricate automatically.

    -Tension controlled by air pressure, auto brake.

    -With air and hydraulic pressure system, save power.

    -According to European standard, speed adjusted by pneumatic brake, which could be unanimous & synchronous


  • -With auto counting system and photoelectric tracking, pipe quantity could be counted.

    -Adopt European advantage technical, speed can reach 80m/min.

    -With ideal flying slitter, no noise and hot sparks, pipe end smooth and neat.

    -Different mould to meeting respective request, just change mould to make various diameter.

    -Complete with meter cutting length control, meter could be controlled and calculated; when reach set meter, could slit automatically.

    -Combination of both Western & Asian Technologies on complete production and control.

    -Complete with all safety features, auto alarm and urgent stop.


Technical Parameter:
