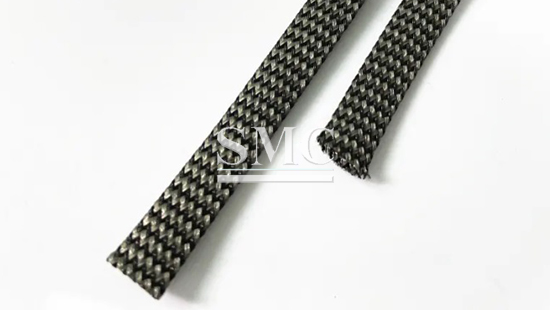

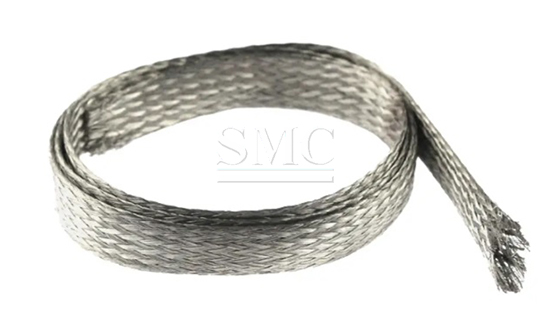

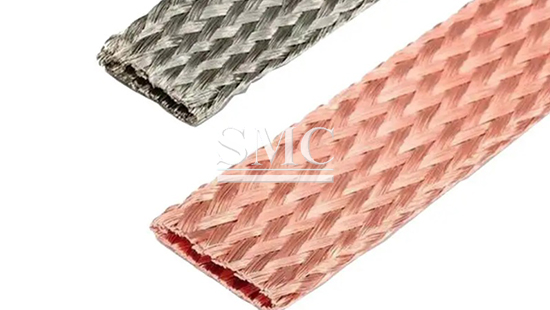

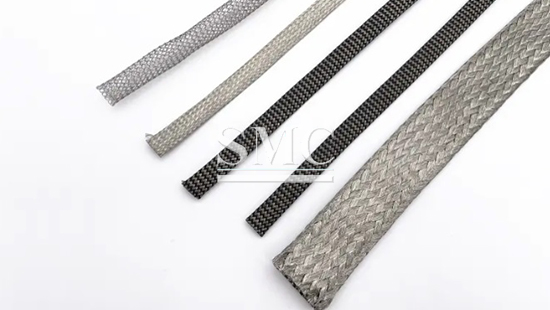

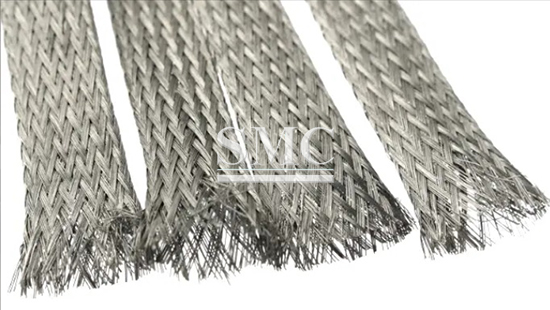

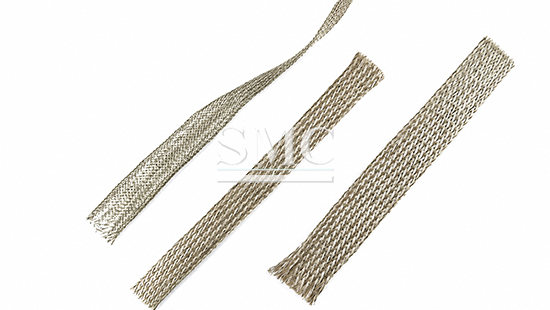

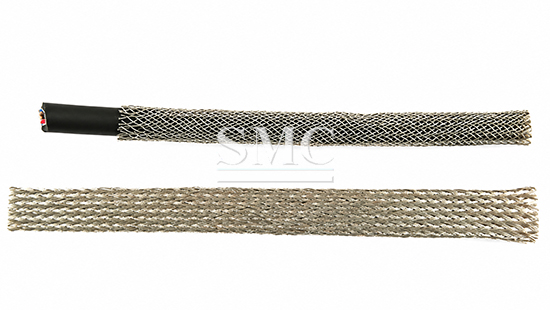

Tinned Copper Wire Braided Sleeve/ Anti Wave Sleeve
Material: Copper
Type: Braided sleeve
Rated voltage: 600V
Shanghai Metal Corporation is one of the leading and reliable manufacturers and exporters of Tinned copper wire braided sleeve in China. We provide the high quality matched products and excellent services for various industries.

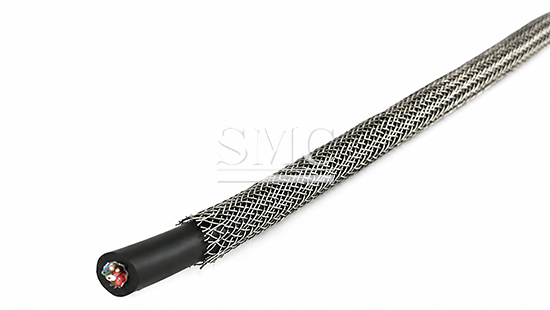

The AWC-2 Series high-performance braided sleeve is manufactured from high-quality tinned copper wire using a precision braiding process. The tin coating enhances the copper wire’s resistance to oxidation and corrosion while maintaining excellent electrical conductivity, flexibility, and solder ability. The sleeve has a uniform braided structure and a clean, attractive appearance, and can conform closely to cables, hoses, and irregularly shaped components. When used as a reinforcing layer for suitable hose assemblies, it can help improve mechanical strength and pressure-bearing capacity, reduce damage caused by vibration, bending, abrasion, and external impact, and extend the service life of the protected components. It also offers reliable performance under both high- and low-temperature operating conditions.
The AWC-2 Series is widely used for electromagnetic interference and radio-frequency interference shielding, cable-bundle protection, electrical grounding and bonding, and mechanical reinforcement. In industrial automation equipment, control cabinets, robots, motors, and power systems, it helps protect signal and power cables from electromagnetic interference and mechanical wear. In electronic and communication equipment, it can improve signal stability by reducing interference between adjacent cables and external electrical sources. It is also suitable for machinery, chemical-processing equipment, metallurgical facilities, construction projects, vehicles, rail transit, marine equipment, and other demanding environments where wires, cables, flexible hoses, or pipe assemblies require reliable shielding, grounding, abrasion protection, and reinforcement. Proper sleeve size and construction should be selected according to the required shielding effectiveness, operating temperature, expansion range, and mechanical load.
If you want to know more about our Tinned copper wire braided sleeve, please feel free to contact us, we will reply you within 24 hours.
Tinned Copper Wire Braided sleeve
|
Type |
Folding path(mm) |
As supplied diameter(mm) |
Minimum diameter(mm) |
Maximum diameter(mm) |
Maximum weight(g/m) |
Recmmended outer diameter(mm) |
Standard packaging(m/roll) |
|
AWC-2-01 |
1.8 |
1.2 |
1 |
2 |
3.77 |
1.5 |
200 |
|
AWC-2-03 |
4.5 |
3 |
2 |
4 |
6.28 |
3 |
200 |
|
AWC-2-05 |
7 |
4.5 |
3 |
6 |
16.96 |
5 |
100 |
|
AWC-2-08 |
12 |
8 |
6 |
10 |
33.93 |
8 |
100 |
|
AWC-2-13 |
20 |
13 |
10 |
16 |
60.32 |
13 |
100 |
|
AWC-2-20 |
30 |
20 |
16 |
24 |
135.7 |
20 |
50 |
|
AWC-2-25 |
40 |
27 |
24 |
30 |
152.7 |
27 |
50 |
|
AWC-2-35 |
52 |
35 |
30 |
40 |
204.3 |
35 |
50 |
|
AWC-2-45 |
70 |
47 |
40 |
55 |
271.4 |
47 |
50 |
|
AWC-2-55 |
85 |
57 |
55 |
60 |
339.3 |
57 |
50 |
Packaging of Tinned copper wire braided sleeve/Anti wave sleeve
The tinned copper wire braided sleeves are neatly wound onto sturdy reels to prevent tangling, deformation, and mechanical damage. Each reel is tightly wrapped with transparent plastic film to protect it from moisture, dust, oxidation, and contamination during storage and transportation. The protected reels are then packed individually or in groups inside durable corrugated cartons with identification labels. For bulk export shipment, the cartons are consolidated in reinforced wooden cases to provide additional protection against impact, compression, and rough handling during long-distance transportation.
Shipping
We support FCL and LCL sea freight, air freight and express delivery depending
On order quantity and destination. Terms like FOB, CIF and EXW are all available. Other terms may be available upon request.
Shipping costs are calculated based on cargo volume,gross weight,destination and selected transportation method.
Lead Time
Samples:3–7workingdays
Standard orders:15–25working days
Customized orders: 25–40working days
Q1:How and how long can I get a sample to check your quality? Can I expect to get the sample?
A: After product and price confirmation, you can require for samples to check our quality. the samples are free and will be ready for delivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.
Q2: Can you do the design for us?
A: Yes. we are a professional manufacturer who can provide you OEM service.
Q3: What’s your sample time ?
A: Usually it should be 3 ~ 5 days.
Q4: What trade terms do you accept ?
A: EXW, FOB, CIF are all acceptable.
Q5: How to Warrant your heat shrink tubing quality?
A:Step1. Clarify the size, color, material, packing, and all other detail requirement before production;
Step 2. Strictly inspection made during production and before goods delivery from our factory.
Step 3. After goods received by client, once client feedback any technical mistake within 2 months, and proved this mistake/problem made by our production, we’ll provide qualified goods for free.
Q6: What's the MOQ for your products?
A:We accept both large and small order,please contact us for details.
Q7: How does the sleeve provide electromagnetic shielding?
The dense tinned-copper braid reduces electromagnetic interference by forming a conductive shielding layer around the cable.
Q8: How should the braided sleeve be grounded?
It should be connected securely to the equipment ground at one or both ends, depending on the system’s shielding requirements.
