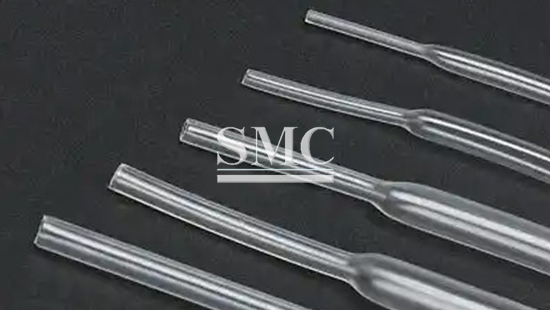

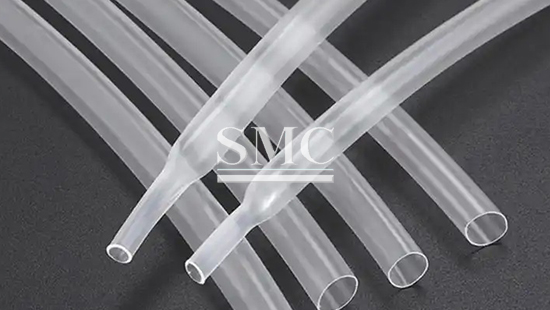

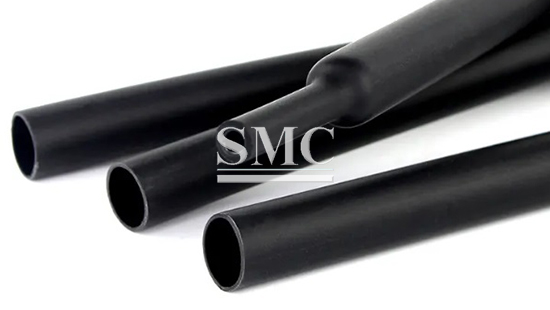

PE Heat Shrink Tube/ Shrink Tube/ EVA Shrink Tube
Shrink Ratio: 4:1, 2:1, 1.7:1, 1.3:1
Material: PE plastic
Normal size: Dia 1.6mm-64mm
Shanghai Metal Corporation is one of the leading and reliable manufacturers and exporters of Shrink tubes in China. We provide the high quality matched products and excellent services for various industries.
PE heat-shrinkable tube is made of imported high-quality Polyethylene resin and processed by special methods. The product has the advantages of high temperature resistance, high pressure resistance, corrosion resistance, wear resistance, and good mechanical strength. Widely used in various fields such as machinery, electronic chemical industry, communication, etc.
If you want to know more about our PE shrink tubing, please feel free to contact us, we will reply you within 24 hours.
|
Item |
Parameter |
|
Material |
Radiation-crosslinked polyethylene |
|
Shrink ratio |
2:1, 3:1 |
|
Initial Shrinkage Temperature |
≥84℃ |
|
Full Contraction Temperature |
125℃ |
|
Continuous operating temperature |
-55℃～125℃ |
|
Rated Voltage |
600V |
|
Longitudinal shrinkage |
≤8% |
|
Flame Retardancy Rating |
VW-1 |
|
Dielectric Strength |
≥20kV/mm |
|
Certificate |
RoHS |
Standard Packaging

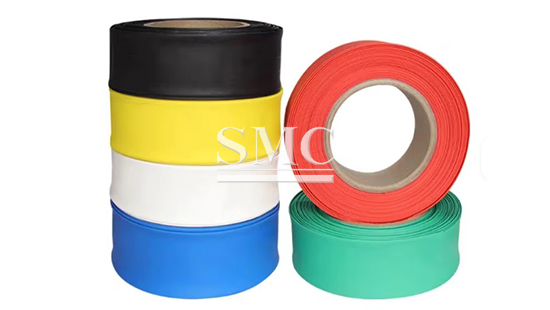

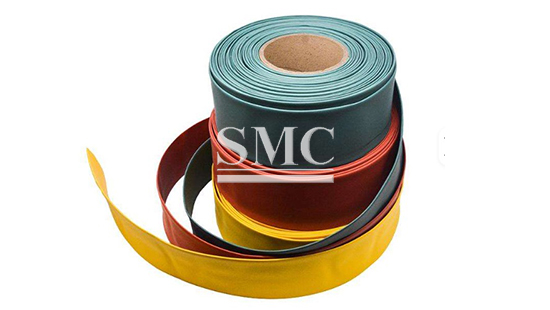

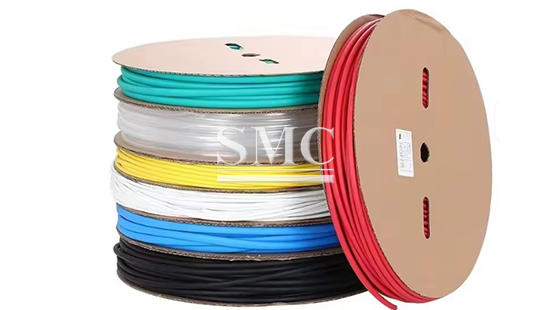

PE heat-shrink tubing is typically exported in rolls on paper cores. The tubing is wound around the paper core and covered with a protective film, with multiple rolls packed into sturdy, neutral-colored corrugated cardboard boxes. Large-diameter, thick-walled tubing may be protected with a rigid paper tube. Shipping labels are affixed to the boxes, and the paper cores are labeled with specifications, material, certifications, batch numbers, and other relevant information. If required, wooden crates may also be added over the cardboard boxes to enhance transport safety.
Shipping
We support FCL and LCL sea freight, air freight, as well as project specific over land trucking, subject to order quantity and destination country. Available trade terms include EXW, FOB, CIF, DAP and other Incoterms upon customer request. Freight cost is calculated according to cargo volume, gross weight, delivery destination and selected transport mode.
Lead Time
Samples: 3 – 7 working days
Standard orders: 15 – 25 working days
Customized orders: 25 – 40 working days
Q: What is PE heat shrink tube?
A: Cross-linked polyolefin heat shrink sleeve. It shrinks upon heating to provide electrical insulation and mechanical protection for wires, joints and components.
Q: Shrink ratio available?
A: Standard 2:1, optional 3:1 /4:1. Single wall or dual wall with adhesive liner for waterproof sealing.
Q: Temperature rating?
A: Continuous working: -55℃ ~125℃. Full recovery temp:125℃. Rated voltage 600V.
Q: Colors & customization?

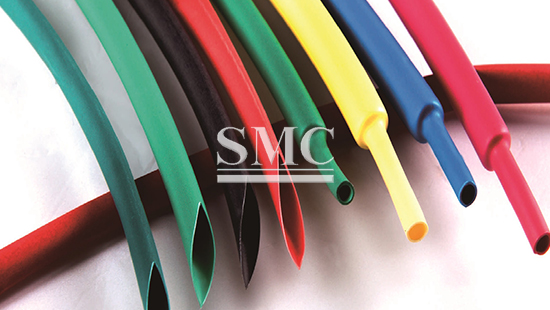

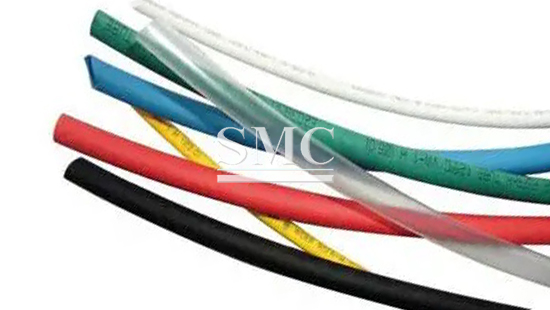

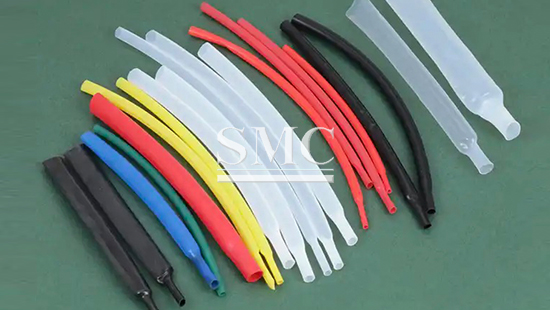

A: Black, red, yellow, blue, green, white, clear. Custom printing & cutting length acceptable.
Q: Certificates?
A: UL224, RoHS, REACH, halogen-free version available.
Q: Certificates available?
A: ISO9001, CE. Drinking water approval like WRAS / ACS / NSF can be provided upon request.
Q: What is MOQ? Can we do OEM marking?
A: MOQ negotiable. OEM printing (logo, standard, size) on pipe surface is acceptable.
