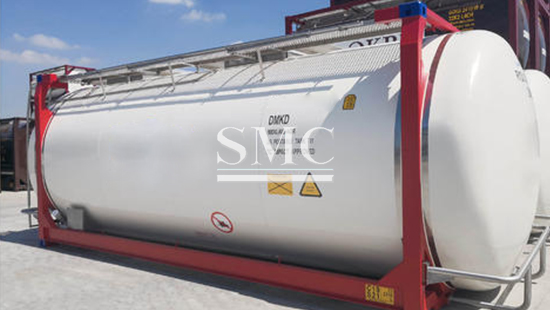

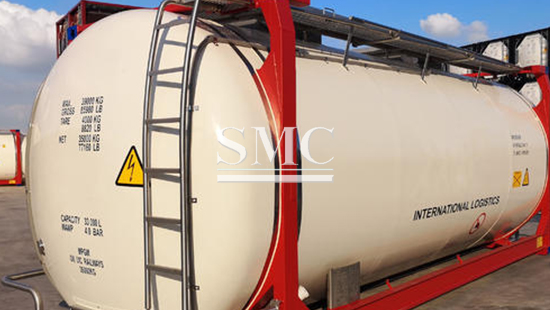

Tank Container
Feature: Wind and waterproof
Size: 20ft/ 40ft
Type: T4,T6,T11etc
Material: AISI 316 and other grades of stainless stee
Shanghai Metal Corporation is a leading ISO tank container (20ft/ 40ft) manufacturer and supplier.
The container is a kind of tool that can be used for any transportation and easy to be handled by hand. The greatest success of a container lies in the standardization of its products and the whole set of transportation systems.
If you want to know more about our container products or ISO tank container (20ft/ 40ft) price please feel free to contact us, we will reply you within 24 hours.
|

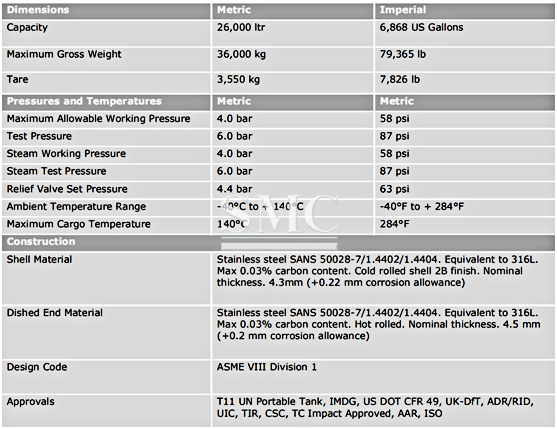

T11 FRAME TANK |
|
|
General specification |
|
|
Dimension |
6058mm×2438mm×2591mm ( 20’×8’×8’6” ) |
|
Frame material |
High tensile steel suitable for sub zero temperatures |
|
Tank material |
AISI 316 and other grades of stainless steel |
|
Maxing gross weight |
Up to 36000kg / 79366lb |
|
Stacking |
86400kg / 190477 lb per post |
|
Capacities |
14000L / 3699 US gal to 26000L / 6869 US gal |
|
Working pressure |
4 bar / 58 psi |
|
Test pressure |
6 bar / 87psi |
|
Add: with or without insulation and steam heating |
|
|
Fittings |
|
|
Manhole |
500mm(20”) with 6 or 8 swing bolts |
|
Venting |
65mm (2 ½') relief valve, with or without bursting disc |
|
Air Line |
40mm(1 ½')with valve |
|
Bottom Discharge |
80mm(3') internal foot valve with remote control, butterfly or |
|
Top Discharge |
80mm(3') provision only or syphon tube, butterfly valve |
|
Spill trays |
With overflow pipes, with or without lids |
|
Steam heating |
Heating areas up to 12㎡. Working pressure:7 bar |
|
Insulation |
50mm(2') combination of rook wool and polyurethane with aluminum, |
|
Top access |
Ladder at rear end, aluminum walkway to top accessories |
|
Approvals |
CSC,RID/ADR,UIC,TIR,DOT(USA),IMDG,TG,AAR |
|
CUSTOMERS SPECIFIC REQUIREMENTS CAN BE ACCOMMODATED ON REQUEST |
|
