Steel Wire & Steel Cable

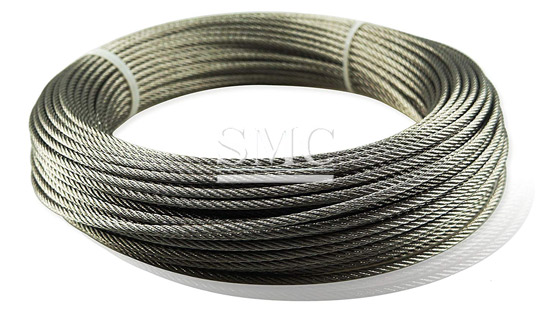

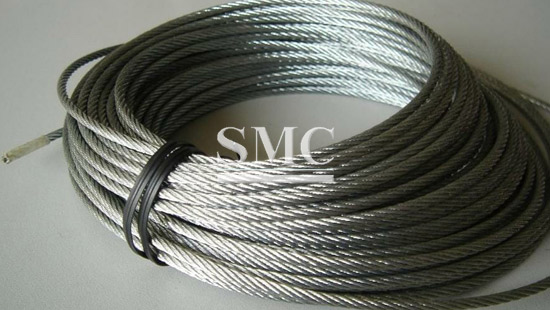

Steel Wire Rope/Steel Cable

    Material: Galvanised, ungalvanised or stainless steel,etc



    Application: Elevator, crane lifting, hanging basket, aircraft, marine, logging

Steel wire rope is used across a wide spectrum of industries for many applications. A steel wire rope is made up of steel wires that are twisted to form strands. The strands are in turn twisted to form steel wire ropes of different sizes, depending on the desired strength of the steel wire rope. Steel wire ropes are consumables which may be discarded when worn out. Steel wire ropes are used in mooring, towing and lifting systems.

If you want to know more about Steel wire rope or Steel wire rope price please feel free to contact us, we will reply you within 24 hours




  • Sizes: From 3mm to 80mm
    Material of Steel Wire Rope: Galvanized and ungalvanized or stainless steel,etc
    Core: IWRC, FC and WSC
    Tensile Strengths: 1960 N/mm2 (EIPS), 2160 N/mm2 (EEIPS), 1570MPA, 1770MPA, 1870MPA

  • Wire Rope range:
    - 9×19S+IWR, 9×19W+IWR, 9×21Fi+ IWR, 9×19S+9×7+Fc
    - 9×19W+9×7+Fc, 9×21Fi+9×7+Fc
    - 8×19S+Fc, 8×19W+Fc, 8×25Fi+Fc
    - IWRC 6×Fi(29)IWRC 6×WS(31)IWRC 6×WS(36)
    - 34×7+Fc, 34×7+IWS, 36×7+Fc, 36×7+IWS
    - 17×7+Fc, 17×7+IWS, 18×7+Fc, 18×7+IWS, 18×19+Fc, 18×19+IWS
    - 18×19S+Fc, 18×19S+IWS, 18×19W+Fc, 18×19W+IWS, etc.









The following abbreviations are commonly used to specify a wire rope:

Abbr.

Description

FC

Fibre core

FSWR

Flexible steel wire rope

FW

Filler wire

IWR

Independent wire rope

IWRC

Independent wire rope core

J

Jute (fibre)

LH

Left hand lay

LL

Lang's lay

NR

Non-rotating

OL

Orcfnary lay

RH

Right hand lay

S

Seale

SF

Seale filler wire

SW

Seale Warrington

SWL

Safe working load

TS

Triangular strand

W

Warrington

WF

Warriflex

WLL

Waiting load limit

WS

Warrington Seale



Different Cross-sectional Views of Special Wire Ropes:

8X19S+FC, 8xl9W+Fc, 8x25FI+Fc

Structure

8xl9S+Fc

8xl9W+Fc

8x25Fi+Fc

Nominal diameter

Weight

Minimum breaking force /kN

mm

kg/100m

Dual Intensity /MPa

Single Intensity /MPa

1180/1770

1320/1620

1370/1770

1570/1770

1570

1620

1770

81)

21.8

25.7

26.5

28.1

30.8

29.4

30.4

33.2

9

27.5

32.5



35.6

38.9

37.3

42

9.5

30.7

36.2

37.3

39.7

43.6

41.5

42.8

46.8

101)

34

40.1

41.3

44

48.1

46

47.5

51.9

111)

41.1

48.6

50

53.2

58.1

55.7

57.4

62.8

12

49

57.8

59.5

63.3

69.2

66.2

68.4

74.7

12.7

54.8

64.7

66.6

70.9

77.5

74.2

76.6

83.6

131)

57.5

67.8

69.8

74.3

81.2

77.7

80.2

87.6

14

66.6

78.7

81

86.1

94.2

90.2

93

102

14.3

69.5

82.1



98.3

15

76.5

90.3

98.9

108

104

117

161)

87

103

106

113

123

118

122

133

17.5

104

123

147

18

110

130

134

142

156

149

154

168

191)

123

145

149

159

173

166

171

187

20

136

161

165

176

192

184

190

207

20.6

144

170

204

221)

165

194

200

213

233

223

230

251





JIS Series of product structure—IWRC 6xFI(29)IWRC 6xWS(31)IWRC 6xWS(36) Breaking load

The implementation of this family of products Q/320202AABL01-2006 Enterprise Standard (JISG3525 1998)



Steel Plug 29 Wire 6 Unit

Steel Western Watts Unit  31 Wire 6 Unit

Steel Western Watts 36 Wire 6 Unit

Structure tag

IWRC 6xFi(29)

IWRC 6xWS(31)

IWRC 6xWS(36)

Nominal diameter

Breaking load kN

weight

mm

Smooth, galvanized

kg/m



B



10

66.2

0.430

11.2

83

0.539

12.5

103

0.672

14

130

0.843

16

169

1.100

18

214

1.390

20

265

1.720

22.4

332

2.160

25

414

2.690

28

519

3.370

30

596

3.870

31.5

657

4.270

33.5

743

4.830

35.5

834

5.420

37.5

931

6.050

40

1060

6.880





34x7+Fc, 34X7+IWS, 36x7+Fc, 36x7+IWS Mechanical Properties

Frame

34x7+Fc

34x7+IWS

36x7+Fc

36x7+IWS

Nominal wire rope diameter

Reference weight

Nominal tensile strength of steel wire rope/MPa

mm

kg/100m

1570

1670

1770

1870

1960





Minimum pull rope breaking/kN



Fiber Core

Steel core

Fiber Core

Steel core

Fiber Core

Steel core

Fiber Core

Steel core

Fiber Core

Steel core

Fiber Core

Steel

16

99.8

110

124

128

132

136

140

144

147

152

155

160

18

126

139

157

162

167

172

177

182

187

193

196

202

20

156

172

193

200

206

212

218

225

230

238

241

249

22

189

208

234

242

249

257

264

272

279

288

292

302

24

225

248

279

288

296

306

314

324

332

343

348

359

26

264

291

327

337

348

359

369

380

389

402

408

421

28

306

337

379

391

403

416

427

441

452

466

473

489

30

351

387

435

449

463

478

491

507

518

535

543

561

32

399

440

495

511

527

544

558

576

590

609

618

638

Packing of Steel Wire Rope:

Shangahi Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization



Service

To meet the entirety of our customers business needs, SMC offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. SMC prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.

Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.

Application of Steel Wire Rope:

- Construction and Offshore rigging

- Marine Industry and Ministry of Defence divisions

- be used for elevator, crane lifting, hanging basket, colliery steel, seaport, and oilfield.
