Alloy Steel bar - Die Steel is mainly used for manufacture of cold-work dies with high abrasive resistance
and small shock load.
Die steel is a steel used to make molds such as cold die, hot forging die, and die-casting die. Molds are the
main processing tools for manufacturing parts in industrial
sectors such as machinery manufacturing, radio instruments, motors, and electrical appliances.
Die steel can be roughly divided into three types: cold-rolled die steel, hot-rolled die steel and plastic die
steel for forging, stamping, cutting, die-casting and so on.
Due to the different use of various molds and complicated working conditions, the steel for molds should have
high hardness, strength, wear resistance, sufficient
toughness, high hardenability and quenching according to the working conditions of the molds they
manufacture. Hard and other process performance. Due to the
different uses and the complicated working conditions, the performance requirements for the steel for the
mold are also different.
Shanghai Metal Corporation is a professional manufacturer and supplier of Die steel with high quality and
reasonable price. If you want to know more about Die
steel products or Die steel price please feel free to contact us, we will reply you within 24 hours.
Features of Die Steel:
- Good mechanical property after heat treatment
- Good through hardenability
- Easy heat treatment procedure
- Low distortion, mirror polishing
- Pattern etching ability
Specification of Die Steel：

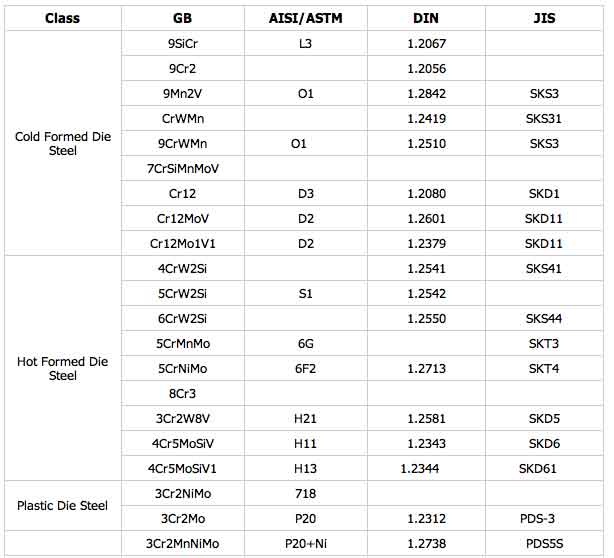

1. Standard Comparison of Die Steel
2. Size Available:
1) Round bar: Dia 16mm-600mm
2) Flat bar: Thickness: 16-500mm;Width: 200-1100mm; Length can be customized.
3. Smelting Process:
2) EAF+LF+VD+ESR Note:EAF=Electric Arc Furnace; LF=Ladle Furnace; VD=Vacuum Degassing; ESR=Eleroslag Remelted.
4. Shaping: Hot forged / Hot rolled
5. Surface condition: Black surface/turning/milling/grinding/polishing
6. Annealing Hardness : HB230 Max Hardness after Q+T(quenching+tempering):47-49HRC

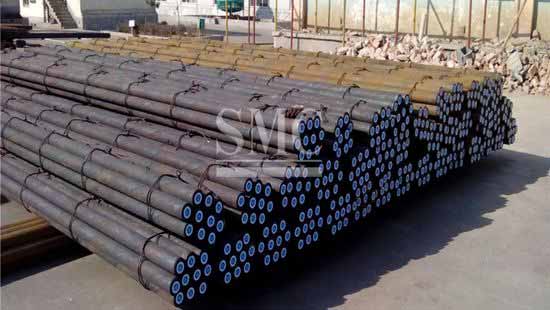

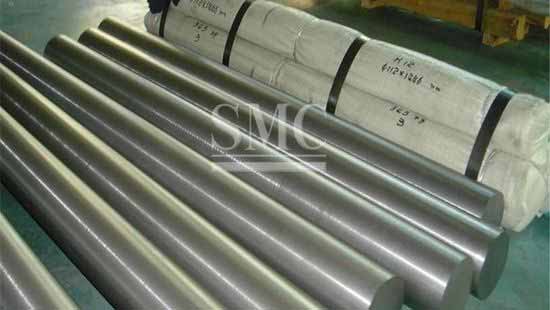

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
Application of Alloy Steel bar Die Steel:
- High precision mirror-polishing plastic mould
- Blanking die, punching pin, thread rolling die, cold heading die, pot clay die and forming die for -thermosetting plastics, all kinds of dies
- To make extrusion die for aluminum alloy and long service life die-casting die for aluminum, -magnesium, zinc, etc
- To make knockout pin/mandrel of hot die
- Large and medium sized hammers forging dies
- Cutting tools and measuring tools, etc
