Thickness: 0.2mm - 150mm

Width: 10mm - 3000mm

Grade: C1020, C1100, C1201, C1220, etc.

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading copper sheet supplier and manufacturer.

The copper plate----one of few metals that doesn’t need to be extracted from ore (i.e., it is directly usable in its natural state).

It has good mechanical properties, good plasticity in the hot state& good plasticity in the cold state, good mechanical behavior, easy fiber brazing and welding, corrosion resistance, but easy to cause corrosion cracking, and cheaper.

Ordinary copper variety. Containing less conductive and thermal conductivity impurities, trace oxygen has little effect on conductivity, heat conduction and processing, but it is easy to cause "hydrogen disease", and should not be processed in high temperature (such as >370 °C) reducing atmosphere (annealing, Welding, etc.) and use.

Copper sheet and plate offer unique properties (noted above) that make them useful in a wide range of applications. Copper plate and sheet offer excellent dimensional control and high crack resistance, which make these materials easy to cut, machine, and otherwise form.

If you want to know more about our copper sheet or brass sheet price please feel free to contact us, we will reply you within 24 hours.

1) Thickness: from 0.2mm to 150mm, all available

2) Width: from 10mm to 3000mm, all available

3) Cu (min): 99.90%

4) Temper: O, 1/4H, 1/2H, H, etc.

5) Grade: C1020, C1100, C1201, C1220, etc.

6) Tensile strength: >20Kgf/mm2

7) Elongation: >15%

Melting Furnace

Extruder Machine

Drawing Mill

Slitting Machine

Bright Annealing Furnace

Cleaning & Pickling Line

1) Pressure vessels

2) Electric power generation

3) Steam condensers

4) Heat exchangers

5) Wear parts for expansion joints

6) Hydraulic bushings

7) Welded tanks

8) Missile components

9) Nuclear materials storage

10) Oil exploration

11) Shipbuilding

12) Offshore platform sheathing

13) Desalination plants

14) Metal casting molds and dies, etc.

Spectrum Test

Grain Size Test

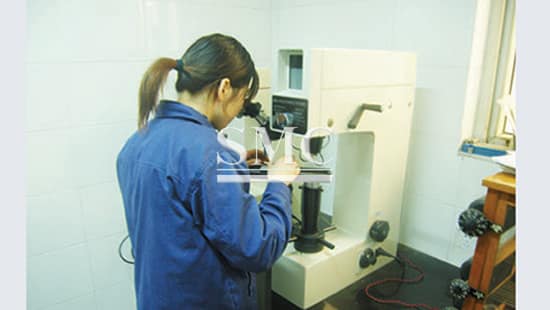

Hardness Test

Tensile Strength Test

Elongation Test

Parameters of Copper Sheet / Plate:

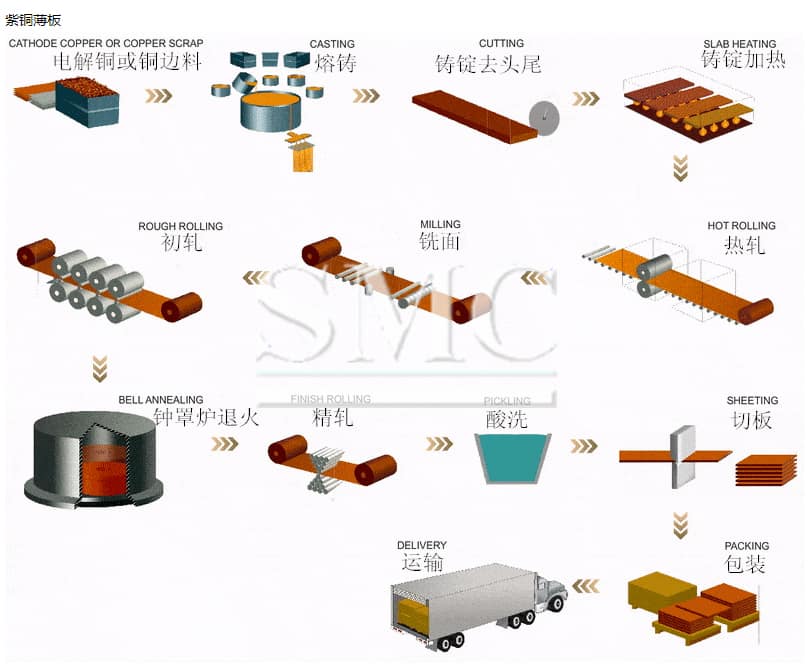

Manufacturing of Copper Sheet / Plate

Packaging of Copper Sheet / Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Q1.How long does sample preparation take?

A: Standard small‑size samples take 3‑7 working days. Custom‑dimension samples require extra processing time up to 10 working days.

Q2.What information do you need for an accurate quotation?

A: Please provide grade, temper, exact thickness × width × length, total weight, required quantity, processing requirement (cutting / drilling), destination port and trade term.

Q3.What is your MOQ for copper sheet / plate?

A: Our minimum order quantity is 1000 kg. Small trial orders under MOQ can also be accepted with additional processing charge.

Q4.What certifications or test documents can you provide?

A: Mill Test Report(MTR) including chemical composition and mechanical property data can be supplied for each batch. Third‑party inspection is acceptable before shipment.

Q5.What grade should I select for welding or brazing work?

A: C1220(DHP deoxidized copper) is recommended for brazing and welding jobs, as low phosphorus content avoids hydrogen‑related cracking risk. C1100 is not suitable for high‑temperature reducing‑atmosphere welding.

Q6.What difference exists between hot‑rolled copper plate and cold‑rolled copper sheet?

A: Hot‑rolled plate covers thicker gauges, lower dimensional precision and rough surface, for heavy‑duty structural parts. Cold‑rolled sheet has thinner thickness range, tighter tolerance and smooth surface for stamping, busbar blanks and decorative application
