Grade: C17200, C17300, C17500, C17510

Thickness: 3mm - 100mm

Width: Max 1000mm

Product Detail | Technical Information | Packaging | More

Product Detail1

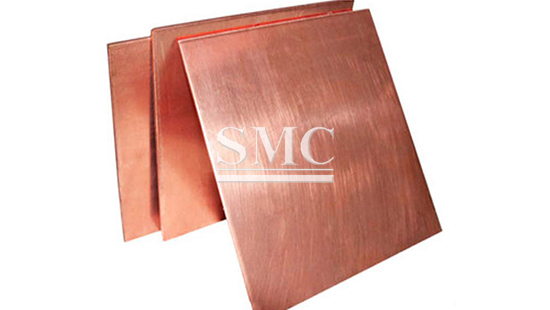

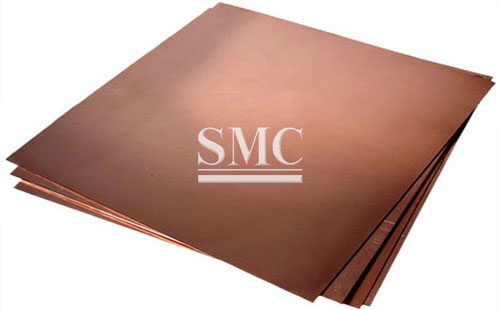

Shanghai Metal Corporation is a leading beryllium copper sheet supplier and manufacturer.

Beryllium copper (BeCu), also known as copper beryllium (CuBe), beryllium bronze and spring copper, is a copper alloy with 0.5—3% beryllium and sometimes other elements. Beryllium copper combines high strength with non-magnetic and non-sparking qualities. It has excellent metalworking, forming and machining properties. It has many specialized applications in tools for hazardous environments, musical instruments, precision measurement devices, bullets, and aerospace.

Beryllium alloys present a toxic inhalation hazard during manufacture. Beryllium copper is a ductile, weldable, and machinable alloy. Like pure copper, it is resistant to non-oxidizing acids like hydrochloric acid and carbonic acid, to plastic decomposition products, to abrasive wear, and to galling. It can be heat-treated for increased strength, durability, and electrical conductivity. Beryllium copper attains the greatest strength of any copper-based alloy.

If you want to know more about our beryllium copper sheet or beryllium copper strip please feel free to contact us, we will reply you within 24 hours.

1) Grade: C17200, C1720, C17000, C17300, C17500, C17510, Qbe2,Qbe1.9, Qbe1.7, Qbe0.6-2.5, Qbe0.4-1.8, Qbe0.3-1.5, Qbe1.9-0.1

2) Thickness: 3mm - 100mm

3) Width: ≤1000mm

4) Length:≤2000mmm

5) Temper: TB00, TD01-04, TF00, TH01-04, TM00-08, or according to requirements

1) Rally intensity

Beryllium copper maximum tensile strength can be achieved 140kg/mm2, through heat treatment, so the role may be able to tolerate high tension bending the flexible material.

2) High thermal conductivity

Beryllium copper in the range of high-temperature materials in the field of 0.25Cal / (cm-sec-C) wide and high temperature performance.

3) Good shape

Beryllium copper solution through the annealing process so that it softened, it is possible to create complex shapes, and you can go through heat treatment and access to the highest mechanical properties.

4) Anti-Corrosion

Beryllium copper has a good anti-corrosion, and is almost comparable to Yeung copper-nickel alloy.

Melting Furnace

Extruder Machine

Drawing Mill

Slitting Machine

Bright Annealing Furnace

Cleaning & Pickling Line

1) Oilfield tools

2) Aerospace landing gears

3) Robotic welding

4) Mold making

5) Musical instruments

6) Precision measurement devices, etc.

Spectrum Test

Grain Size Test

Hardness Test

Tensile Strength Test

Elongation Test

Manufacturing of Beryllium Copper Sheet / Plate

Packaging of Beryllium Copper Sheet / Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Q1.How long does sample preparation take?

A: Samples take 3‑7 working days.

Q2.What information do you need for a custom quotation?

A: Please provide alloy grade, thickness, width, length, temper, quantity and special requirements (cut‑to‑size, surface condition).

Q3.What is the MOQ and production lead time?

A: MOQ depends on specifications. Standard orders:15‑25 working days; customized orders:25‑40 working days.

Q4.What quality standards does the product meet?

A: Complies with ASTM B196, AMS 4533, EN 12163 and GB/T 2040. MTC will be provided for each batch.

Q5.What is the difference between C17200 and C17500 beryllium copper plate?

A: C17200 (2%Be) features high hardness & elasticity, widely for springs, molds and measuring parts. C17500 (0.5%Be‑Co) owns better thermal‑conductivity, mainly for welding electrodes and oil‑field components.

Q6.What key parameters should I confirm before selecting beryllium copper plate?

A: Confirm alloy grade, temper status, required hardness, dimension tolerance and working‑environment (corrosion, magnetic‑free requirement).

Q7.Can you do aging heat‑treatment for beryllium copper plate?

A: Yes. We can supply material in soft solution‑treated condition or pre‑aged hardened temper according to customer requirements.
