Grade: 1000, 3000, 5000 series

Thickness: 0.2mm - 4mm

Width: 600mm - 1800mm (customizable)

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading Aluminum Roofing Sheet manufacturer and supplier.

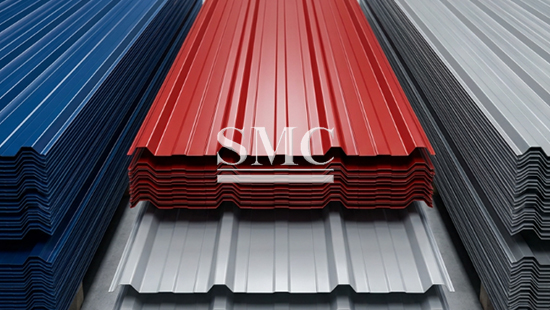

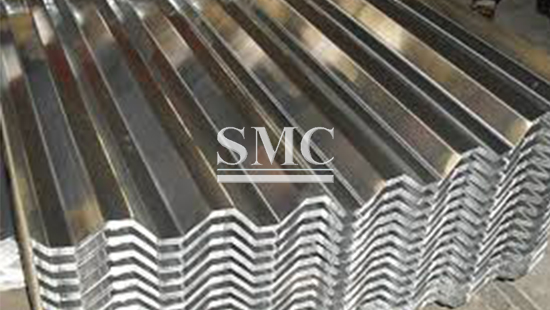

Aluminum Roofing Sheet (also known as corrugated aluminum sheet) is a lightweight, durable roofing and cladding material formed from aluminum alloy coils through a roll-forming process. It is mainly used in airport terminals, aircraft maintenance hangars, railway stations, stadiums, exhibition centers, warehouses, hospitals, supermarkets, and other commercial and industrial buildings. Its corrugated profile provides structural rigidity while keeping the weight to approximately one-third of steel roofing, reducing the load on building structures and allowing direct installation over most existing roofing materials. The aluminum surface naturally forms a protective oxide layer and can be further treated with anodizing or color coating, giving the sheet excellent corrosion resistance and a service life of up to 50 years, even in coastal or humid environments.

If you want to know more about our aluminum products or Aluminum Roofing Sheet price please feel free to contact us, we will reply you within 24 hours.

1.Length: Customized per customer requirement

2.Temper: H24, H32 (H1X, H2X available)

3.Surface Treatment: Mill finish, anodized, powder coated, color coated

4.Profile Types: Corrugated, IBR, V-Beam; custom profiles available

5.Certification: DIN / AAMA / AS/NZS / CHINAGB

1.Lightweight & Cost-Effective: Aluminum Roofing Sheet weighs only about one-third of steel roofing of the same thickness, significantly reducing structural load and installation labor costs. The material’s low density and high strength-to-weight ratio make it an economical choice for large-span roofing projects.

2.Excellent Corrosion Resistance: The natural oxide film on aluminum, combined with optional anodizing or color coating, provides strong resistance to moisture, salt spray, acid rain, and industrial pollutants, ensuring stable performance in coastal, humid, and chemically exposed environments without rusting.

3.Long Service Life: Corrugated aluminum sheet can achieve a service life of up to 50 years under normal conditions, owing to its corrosion resistance, UV stability, and resistance to thermal cycling, making it a low-maintenance roofing solution for long-term applications.

4.Easy Installation & Formability: The corrugated profile allows direct installation over most existing roofing materials, with simple overlapping and fastening. Aluminum’s high ductility enables easy cutting, bending, and shaping on site, accommodating various architectural designs and irregular roof geometries.

1.Industrial & Commercial Roofing: Suitable for warehouses, factories, exhibition centers, supermarkets, and commercial facilities, where lightweight construction, fast installation, and long-term weather resistance are required.

2.Transportation Hub Roofing: Used in airport terminals, aircraft maintenance hangars, railway stations, and bus terminals, where large-span roofing, corrosion resistance, and aesthetic appearance are essential.

Specification table for aluminum roofing sheet
Alloy	1050,1060,1100,1200,3003,3004,3105,5005,5052,8011
Temper	O,H12,H14,H16,H18,H22,H24,H32
Thickness	0.2mm-4mm
Width	600-1800mm
Length	Coil or According to customer's requirement.
Color	The coating including liquid PVDF and Polyester,you can choose colour from our colour chart, or RAL, PANTONE, or provide colour sample to name the colour.
Coating type	PE, PVDF

Dimension Remarks

Standard thickness range: 0.3 mm – 1.5 mm. Standard width before corrugation: 600 mm – 1500 mm; width after corrugation depends on profile type. Length is customized per project requirement. Alloy grades: 1000, 3000, 5000 series (AA3004, 3005, 5052). Temper: H24, H32. Corrugation pitch and depth are adjustable based on profile design. Dimensional tolerance: ±0.03 mm for thickness, ±2 mm for width. Custom profiles, colors, and coating specifications are available upon request.

Production Process Flow

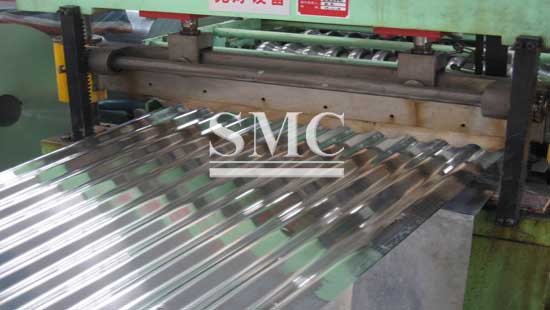

Aluminum coil casting → Rolling to target thickness → Annealing / tempering (H24/H32) → Surface treatment (mill finish / anodizing / color coating) → Roll forming (corrugation) → Cutting to length → Dimension and profile inspection → Surface quality check → Marking and packing.

Standard Packaging

Each sheet is separated by protective film or kraft paper to prevent surface scratches. Sheets are stacked in bundles, wrapped with PE film, and secured with steel or plastic straps. Bundles are placed on fumigated wooden pallets or in wooden crates for export shipment. Clear labels are tagged on the outside for easy identification.

Shipping

We support FCL and LCL sea freight, air freight, and express delivery depending on order quantity and destination. Shipping costs are calculated based on cargo volume, gross weight, destination, and selected transportation method.

Lead Time

Samples: 7–15 working days

Standard orders: 25–35 working days

Customized orders: 35–50 working days

Q1：What is the MOQ for Aluminum Roofing Sheet?

A：The MOQ is 1×20GP container (approximately 10–15 tons depending on thickness and width). Trial orders or LCL shipments can be negotiated for first-time cooperation.

Q2：Can you customize the thickness, width, and color?

A：Yes. We support OEM production with custom thickness (0.3–1.5 mm), width (600–1500 mm), length, corrugation profile, and color coating. Provide your drawing or specification, and we will evaluate feasibility and provide a quotation within 24 hours.

Q3：What is the lead time for standard and customized orders?

A：Standard sizes: 25–35 working days after deposit. Customized orders: 35–50 working days. Sample orders: 7–15 working days.

Q4：What is the difference between corrugated aluminum sheet and aluminum IBR sheet?

A：Corrugated aluminum sheet uses a wave-shaped profile suitable for traditional roofing and cladding applications. Aluminum IBR sheet (Inverted Box Rib) features a trapezoidal profile with a wider flat surface and higher structural strength, making it suitable for large-span industrial and commercial roofing.

Q5：What surface treatment options are available?

A：Options include mill finish, anodizing, powder coating, and color coating. Anodizing thickness is typically 10–15 μm; powder coating thickness is 60–80 μm. Custom colors are available based on your samples.

Q6：What certifications or quality standards do you provide?

A：We provide material certificates, dimensional inspection reports, and coating test reports. Products can be manufactured to comply with DIN, AAMA, AS/NZS, and CHINAGB standards upon request.
