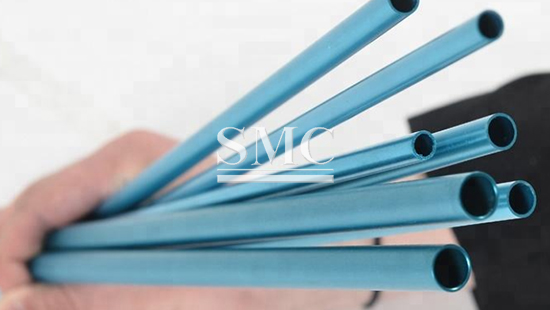

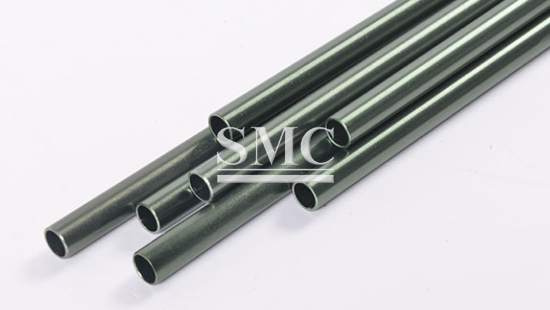

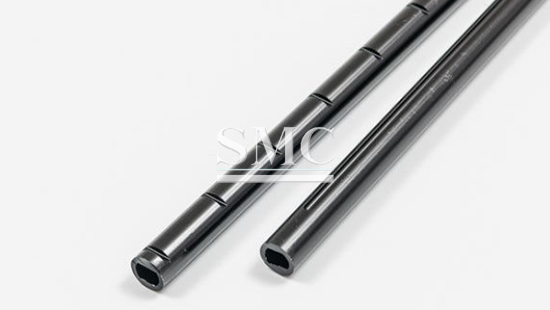

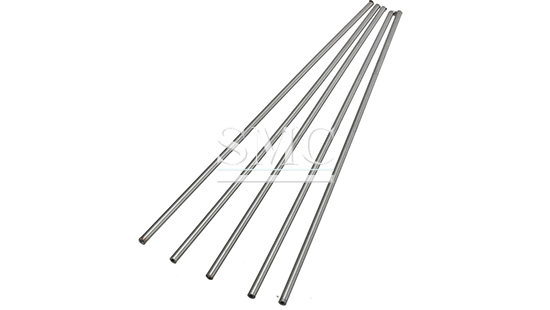

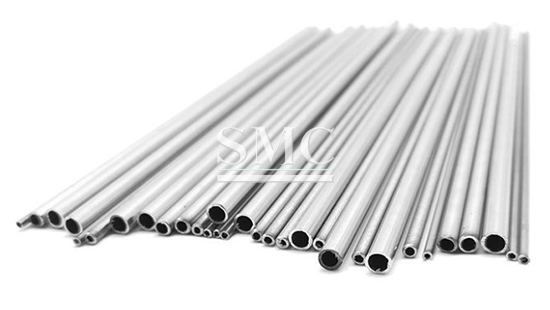

Aluminum Capillary Tube
Grade: 1050, 1060, 1070, 3003, 3103, 6063, etc.
Outer diameter: 0.5mm - 20mm
Wall thickness: 0.06mm - 2.5mm
Shanghai Metal Corporation is a leading aluminum capillary tube manufacturer and supplier.
Aluminum capillary tube is a fine-walled tubing with a small outer diameter and a narrow inner diameter, typically ranging from 0.5 mm to 10 mm OD and inner diameters as small as 0.2 mm. It functions as a precision flow-control component in refrigeration systems, serving as an expansion device that precisely controls refrigerant flow and pressure drop in refrigerators, air conditioners, and heat pumps. Manufactured from high-purity aluminum alloys such as 1050, 1060, 1070, 3003, and 3103, aluminum capillary tubes offer a density only one-third that of copper, significantly reducing overall system weight while providing excellent thermal conductivity of up to 230 W/m·K. The tube’s seamless construction and precisely controlled inner diameter ensure stable flow rates and reliable pressure regulation in critical fluid and refrigerant applications. Available in both straight lengths and coiled forms, with mill finish, anodized, or sand-blasted surfaces.
If you want to know more about our aluminum capillary tubes, aluminum tubes, or aluminum products, please feel free to contact us. We will reply to you within 24 hours.
-
4.Superior Machinability & Flexibility: Aluminum capillary tubes exhibit excellent formability and bendability, suitable for flaring, punching, U-bending, and end sealing, compatible with diverse connection methods and automated assembly processes.
5.Outstanding Corrosion Resistance: The natural oxide film, enhanced with anodizing or tin coating, ensures long-term operation even under salt spray, high humidity, or elevated temperature conditions, ideal for outdoor condensing units and pharmaceutical cold chains.
-
|
Regular Specification of Aluminum Capillary Tube (Aluminum Hollow Wire) |
|||||||
|
Wall Thickness Range |
Out Diameter Range |
||||||
|
inch |
mm |
inch |
mm |
||||
|
min. |
max. |
min. |
max. |
min. |
max. |
min. |
max. |
|
0.099 |
0.788 |
2.5 |
20 |
0.008 |
0.788 |
0.2 |
2.5 |
Dimension Remarks
Standard aluminum capillary tube range: OD 0.5–10 mm (custom up to 20 mm), ID 0.3–9.8 mm, wall thickness 0.06–2.5 mm. Common alloys include 1050, 1060, 1070, 3003, and 3103; tempers include O, H12–H18. Straight lengths range from 100 mm to 12,000 mm; coil weight ranges from 5 kg to 50 kg. OD tolerance is ±0.01 mm for precision grades or ±1% for general grades; wall thickness tolerance is ±0.005 mm; precision cut length tolerance is ±0.05 mm. Surface finishes include mill finish, anodized, polished, tinned, and sand-blasted. Custom bending, flaring, end capping, and cut-to-length services are available upon request.
Production Process Flow
Aluminum billet casting → Extrusion (tube blank) → Multi-pass cold drawing (with inner/outer lubrication) → Intermediate annealing → Final sizing / precision drawing → Internal cleaning & oxide film control → Precision cutting → Surface treatment (anodizing, tinning, polishing, etc.) → Quality inspection → Marking & packing.

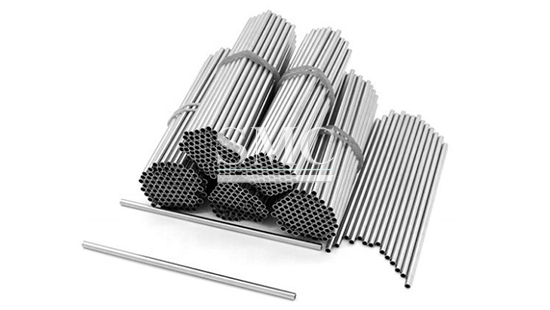

Standard Packaging
Aluminum capillary tubes are packed in seaworthy wooden pallets or wooden cases to ensure protection during international transportation. Tube ends are fitted with protective plastic caps to prevent damage. Plastic sheets are wrapped around the tubes to shield them from moisture, and tube bundles are further wrapped with polythene and secured with strips. Each package is labeled according to customer requirements, with clear markings for easy identification of product ID and quality information. Packaging can be customized for automated production lines.
Shipping
We support FCL and LCL sea freight, air freight, and express delivery depending on order quantity and destination. Available trade terms include EXW, FOB, and CIF. Loading port: Qingdao or Shanghai. Payment terms: T/T (30% deposit, 70% balance against B/L copy) or L/C.
Lead Time
Samples: 3–7 working days
Ready stock: 5–7 working days
Future goods: 20–25 working days
Customized orders: 25–40 working days
Q1: How long does sample preparation take?
A: Standard samples can be prepared within 3–7 working days. Customized samples with specific dimensions or surface treatments require 7–15 working days depending on specifications.
Q2: What information do you need for a custom quotation?
A: To provide an accurate quotation, please specify: outer diameter, inner diameter or wall thickness, length, alloy grade, temper, surface finish, quantity, and any special requirements such as coiling or custom cutting.
Q3: What is the MOQ and production lead time?
A: The MOQ is 1 ton. For ready stock items, delivery within 5–7 working days. For future goods, production takes 20–25 working days. Customized orders require 25–40 working days.
Q4: How long does customization take?
A: Customization timelines vary by requirement: dimension customization requires tooling preparation (5–10 working days); surface treatment customization requires sample approval (7–10 working days); custom coiling or cutting requires 5–7 working days. Total production time for customized orders is 25–40 working days after order confirmation.
Q5: What is the difference between aluminum and copper capillary tubes?
A: Aluminum capillary tubes offer a density approximately one-third that of copper, significantly reducing system weight. Aluminum also provides excellent thermal conductivity (up to 230 W/m·K) and natural corrosion resistance. While copper has higher thermal conductivity and better solderability, aluminum tubes are more cost-effective and are increasingly used in HVAC&R systems where weight reduction and cost savings are priorities.
Q6: Can you cut tubes to specific lengths?
A: Yes. We provide precision cutting services with length tolerances of ±0.05 mm. Tubes can be supplied in straight lengths, coil form, or custom configurations according to customer drawings or specific project requirements.
Q7: How do you prevent damage during transportation?
A: Tube ends are protected with plastic caps, tubes are wrapped in plastic sheets to prevent moisture ingress, and bundles are further wrapped with polythene and secured with strips. All packages are placed on fumigated wooden pallets or in wooden cases for seaworthy export.
