PTFE Tube/ Teflon Pipe
Outer Diameter: 1mm--1200mm
Wall thickness: 0.1~500mm
Apparent density: 2.10-2.30 g/cm3
Shanghai Metal Corporation is a leading PTFE tube(Teflon tube) manufacturer and supplier.
There are three kind of Teflon tube,OD 1mm-25 mm, wall thickness:0.1mm-2.5mm tube, which is made of imported dispersed PTFE resin and extruded by plunger paste;OD 25mm-200mm,wall thickness: 1.5mm-8mm tube, which is made of suspended PTFE resin by pressing and processing; OD 25mm-1200mm, wall thickness 5mm-500mm, which is mould pressing.
If you want to know more about our PTFE tube (Teflon tube) price please feel free to contact us, we will reply you within 24 hours.
-
1. Outer Diameter: 1mm--1200mm
2. Wall thickness: 0.1~500mm
3. Apparent density: 2.10-2.30 g/cm3
4. Color: white, red, blue or black
5. Length: according to your requirement
-
-
-
1. The operating temperature range is very wide (from -200 ℃ to +260 ℃)
2. Basically, it has corrosion resistance to all chemical substances except some fluoride and alkaline metal liquid.
3. Excellent mechanical properties include aging resistance, especially for bending and swing applications.
-
1. Advanced medical devices
2. High-temperature industrial equipment
3. Ground water monitoring
4. Environmental monitoring equipment
-

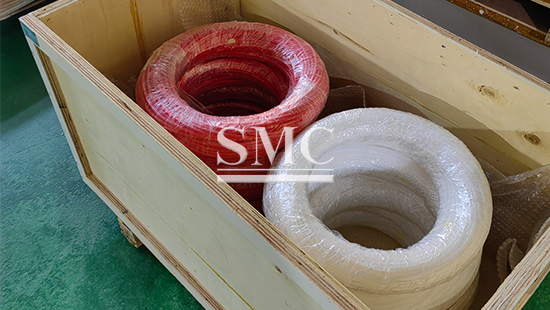

Packaging of PTFE Tube/Teflon Pipe:
Wooden box:.
Q1.How long does sample preparation take?
A: Samples take 3–7 working days.
Q2.What information do you need for a custom quotation?
A: Please provide outer diameter, wall thickness, length, quantity and application environment.
Q3.What is the MOQ and production lead time?
A: MOQ depends on specifications. Standard orders:15–25 working days; customized orders:25–40 working days.
Q4.What is the difference between molded, ram-extruded and extruded PTFE tubes?
A: Molded tube: large OD 25–500mm, thick wall 5–30mm, for heavy-duty corrosion resistance.
Ram-extruded tube: OD 18–400mm, wall 2–15mm, suitable for medium size pipeline.
Extruded tube: small OD 1–25mm, thin wall 0.1–0.25mm, for precision instrument tubing.
Q5.What technical indicators can your PTFE tube guarantee?
A: Density: 2.10~2.30 g/cm³; Tensile strength ≥25 MPa; Elongation at break ≥250%.
