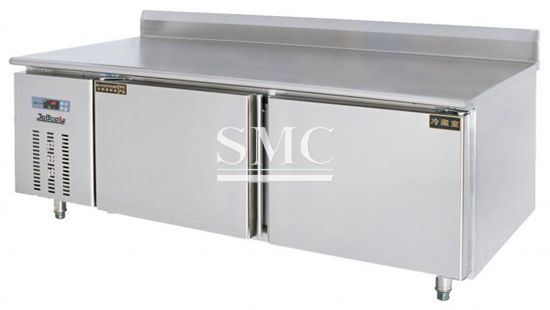

VCM Color Plates For Refrigerator Panel

    Grade: SGCC, DX51D, ASTM A653, EN10142, S350GD, etc.

    Thickness: 0.17mm - 1.00mm

    Base Material: HDGI, ALUZINC, CR

    Width: ≤1250mm

    Zinc Coating: 60g/㎡ - 200g/㎡

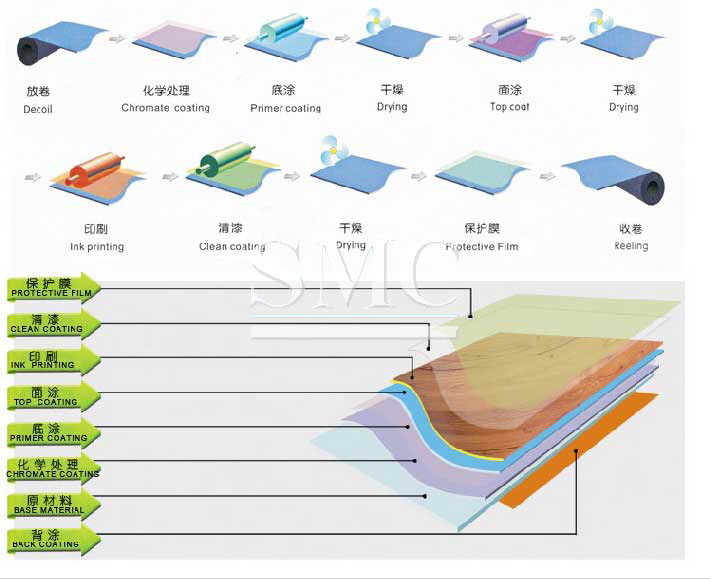

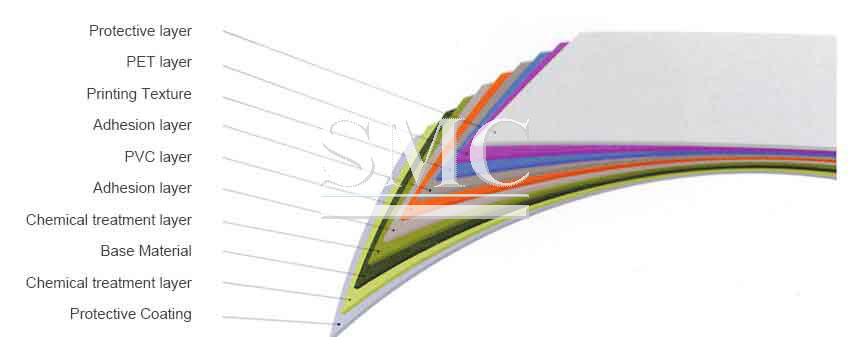

VCM metal sheet  is a kind of film laminated metal sheet, based on metal sheet and coated with light or matt PVC film.

Base metal  0.3mm - 1.2mm thickness of cold rolled steel, galvanized steel, or aluminum alloy sheet and other metal sheets.

Category: Light VCM and Matt VCM

Light VCM

Performance advantage have colorful surface patterns, have high decorative effect ,have a high gloss surface, with wear-resistant, corrosion-resistant, oil-resistant, easy-wash and good processability properties

Matt VCM

Performance advantages matt surface with wear-resistant, corrosion-resistant, high simulation effect and high decorative properties.

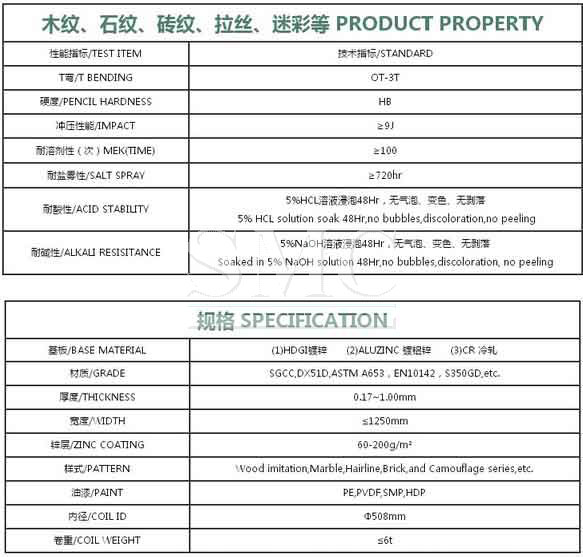

Main technical parameters:

BASE METAL: According to customers’ requests:

COAT FILM: 0.15µm - 0.18µm thickness of PVC film

PROTECTIVE FILM: Self-adhesive protective film

BACK COAT: 3m - 10 um, and can paint conductive back coating according to customers’ requests


PLATE PACK: according to customers’ request, Width≤1350 mm, Length≤4000mm

COIL PACK: Width≤1350 mm,  N.W./COIL ≤5 T,  Inner Diameter:φ510 mm

Packaging of VCM Color Plates

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
