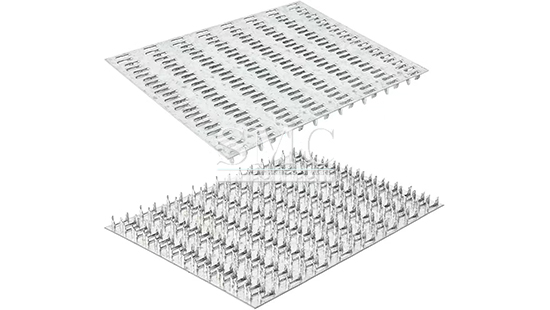

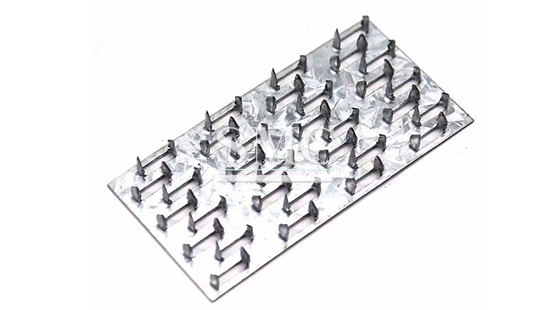

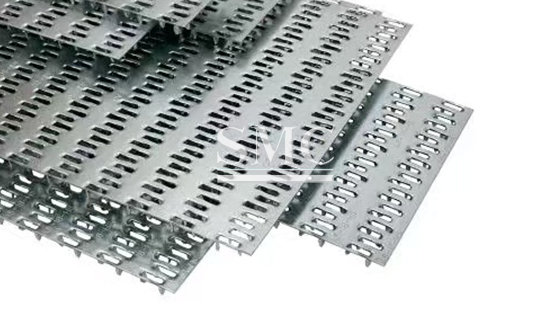

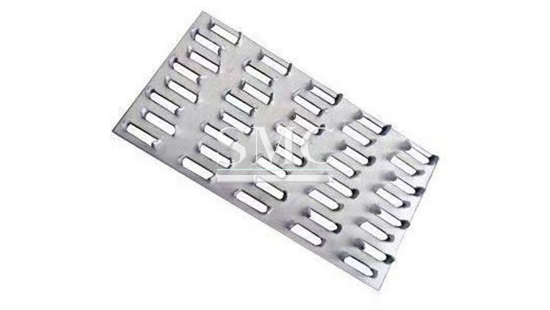

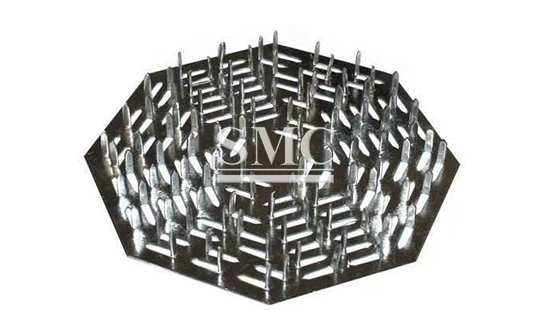

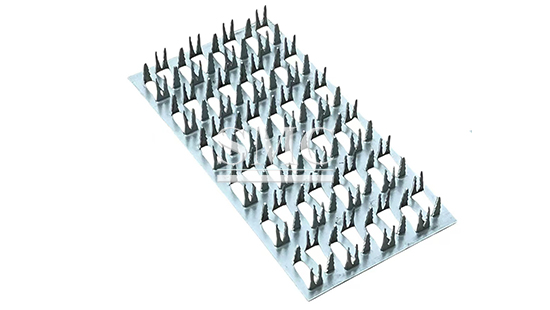

Truss Nail Plate
Material: Galvanized Steel
Surface Finish: Zinc Plated/Nickle plated/H.D.G/Customizable
Width: 25mm-300mm(1" ~ 12")
Length: 50mm-600mm(2" ~ 24")
Thickness: 1mm-2mm(0.035" ~ 0.08")
Tooth Length: 8mm-10mm(0.3" ~ 0.4")
Shanghai Metal Corporation is a professional manufacturer and supplier of Truss Nail Plate Bolt with high quality and reasonable price.

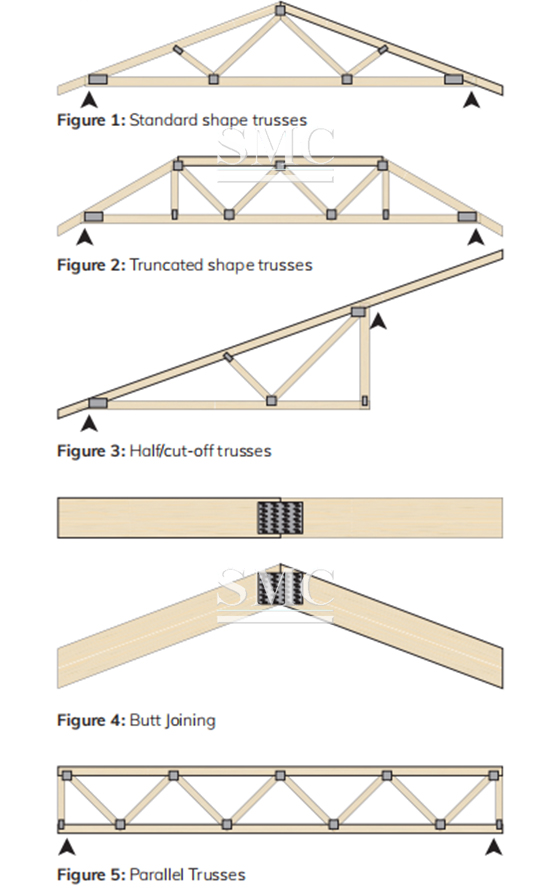

A truss connector plate, or gang plate, is a kind of tie. Truss plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel to create teeth on one side. The teeth are embedded in and hold the wooden frame components to the plate and each other. Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using tools such as a hydraulic press or a roller. As the plate is pressed in, the teeth are all driven into the wood fibers simultaneously, and the compression between adjacent teeth reduces the tendency of the wood to split.
If you want to know more about Truss Nail Plate price please feel free to contact us, we will reply you within 24 hours.
Technical Information of Truss Nail Plate:
A truss connector plate is a high-performance structural fastener manufactured from light-gauge galvanized steel (typically 16-20 Gauge), featuring integral teeth punched on one side. These plates are designed to connect prefabricated wood trusses by being mechanically pressed into the lumber joints using hydraulic equipment. They offer exceptional grip and load-transfer capabilities, reducing the risk of wood splitting while ensuring high construction efficiency. Key global standards include ANSI/TPI 1 (USA), EN 14545 (Europe), and AS 1720.1 (Australia), ensuring reliability in structural integrity and corrosion resistance for modern timber engineering.
Packaging of Truss Nail Plate:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
