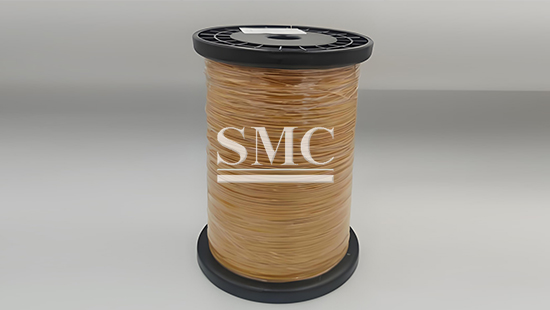

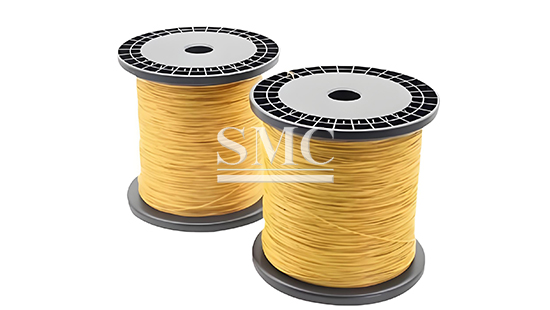

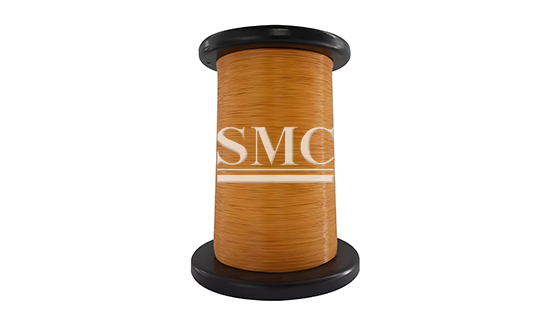

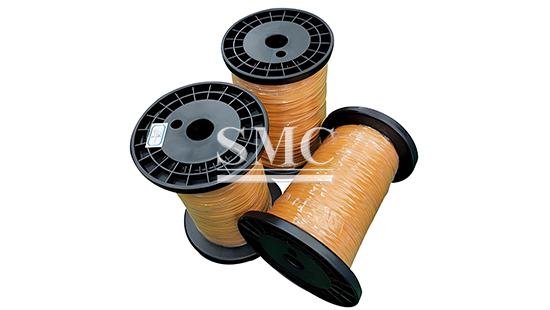

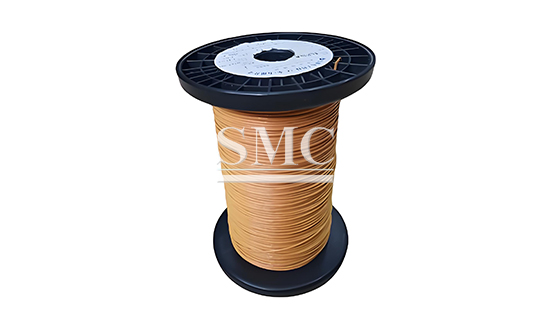

Triple Insulated Wire
Conductor: Bare Copper,Tinned Copper,Enamelled Copper Wire,
Insulation: PFA,ETFE,PET+PA
Color: BlackPink/Red/Orange/Yellow/Green/Blue/Gray/Transparent/White/Purple/Brown etc.
Voltage 1410V peak
Temperature: Maximum 180℃
Break Down Rating：≥ 6000,7000,8000,9000,10000,13000V
If you want to know more about Triple Insulated Wire, please feel free to contact us, and we will reply to you within 24 hours.
Packaging of Triple Insulated Wire:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2)Customization
Q1.What information do you need for a custom quotation?
A: We need the conductor diameter (e.g., 0.3mm), thermal class (Class B or Class F), total outer diameter requirements, target application, and order quantity.
Q2.What is the MOQ and production lead time?
A: The Minimum Order Quantity (MOQ) is typically 100 kg per size. Standard lead time is 10-15 working days.
Q3.Do I need to mechanically strip the insulation before soldering?
A: No. Our Triple Insulated Wire is designed for direct solderability. You can dip it directly into a solder bath at 420°C - 450°C for 2-4 seconds, and the insulation will melt away
cleanly.
Q4.Can TIW completely replace margin tape and insulating paper?
A: Yes. Because TIW meets the safety standards for reinforced insulation (such as IEC 60950), you can eliminate margin tape and interlayer tape, allowing primary and secondary
wires to be wound adjacent to each other.
Q5.Does the wire withstand high-speed automated winding?
A: Absolutely. The outer polymer layer is highly abrasion-resistant and features a low friction coefficient, specifically engineered to endure the mechanical stress of high-speed CNC winding machines without cracking.
