Thermostatic Bimetal

Thickness: 0.05-3.0mm

Product Detail | Technical Information

Product Detail1

Shanghai Metal Corporation is a leading Thermostatic bimetal manufacturer and supplier.

Shanghai Metal Corporation is a enterprise engaging in manufacturing,developing and marketing bimetal and component, electric contact material, battery material, high precision thin strip and other kinds of bonding metal and stamping component.

If you have any other questions about Thermostatic bimetal, please feel free to contact us, we’ll reply you within 24 hours.

Thickness: 0.05-3.0mm
Width: 1-150mm

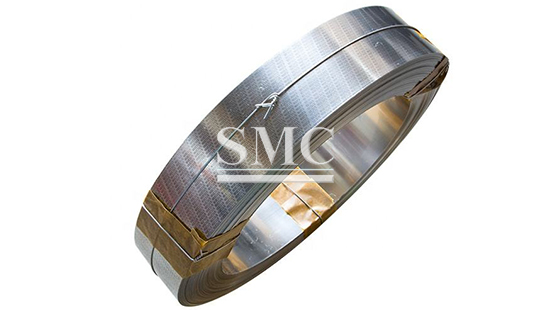

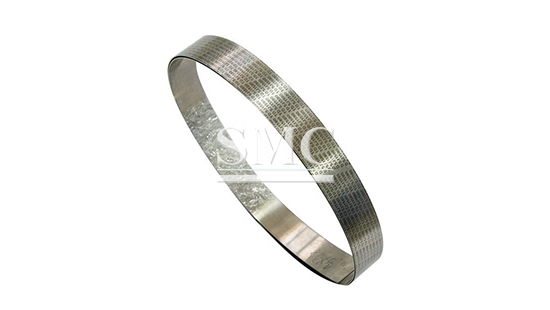

Inner diameter: 300mm, 350mm, 400mm
Active side of the bimetal: Mn72Cu18Ni10,Ni22Cr3, Ni20Mn6, Ni18Cr11, Ni19Cr2, Ni25Cr8, etc
Passive side of the bimetal: Ni36Fe, Ni39Fe, Ni40Fe,Ni42Fe, Ni45Fe and Ni50Fe, etc
Intermediate layer: pure nickel, pure copper (red copper, oxygen-free copper), and zirconium copper, etc

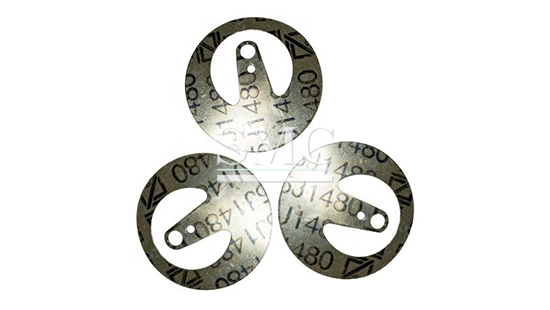

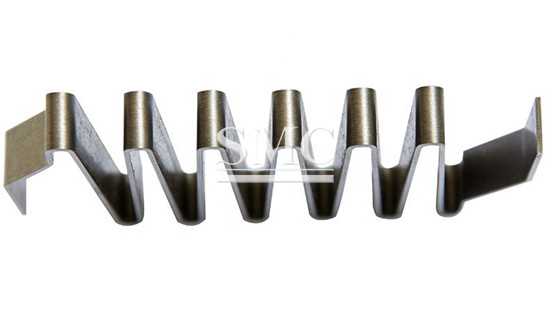

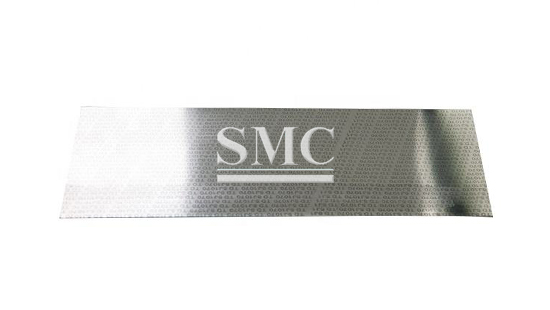

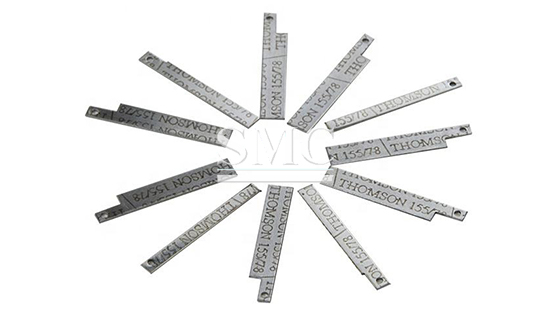

Thermostatic Bimetal is composed of two or more metals or alloys with different expansion coefficients firmly combined along the whole contact surface.
It has a layer head metal composite functional material whose shape changes at changing temperature.
The amount in curvature the Thermostatic Bimetal experiences is proportional to the temperature change.
It is also predictable and it is repeatable.

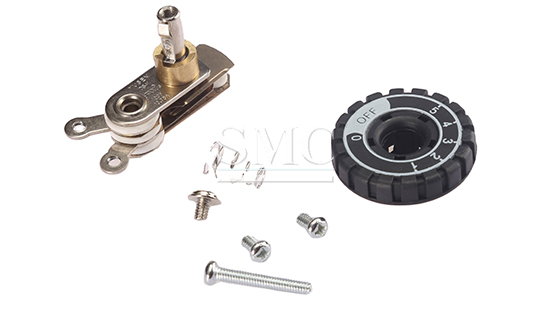

1.Home appliance
2.Vehicles
3.HVAC
4.Electrical

Thickness (t)		Width (w)
Dimension	Tolerance	Dimension	Tolerance
t≤0.100	±0.004	1≤w≤12	±0.08
0.100＜t≤0.250	±0.006	12＜w≤25	±0.10
0.250＜t≤0.380	±0.010	25＜w≤75	±0.20
0.380＜t≤0.510	±0.013	w＞75	±0.25
t＞0.51	±2.5%	/	/
