Shanghai Metal Corporation is a leading aluminium solar panel frame manufacturer and supplier.

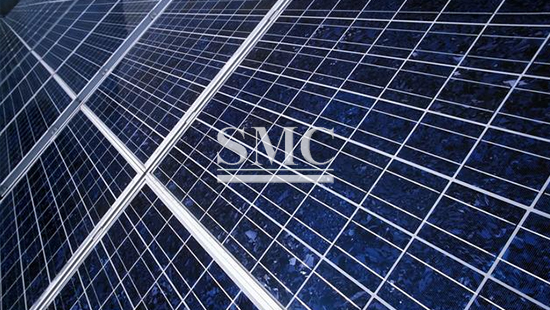

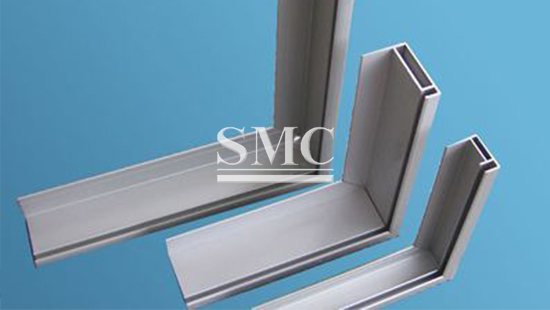

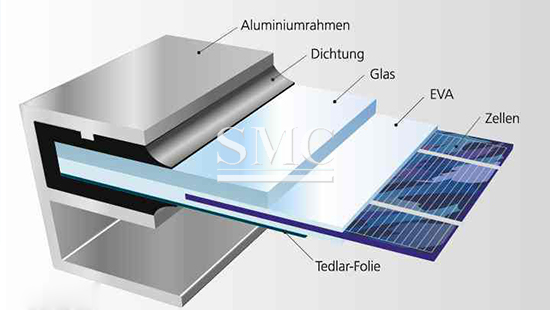

Aluminium Solar Panel Frame, also known as Extruded Aluminium Frame, hugging the glass covering on top and the back-sheet at the bottom, has been important, though often ignored component of a solar panel. Solar Photovoltaic (PV) modules generate electricity from sunlight use of photovoltaic effects of the sun battery semiconductor materials, which can be fed into the mains electricity supply of a building or sold to the public electricity grid. Reducing the need for fossil fuel generation, the growing grid-connected solar PV sector across the globe is helping create jobs, enabling families and businesses to save money, and cut greenhouse emissions. Aluminium solar panel frame and mounting bracket are used to seal and fix solar battery components. They provide the structural stability for the overall combination of glass, EVA encapsulates, the cell and the back sheet. Enhancing components strong support and increasing the battery service life.
1) Alloy: 6063/6061/6082/6060
2) Type: 90°-Angle/45°-Angle or per customers’ requests
3) Weight: 0.552 - 0.701kg/m
4) Temper: T5 - T6
5) Surface: mill finish, anodized, sand blasting, electrophoresis, powder coating, wood colour, etc.
6) Certification: ISO9001/14001
7) Quality standard: GB/5237-2008
1) We can support the aluminum solar module frame according your design drawings and samples
2) Many other custom made sizes available, such as 45*35mm, 60*35mm, 46*40mm, 46*50mm, etc.
3) New model design ability to meet customer's various applications
4) Flexible and modular construction which can be easily modified and re-used at any time
Technical of Solar Panel Aluminum Extrusion
Packaging of Solar Panel Aluminum Extrusion
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
