Alloy：8011-O

Structure：PET+AL

Inner Diameter：76mm or 152mm

Width: 60-950mm

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading PET Laminated Aluminum Foil manufacturer and supplier.

PET Laminated Aluminum Foil is composite material laminated by 8011‑O temper aluminum foil and PET polyester film. It combines the outstanding barrier performance of aluminum and high mechanical strength of PET substrate. The composite structure features excellent puncture‑resistance, hard to be pierced under heavy‑load transportation, overcoming the disadvantage that pure aluminum foil is easy to tear. With extremely low water vapor and air permeability, it can well preserve original quality of packaged goods. Custom logo and color printing service are supported for branding requirement. Our product portfolio covers aluminum foil, household aluminum foil, laminated aluminum foil and non‑stick aluminum foil with stable quality and competitive price.

If you want to know more about our PET Laminated Aluminum Foil price, please feel free to contact us, we will reply you within 24 hours.

1.Material composition: aluminum foil layer + PET polyester film layer, bonded by dry‑laminating adhesive.

2.Product structure: Two‑layer composite PET+AL construction.

3.Component function: Aluminum layer blocks water vapor, oxygen and visible light; PET layer improves tensile strength and anti‑puncture performance of whole composite foil.

4.Structure difference: Different thickness combination of AL and PET changes barrier & tensile property; thicker aluminum delivers higher barrier; thicker PET brings better tear‑resistance.

5.Different application scenarios: long-term food storage packaging, heavy-load transportation and automatic conversion processes.

1.Water‑vapor barrier capability: 8011‑O aluminum layer restricts water vapor penetration, prevents packaged goods from damp deterioration during storage and transit.

2. Oxygen blocking performance: Integrated aluminum layer cuts off oxygen ingress, slows oxidation reaction and extends shelf‑life for packed articles.

3.Light‑shielding property: Metal aluminum layer fully blocks visible light, prevents light‑triggered quality degradation for light‑sensitive food and raw materials.

4.Enhanced puncture & tear resistance: PET film reinforces overall mechanical property; not easy to pierce or rupture under heavy‑weight transportation condition, lowering packaging waste.

5.Printing convertibility: Supports custom logo & color printing, fits slitting and secondary converting for food, insulation and bottle‑cap processing scenarios.

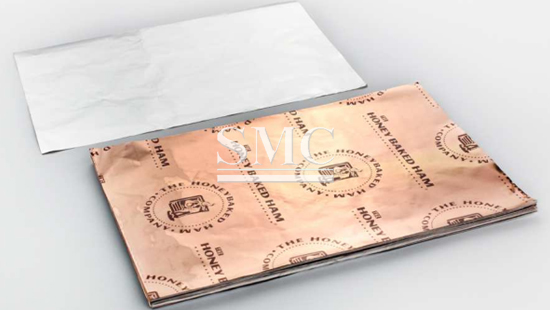

1.Restaurant Kitchen Food Wrapping: Suitable for quick wrapping of cooked meals, side dishes and pre‑prepared ingredients inside commercial restaurants. Pop‑up design supports high‑frequency fast fetching during dining peak hours.

2.Household Leftover Preservation: Used for wrapping leftover cooked food before short‑time refrigerator storage. Aluminum foil isolates food from refrigerator air to reduce flavor cross‑mixing. Recommend medium‑size sheets for family daily meals.

3.Take‑away Pre‑pack Auxiliary Treatment: Applied to wrap high‑oil ready‑made food before putting into take‑out containers. Blocks grease penetration to keep outer packaging clean.

Structure Specifications
Parameter	Typical Range	Remarks
Lamination Structure	PET/AL/PE, PET/AL/CPP, PET/AL/PA/CPE	Outer PET for electrolyte/temperature resistance, middle aluminum foil for barrier, inner layer for heat sealing
Total Thickness	35–150 μm	Common: 104 μm, 113 μm
PET Layer Thickness	12 μm (standard)	Customizable
Aluminum Foil Thickness	7–10 μm	Foil-laminated type; metallized type has nano-scale aluminum layer
Inner Layer (PE/CPP)	Customized per heat-sealing requirements	CPP for electrolyte resistance, PE for general purpose
Physical & Mechanical Properties
Parameter	Typical Value	Test Standard
Basis Weight	60–70 g/m²	ASTM D646
Tensile Strength	MD >40 N/15mm, TD >50 N/15mm	ASTM D882
Elongation at Break	MD >10%, TD >15%	—
Bond Strength (Peel)	ONY/AL ≥3 N/15mm, CPP/AL ≥8 N/15mm	GB/T 2791
Heat Seal Strength	≥50 N/15mm (battery grade)	QB/T 2358
Puncture Strength	22–24 N	GB/T 21302
Coefficient of Friction	Kinetic: 0.2–0.4	ASTM D1894

Standard Packaging

Shanghai Metal Corporation follows standard export packaging rule, also accepts full customization according to customer requirements. Each finished PET‑AL laminated foil roll is well protected to avoid mechanical damage during storage & transit. Clear identification labels with product ID and quality info are attached outside each package for easy traceability. Finished rolls are loaded into heavy‑duty export wooden crates; wooden crates are stacked on fumigated wooden pallets for sea‑land shipment..

Shipping

We support FCL full container sea freight, LCL consolidated sea freight. Available trade terms include EXW, FOB Shanghai. Other trade terms can be negotiated. Full shipping documents: commercial invoice, packing list, bill of lading. Freight cost is calculated by cargo gross weight, total volume and destination port.

Lead Time

Samples: 5‑10 working days

Standard orders (8011‑O PET‑AL regular width): 18‑28 working days

Customized orders (special OD, printing, non‑standard width): 30‑45 working day

Standard orders: 15–25 working days

Customized orders: 25–40 working days

Q1: What aluminum alloy do you adopt for this PET Laminated Aluminum Foil?

A: Standard base foil adopts 8011‑O annealed aluminum alloy, featuring good ductility and fewer pin‑holes for stable barrier effect. Other aluminum alloy can be customized.

Q2: What information do you need for official quotation?

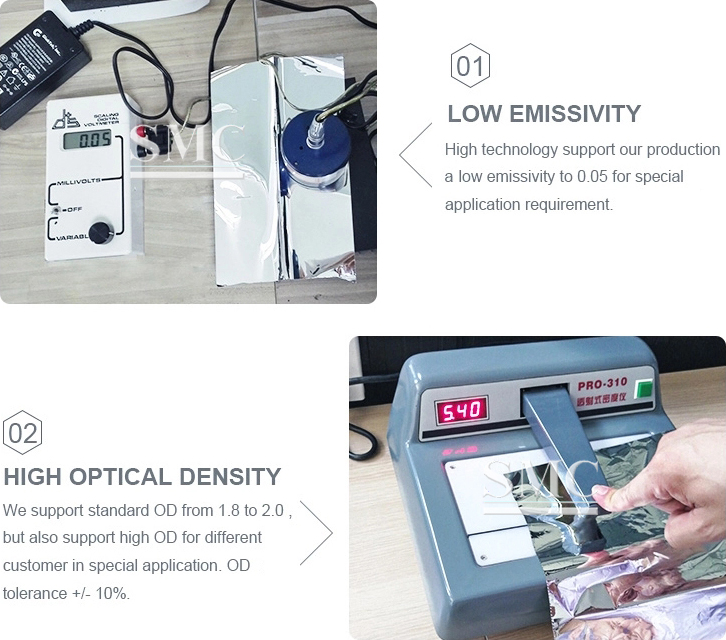

A: We need total order quantity, target roll width, core inner diameter(76mm or152mm), whether printing is required, special optical‑density / low‑emissivity requirement and destination for trade‑term confirmation.

Q3: What are main typical applications for this PET‑AL laminated foil?

A: Main usages include fresh meat food packaging, thermal‑insulation material and bottle‑cap base material, also support other custom industrial converting.

Q4: What is the advantage comparing with pure 8011‑O aluminum foil?

A: After laminating with PET film, the composite obtains greatly improved anti‑puncture and tear‑resistant performance, suitable for heavy‑weight transport scenario while keeping aluminum’s excellent water‑oxygen‑light barrier.

Q5: Can you do logo & color printing?

A: Yes, custom logo and multi‑color printing service is available. Please provide your printing artwork document for assessment.

Q6: What packaging modes can you provide?

A: We supply SMC standard export wooden‑crate & fumigated pallet packaging, and accept full custom packaging solution according to your local import regulation.
