Material: carbon steel, galvanized steel, stainless steel, aluminum

Coating: PET, PVC, PA

Size: 0.3-3.0mm size, can be customized

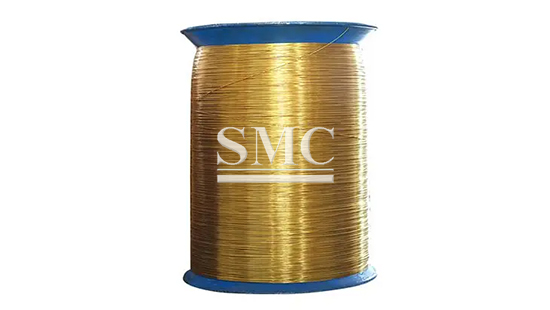

Color: White, Silver, Black, Gold, can be customized

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading PET coated steel wire manufacturer and supplier.

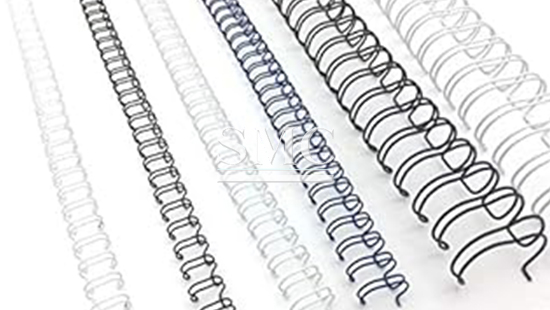

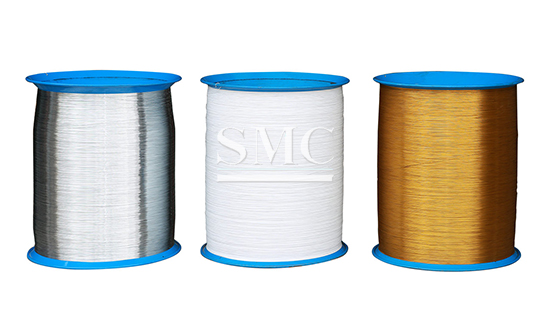

PET coated steel wire is composite material made of steel wire substrate and continuous PET plastic coating layer. The PET coating tightly wraps around the steel wire surface to isolate the metal from moisture, chemical corrosion and abrasion. This product is widely used for binding, weaving mesh, cable reinforcement, packaging and agricultural fencing. Compared with ordinary bare steel wire, the PET coating avoids direct contact between metal and external environment, effectively slowing down rust generation and resisting weak acid and alkali corrosion. It can maintain stable physical performance under outdoor and humid working conditions, reduce the frequency of replacement and maintenance of steel wire in the project. The coating also prevents metal burrs from scratching operators and other matching materials during processing and application.

If you want to know more about our steel products or PET coated steel wire price please feel free to contact us, we will reply you within 24 hours.

Coating Thickness: 0.08 ~ 0.3 mm can be customized

Tensile strength: 290–1200 MPa

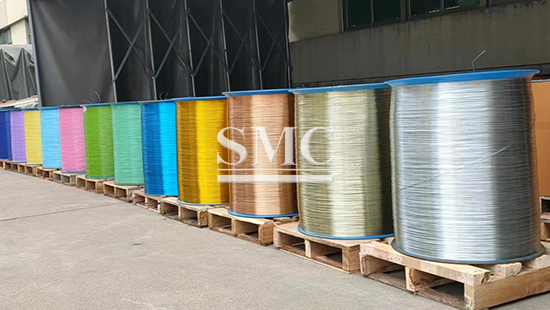

Weight: 400-450kg/spool

Internal packaging: Iron spool

Outer packaging: Protective film+corrugated paper+wood pallet

High Tensile Strength — Delivers strong load-bearing capacity and low elongation under tension, preventing wire breakage and sagging during long-term service..

Smooth Surface — Uniform and burr-free outer surface, reduces friction damage to adjacent parts and simplifies installation operation.

Good Wear Resistance — Resists abrasion from repeated friction and contact, extending service life even under continuous mechanical rubbing.

Superior Corrosion Resistance — Protects the steel core against moisture and chemical erosion, avoiding rust and performance degradation in harsh environments.

Excellent Aging Resistance — Maintains stable physical properties under UV and outdoor exposure, prevents coating cracking or brittling for long outdoor use.

Agricultural Greenhouse Support — For vine trellises of grape and tomato crops. High tensile & anti-aging PET coating maintains stable tension outdoors. Recommended: Black UV-resistant PET coated steel wire, steel core 2.0–3.0 mm.

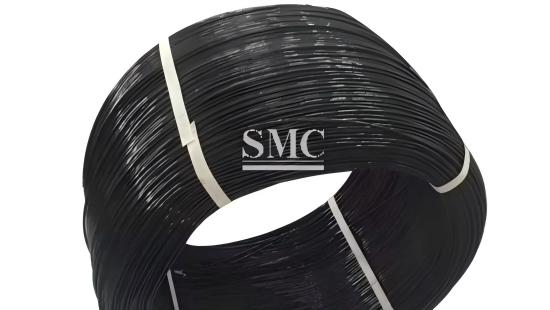

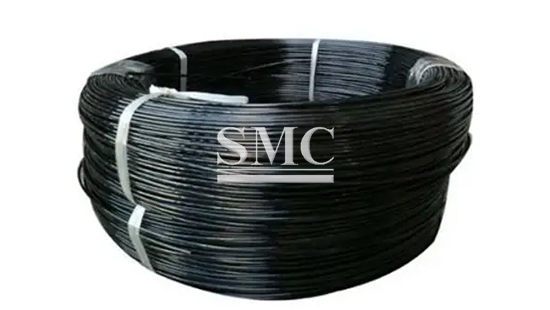

Farm Fencing Reinforcement — Used for livestock and boundary fencing. Wear & corrosion resistance cuts maintenance in outdoor conditions. Recommended: Black PET coated steel wire, steel core 1.6–2.5 mm.

Industrial Cable Binding — To bundle and support power / signal cables. Smooth surface prevents scratching cable insulation. Recommended: Black PET coated steel wire, steel core 0.8–1.5 mm.

Aquaculture Cage Bracing — Tension members for aquaculture cages. PET coating protects steel core against saltwater corrosion. Recommended: Black PET coated steel wire, steel core 2.5–3.0 mm.

Shipping

We support FCL and LCL sea freight, air freight and express delivery depending on order quantity and destination. Other terms may be available upon request.

Shipping costs are calculated based on cargo volume, gross weight, destination.

Packaging

1. Unit‑package: PET coated steel wire is co‑into coils. Each coil is wrapped with inner vacuum‑aluminum‑foil bag plus anti‑rust paper for moisture and corrosion protection. Shock‑resistant foam pads are applied for edge protection.

2. Outer case: Coils are loaded into reinforced cartons or plywood wooden cases, secured with packing belts. Wooden cases shall be half‑opened for inner‑condition inspection before final sealing.

3. Pallet loading: Finished cartons / wooden cases are neatly stacked on standard export pallets and fully wrapped with stretch film. Shipping marks & item labels are printed and affixed on outer‑case surface.

4. Loading operation: Forklift is adopted to place pallets into container or truck for shipment.

Lead Time

‑ Samples: 3‑7 working days

‑ Standard orders: 15‑25 working days

‑ Customized orders: 25‑40 working days

1. What information do you need for custom quotation?

Steel‑core diameter, finished outer diameter, PET coating thickness, color, order quantity, destination port and trade terms.

2. What are MOQ and production lead‑time?

Samples without fixed MOQ. Formal‑order MOQ depends on specifications. Lead‑time: Samples 3‑7 working days; standard orders 15‑25 working days; customized orders 25‑40 working days.

3. What certifications & test documents can you supply?

COC, COO, MTC, RoHS, REACH statements. Salt‑spray and coating peel‑strength test reports available upon request.

4. What shipping options are available?

FCL/LCL sea freight, air freight and express delivery. Freight is calculated by volume, gross weight and destination; other trade terms on request.

5. What key points should I consider for outdoor PET coated steel wire selection?

Steel‑core diameter, PET coating thickness, UV‑stabilized formula, salt‑spray resistance and actual working environment (greenhouse, aquaculture, coastal fencing etc.).

6. What is the difference between PET‑coated and HDPE‑coated steel wire?

PET features higher surface hardness and better wear resistance. HDPE has superior low‑temperature flexibility. PET is preferred for long‑term outdoor trellis and aquaculture.

7. Which test standards apply to PET coating performance?

IEC 60811(sheath tensile/elongation), ASTM D2240(hardness), ASTM D903(coating peel adhesion), ISO 9227(salt‑spray test).
