Aluminum Other

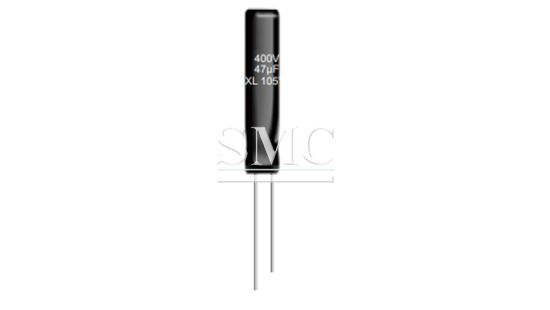

Electrolytic Capacitor

    Rated voltage: 4-500V



    Temperature: -40(-25) ~ +105℃

Shanghai Metal Corporation is a leading Electrolytic capacitor supplier and manufacturer.

The aluminum electrolytic capacitor is a general-purpose electrolytic capacitor made of aluminum material with good electrical properties, wide application range and high reliability. It is made of an aluminum cylinder as a negative electrode, which is filled with a liquid electrolyte, and is inserted into a bent aluminum strip as a positive electrode.

The core is made up of an anode aluminum foil, a liner paper impregnated with an electrolyte, a cathode aluminum foil, a natural oxide film, etc., and the core is impregnated with an electrolyte and sealed with an aluminum shell and a rubber cover to form an electrolysis capacitor. In general, aluminum electrolytic capacitors have a plastic sleeve on the outside of the aluminum casing. The casing is colorful in color, and it is not only aesthetically pleasing but has a specific meaning.

A capacitor is an energy storage component used in circuits for tuning, filtering, coupling, bypassing, energy conversion, and delay. Capacitors are often called capacitors. According to its structure, it can be divided into fixed capacitors, semi-variable capacitors and variable capacitors.

The product has 30 types and thousands of specifications, and is widely used in air conditioners, tape recorders, washing machines, communication machines and other household appliances and electronic machines, instruments and meters.


Shanghai Metal Corporation is a professional manufacture and supplier of electrolytic capacitor, Mirror Finish/Reflective Aluminum SheetEnameled Aluminum Wire, with high quality and reasonable price. We also supply Aluminum Foil ,Aluminum Foil Container. If you want to know more about our Aluminum products or Aluminum electrolytic capacitor price,please feel free to contact us, we will reply you within 24 hours.

Aluminum electrolytic capacitors are characterized by large capacity, but large leakage, large error, and poor stability. They are often used for AC bypass and filtering, and are also used for signal coupling when the requirements are not high. Electrolytic capacitors have positive and negative poles and cannot be reversed during use.

If you want to know more about our Electrolytic capacitor or Electrolytic capacitor price please feel free to contact us, we will reply you within 24 hours.

Specification of electrolytic capacitor

Item

Performance Characteristics

Operating temperature Range

 =-40 ~+105

Rated voltage range

4~100V

Nominal capacitance range

0.1~1500μF

Capacitance tolerance

±20%(+20 ,120Hz)

Leakage current

I 0.01CRUR or 3(μA), 取较大者(2 分钟)Whichever is greater (at 20℃,after 2 minutes)
 CR: Nominal capacitance(µF)       UR: Rated voltage(V)

Dissipation Factor (Max)
+20 ,120Hz

UR(V)

4

6.3

10

16

25

35

50

tgδ

0.35

0.28

0.24

0.2

0.16

0.14

0.12

Load life

After 1000 hours' application of rated voltage at 105 , the capacitor shall meet the following requirement:

Capacitance change

Within ±20% of the initial value( 16V: within ±25% of the initial value)

Dissipation factor

Not more than 300% of the initial specified value

Leakage current

Not more than the initial specified value

Shelf life

After storage for 1000 hours at 105 ,the capacitors shall meet the requirement of load life above.

Low Temperature Stability

Impedance Ratio(120Hz)

UR(V)

4

6.3

10

16

25

35

50

Z-25 /+20

7

4

3

2

2

2

2

Z-40 /+20

15

8

6

4

4

3

3

Resistance to Soldering Heat

The capacitors shall be kept on the hot plate maintained at 250 for 30 seconds. After removing from
the hot plate and restored at room temperature, they meet the following requirement:

Capacitance change

 Within ±10% of the initial value

Dissipation factor

Not more than the initial specified value

Leakage current

Not more than the initial specified value

Specification of snap-in capacitor

Item

Performance Characteristics

Operating temperature Range

-40~+85

-25~+85

Rated voltage range

10~400V

450~500V

Nominal capacitance range

68~82000μF

Capacitance tolerance

±20%(120Hz,+20 )

Leakage Current

I ≤ 0.01CV 1.5mA5 分钟) 取较小值(after 5 minutes , Whichever is smaller

Dissipation Factor +20 ,120Hz



UR(V)

Cap(μF)

160-200

250-500

22-30

0.1

0.15

35

0.12

0.15



UR(V)

ΦD(mm)

10~16

25

30-50

63

80-100

2700

-

-

0.2

0.15

0.15

3300-4700

-

0.35

0.25

0.2

0.15

5600-6800

0.4

0.35

0.3

0.2

0.2

8200

0.4

0.35

0.35

0.25

-















Temperature Characteristics

(Impedance ratio at 120Hz)



UR(V)

10

16-35

50-100

160-200

250-400

450-500

Z-25 /+20

5

4

3

3

4

4

Z-40 /+20

18

15

10

6

8

-



Load Life

After applying rated voltage with specified ripple current for 2000 hours at +85 and then resumed 24 hours:

Capacitance change : ±20% of the initial measured value

Leakage current : ≤ the initial specified value

Dissipation factor : ≤ 200 of the initial specified value

Shelf Life

After storage for 1000 hours at +85 , UR to be applied for 30 minutes and then resumed 24 hours:  Capacitance change : ±15% of the initial measured value

Leakage current : ≤ the initial specified value

Dissipation factor : ≤ 150 of the initial specified value

Specification of screw capacitor

Item

Performance Characteristics

Operating temperature Range

-40~+85

-25~+85

Rated voltage range

10~250V

350~450V

Nominal capacitance range

270~820000μF

Capacitance tolerance

±20%

Leakage Current

I ≤ 0.01CV 1.5mA5 分钟) 取较小值(after 5 minutes , Whichever is smaller

Load Life

85 )

Time : 2000 hours

Capacitance change :±20% of the initial measured value

Leakage current : ≤the initial specified value

Dissipation factor : ≤200 of the initial specified value

Shelf Life

85 )

After test: UR to be applied for 60 minutes, 24 to 48 hours before measurement.

Time : 1000 hours

Capacitance change : ±20% of the initial measured value

Leakage current : ≤the initial specified value

Dissipation factor : ≤200 of the initial specified value

Radical capacitor
