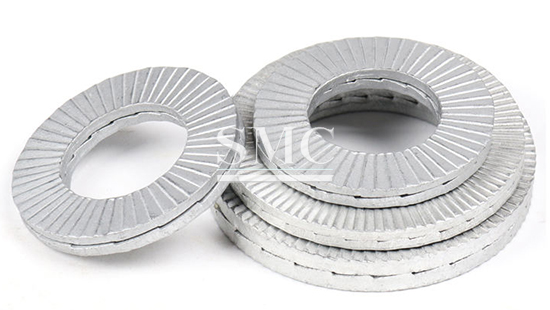

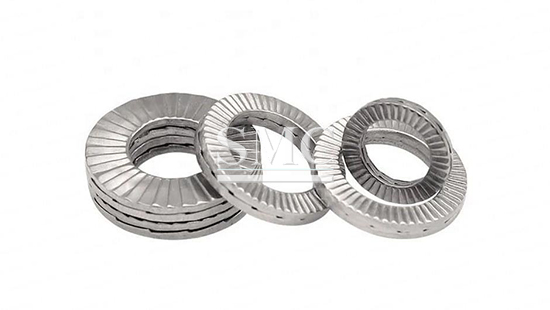

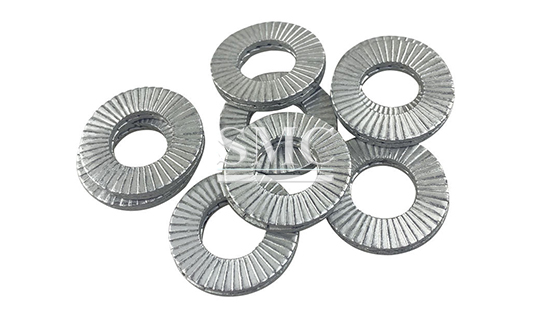

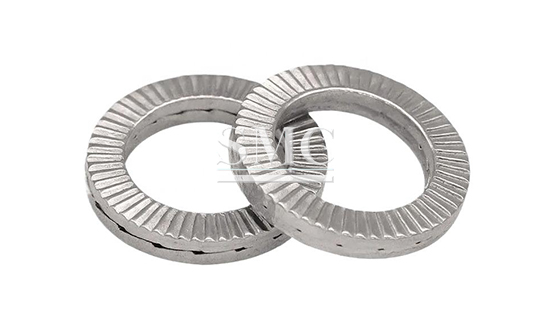

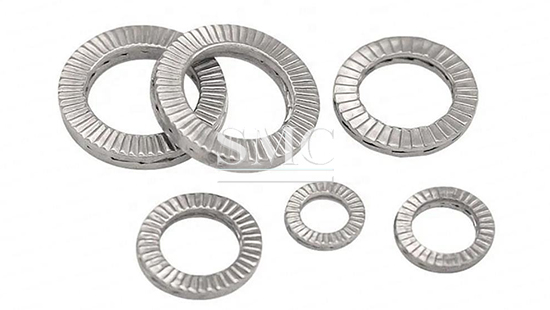

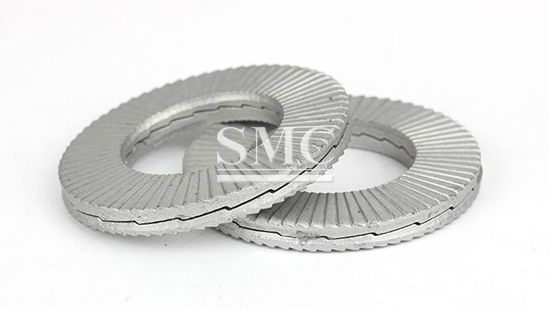

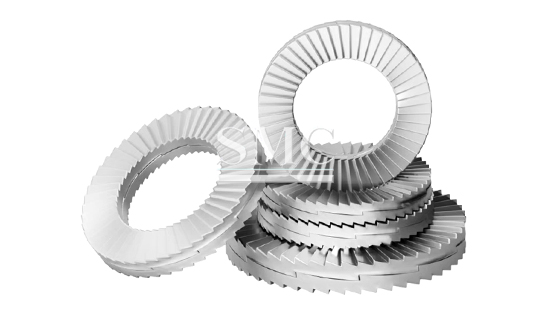

Double Deck Self-Locking Washer
Material: Stainless Steel, Carbon Steel, Spring Steel, etc.
Size: M3 - M56
Finish: Plain, Dacromet, Galvanized, Painted, etc.
Shanghai Metal Corporation is professional manufacturer of Double Deck Self-Locking Washers with wide range of sizes, designs and materials, if you want to know more about our products, please feel free to contact us, we will reply you within 24 hours.
Technical Information of Double Deck Self-Locking Washer:
|
Washer size |
For screw Size Metric |
For screw Size Inch |
ID.mm |
OD,mm |
Thk,mm |
Specs.Met |
|
3ss |
M3 |
#5 |
3.4 |
7.0 |
2.2 |
DIN 25201 |
|
3,5ss |
M3.5 |
#6 |
3.9 |
7.6 |
2.2 |
DIN 25201 |
|
3,5spss |
M3.5 |
#6 |
3.9 |
9.0 |
2.2 |
DIN 25201 |
|
4ss |
M4 |
#8 |
4.4 |
7.6 |
2.2 |
DIN 25201 |
|
4spss |
M4 |
#8 |
4.4 |
9.0 |
2.2 |
DIN 25201 |
|
5ss |
M5 |
#10 |
5.4 |
9.0 |
2.2 |
DIN 25201 |
|
5spss |
M5 |
#10 |
5.4 |
10.8 |
2.2 |
DIN 25201 |
|
6ss |
M6 |
|
6.5 |
10.8 |
2.2 |
DIN 25201 |
|
6spss |
M6 |
|
6.5 |
13.5 |
2 |
DIN 25201 |
|
1/4"ss |
- |
1/4" |
7.2 |
11.5 |
2.2 |
DIN 25201 |
|
1/4"spss |
|
1/4" |
7.2 |
13.5 |
2.2 |
DIN 25201 |
|
8ss |
M8 |
5/16" |
8.7 |
13.5 |
2 |
DIN 25201 |
|
8spss |
M8 |
5/16" |
8.7 |
16.6 |
2 |
DIN 25201 |
|
3/8'ss |
|
3/8" |
10.3 |
16.6 |
2 |
DIN 25201 |
|
3/8"spss |
|
3/8" |
10.3 |
21.0 |
2 |
DIN 25201 |
|
10ss |
M10 |
|
10.7 |
16.6 |
2 |
DIN 25201 |
|
10spss |
M10 |
|
10.7 |
21.0 |
2 |
DIN 25201 |
|
11ss |
M11 |
7/16" |
11.4 |
18.5 |
2.2 |
DIN 25201 |
|
12ss |
M12 |
|
13.0 |
19.5 |
2 |
DIN 25201 |
|
12spss |
M12 |
|
13.0 |
25.4 |
3 |
DIN 25201 |
|
1/2"ss |
|
1/2" |
13.5 |
19.5 |
2 |
DIN 25201 |
|
1/2"spss |
- |
1/2" |
13.5 |
25.4 |
3.2 |
DIN 25201 |
|
14ss |
M14 |
9/16" |
15.2 |
23.0 |
3 |
DIN 25201 |
|
14spss |
M14 |
9/16" |
15.2 |
30.7 |
3.2 |
DIN 25201 |
|
16ss |
M16 |
5/8" |
17.0 |
25.4 |
3 |
DIN 25201 |
|
16spss |
M16 |
5/8" |
17.0 |
30.7 |
3.2 |
DIN 25201 |
|
18ss |
M18 |
|
19.5 |
29.0 |
3.2 |
DIN 25201 |
|
18spss |
M18 |
|
19.5 |
34.5 |
3.2 |
DIN 25201 |
|
Please contact us and refer to the image for more details |
||||||
Packaging of Double Deck Self-Locking Washer:
Our Products are packed according to the standard regulations, we are taking great care to avoid any damage which might be caused during storage or transportation.
