Disposable Butyl Rubber Stopper Of Blood Collection Tube Price

Shanghai Metal Corporation is a leading Disposable Butyl Rubber Stopper for Blood Tube manufacturer and supplier.

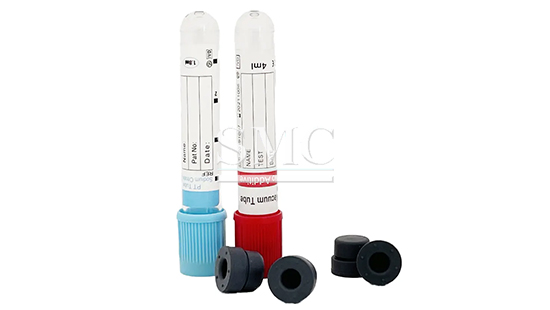

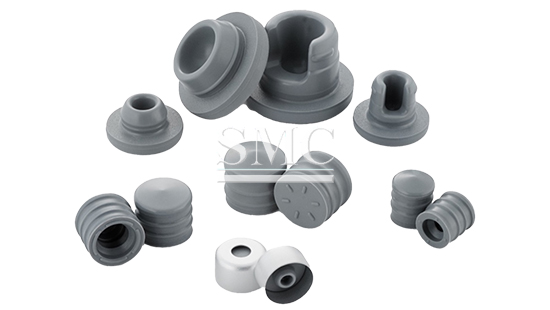

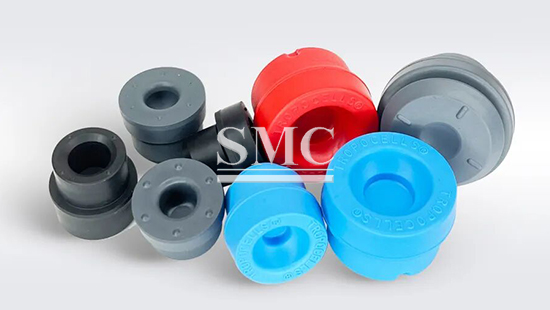

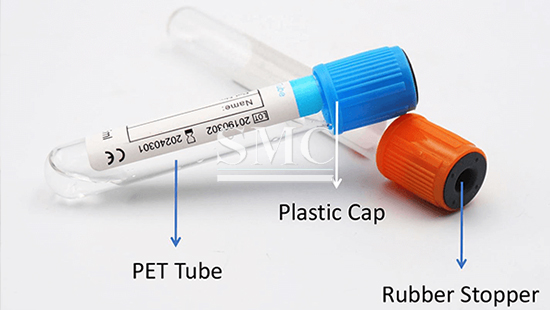

Disposable butyl rubber stopper for blood collection tube is a one‑time‑use sealing component made of medical‑grade butyl rubber. This part is designed to fit on the opening of vacuum blood collection tubes. It maintains stable negative pressure inside the blood tube after vacuum pumping, so that human blood can flow automatically into the tube during clinical blood sampling. The butyl rubber material has low gas permeability, which slows down air penetration and prevents vacuum loss during storage and transportation. It also resists chemical reactions with anticoagulants, coagulants and other additives pre‑filled inside blood tubes, avoiding sample contamination or component failure. This stopper is widely used in hospital clinical laboratories, physical examination centers and medical testing institutions. It solves common practical problems including vacuum attenuation, blood sample leakage, and chemical compatibility failure between rubber and tube additives during specimen storage and transport.

If you want to know more about Disposable Butyl Rubber Stopper for Blood Tube price please feel free to contact us, we will reply you within 24 hours.

Material composition：Main raw material is medical‑grade halogenated butyl rubber; auxiliary components include food‑medical grade vulcanizing agent, filler and release‑free additive, no plasticizer that may precipitate into blood sample.

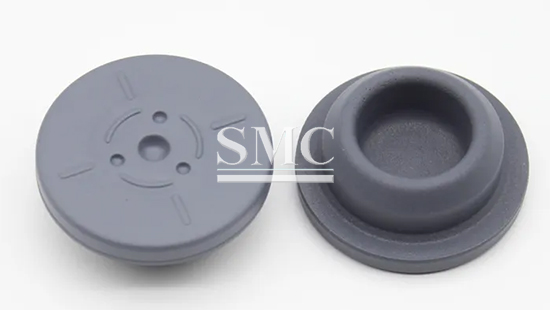

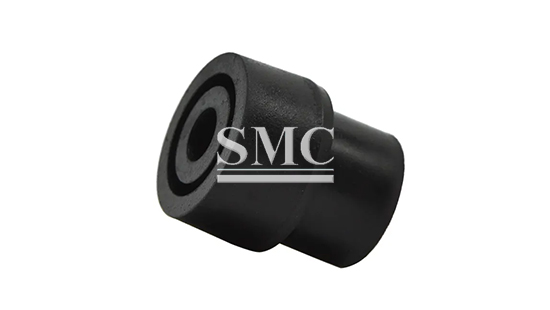

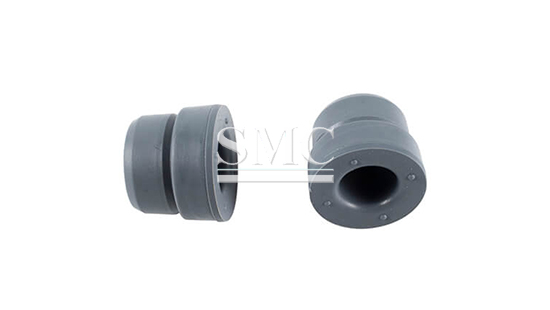

Product structure：Consist of outer sealing lip, middle locating shoulder and inner compression core.

Each part function: 1. Outer sealing lip: closely fit the inner wall of blood collection tube to achieve air‑tight seal. 2. Middle locating shoulder: limit insertion depth to guarantee consistent assembly position on tubes. 3. Inner compression core: bear puncture force when vacuum tube is used for blood drawing.

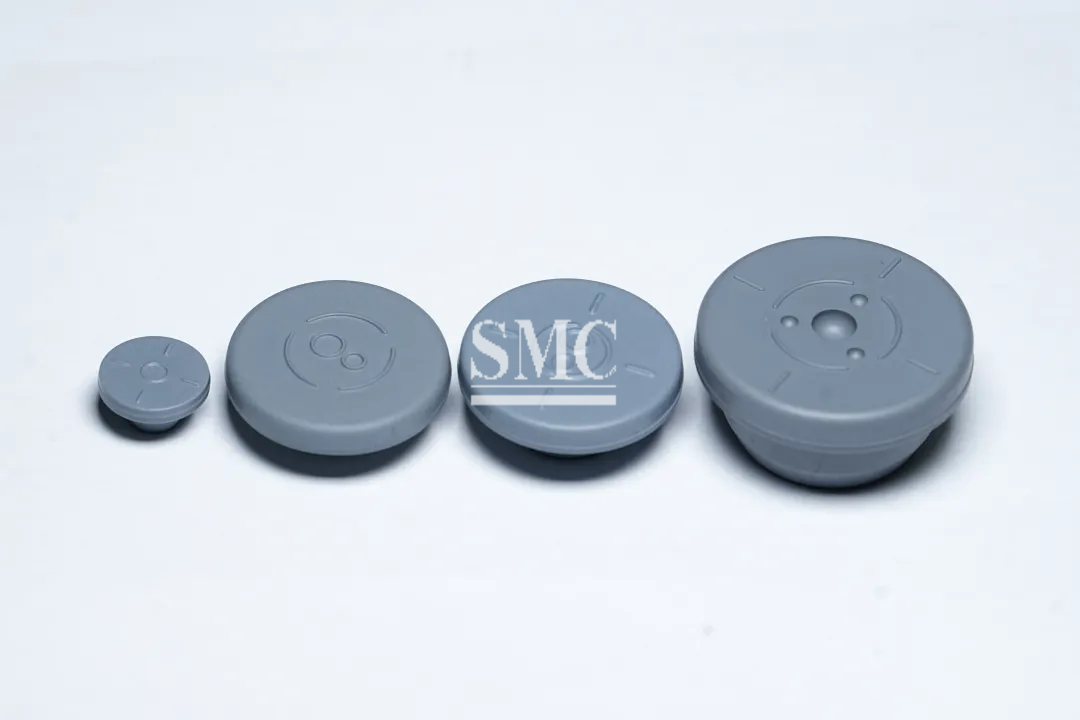

Structure difference: flat‑top version for automatic high‑speed tube assembly line; concave‑top version for easy needle puncture in manual sampling operations.

Corresponding application scenarios: flat‑top stopper matches mass‑production automated blood‑tube factories; concave‑top stopper fits small‑batch medical laboratory manual sampling demand.

Low Gas Permeability Performance — Adopt halogenated butyl rubber raw material with low air transmission rate, slows inward air penetration, helps retain tube vacuum for longer shelf life of finished blood collection tubes.

Good Puncture‑Resistance Property — Can withstand repeated needle puncture without large‑size rubber debris falling off, reduces risk of rubber particle mixing into collected blood sample.

Chemical Inertness to Tube Additives — Does not produce chemical reaction with anticoagulant, separating gel and serum additive inside blood tubes, prevents blood sample deterioration caused by substance precipitation.

Stable Dimensional Consistency — Controlled dimensional tolerance in mass production, guarantees automatic machine assembly, reduces stopper jam and mis‑fit rate during high‑speed production of blood‑collection tubes.

Disposable Anti‑Contamination Design — Formulated for single‑time use, cannot restore sealing performance after needle piercing, avoids cross‑contamination risk caused by repeated reuse.

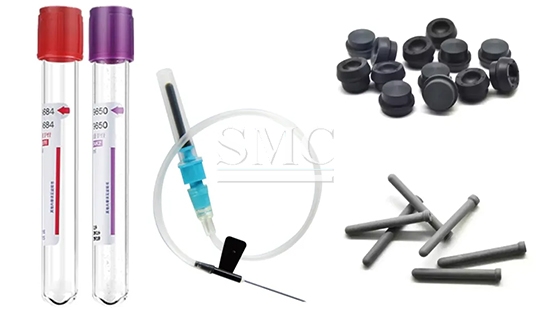

Clinical Venous Blood Collection — Used for vacuum blood sampling in hospital outpatient and inpatient wards. Its stable vacuum‑keeping performance ensures smooth blood inflow. Recommend concave‑top butyl rubber stopper, hardness 45‑50 Shore A.

Medical Physical Examination Center Specimen Collection — Applied for large‑scale crowd physical examination blood sampling. Good batch‑to‑batch dimensional consistency adapts high‑volume continuous sampling work. Recommend flat‑top specification for automatic tube assembly.

Medical Inspection Laboratory Sample Preservation — For sealed storage of blood specimens before centrifugal testing. Low‑permeation rubber avoids vacuum failure and sample evaporation during sample transit. Suitable for all conventional tube diameters matching stoppers.

IVD in‑vitro diagnostic consumables manufacturing — Support mass production of vacuum blood‑collection tube for IVD consumable factories. Material meets medical contact requirement, compatible with various tube additives. Custom sizes available according to tube mould dimension.

Item	Spec	Main Feature	Main size (mm)
Item	Spec	Main Feature	Head Dia	Plug Dia	Height	Head thickness
1	Φ12	three points	14.0±0.1	11.3±0.1	5.0±0.25	11.2±0.3
2	Φ13-IF	four points	13.3±0.1	11.3±0.1	4.8±0.25	11.0±0.3
3	Φ14-H		12.9±0.1	9.5±0.1	-	-
4	Φ16-F		16.8±0.1	13.6±0.15	6.5±0.3	18.5±0.25
5	Φ8		16.0±0.1	12.7±0.1	8.7±0.25	17.2±0.25

Standard Packaging

Disposable butyl rubber stoppers for blood collection tube are packed inside clean medical‑grade PE sealed bags, each bag contains 5000 pcs. Sealed PE bags are then put into thick export cartons. Each carton holds 20 000 pcs. Cartons are strapped with packing belts and stacked on fumigated wooden pallets. Pallets are fully wrapped with stretch film to block dust and moisture during ocean or land transit. Product batch number and specification marks are printed on outside carton labels.

Shipping

We support FCL full container sea freight, LCL less‑than‑container sea freight and air freight, determined by order quantity and destination. Applicable trade terms include EXW, FOB, CIF. Other terms may be available upon request. Shipping cost is calculated based on total cargo volume, gross weight, receiving port and selected transport mode.

Lead Time

Samples: 3–7 working days

Standard bulk orders: 15–25 working days

Custom‑mold customized orders: 25–40 working days

Q1: How long does sample preparation take?

A: Standard existing‑mold samples will be finished within 3‑7 working days. If custom mold needs to be opened for new dimension, sample time will extend to 20‑30 working days.

Q2: What information do you need for a custom quotation?

A: We need tube inner diameter to match stopper, stopper structure type, required hardness, order quantity, sterilization way and target market medical requirement.

Q3: What is the MOQ for bulk production?

A: MOQ for existing mould product is 200 000 pieces. For new custom‑mold items, extra mould cost applies and MOQ will be confirmed separately.

Q4: What certifications can you provide for this medical rubber stopper?

A: We can provide raw‑material test report, rubber‑composition analysis report. Customer shall finish local medical registration according to destination country regulation.

Q5: What is the difference between halogenated butyl stopper and ordinary butyl stopper for blood tube?

A: Halogenated butyl rubber has lower moisture‑gas permeability and better puncture debris‑resistance, suitable for vacuum blood‑collection tube. Ordinary butyl rubber has higher air permeability and cannot guarantee long‑term vacuum retention, it is not fit for vacuum blood sampling use.

Q6: Which key factors should I confirm when selecting blood‑collection tube rubber stopper?

A: Confirm matching tube dimension, rubber material grade, required hardness, adaption with tube inner additives and sterilization method for finished products
