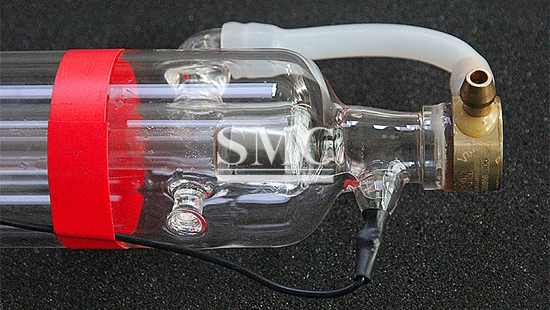

Laser tube, the full name of the glass sealed off CO2 laser. Because the structure is made of glass tube, it is commonly called laser tube.
Working principle: High-voltage discharge stimulates high-concentration CO2 gas to produce a laser with a wavelength of 10.6um.

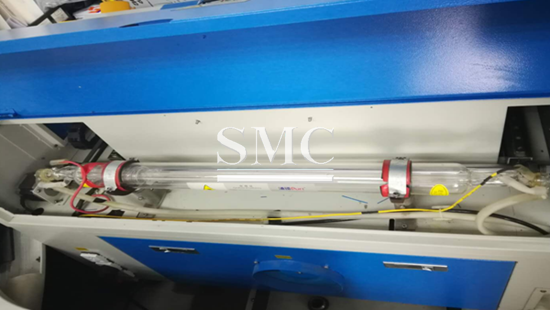

The laser tube is a consumable for the laser cutting engraving machine. The life is the most importantpurchase indicator for the user. The difference in life span is mainly due to the processing technology and design technology as the main factors. Generally, the working life of domestic laser tubes is about 1800 hours (60W is an example).
Technical Information of CO2 Laser Tube:
60W, 80W, 100W, 120W, 150W, 180W, 200W, 300W
Laser tubes of different powers are mainly distinguished by different lengths. For example,the 60W laser
tube is 1200mm or 1250mm, and the 80W length is generally 1600mm.
Packaging of CO2 Laser Tube:
Shanghai Metal Corporation Products are packed and labeled according to the regulationsand customer's
requests. Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D.
and quality information.
