Base Material: High carbon steel

Coating Material: Bronze

Standard: ASTM-D-1871 .ETC

Wire diameter: Ø1.55 mm~Ø1.65 mm and Ø0.78 mm~Ø0.96 mm

Product Detail | Technical Information | Packaging

Product Detail1

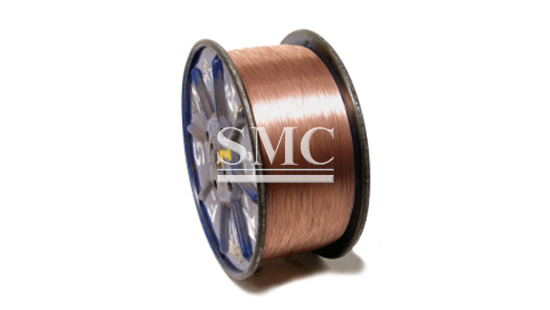

Shanghai Metal Corporation is a leading Bronze-Plated Steel Tire Bead Wire manufacturer and supplier.

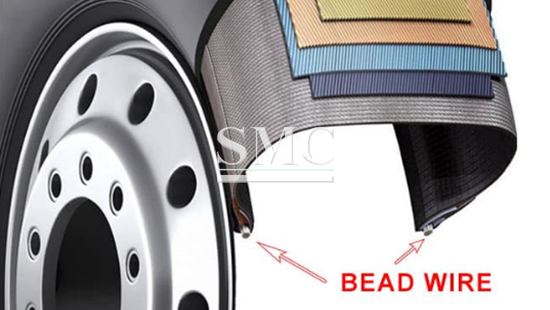

The main reinforcing element of the bead part of tires is a bead ring made of steel wire coated with bronze to provide chemical bond with rubber. Bead wire contains of fiber stands disposed so as to provide both high strength and certain degree of flexibility needed for mounting and dismounting tires. Carcass layers are wrapped around the bead wire fixing carcass layers and holds the assembly on the wheel rim, thereby preventing the tire from rolling or sliding, providing road performance of the tire. Bead wire for bias and bias-belted tires is used on both sides of the tire. In cast tires bead wire is used for fixing the tire to the rim.

If you want to know more about our Bronze-Plated Steel Tire Bead Wire price please feel free to contact us, we will reply you within 24 hours.

1. Tensile strength: 1500 N/mm² – 2300 N/mm²
2. Surface treatment: Bronze-Plated
3. Processing Service: Bending

1. High strength
2. High toughness
3. Low cost
4. Good bonding properties

1. Car tire
2. Bicycle tire
3. Motor Tire

Diameter(mm)	Tolerance(mm)	Tensile Strength Level	Tensile Strength (Mpa)	Breaking Force(N)	Elongation(%)	Torsion (T/360°）	Yield Ratio(%)	Straightness (mm/3m）
0.89	±0.02	NT	≥1900	≥1180	≥5.0%	≥50（200d）	85%	≤600
0.89	±0.02	HT	≥2150	≥1340	≥5.0%	≥50（200d）	85%	≤600
0.95	±0.02	NT	≥1850	≥1310	≥5.0%	≥50（200d）	85%	≤600
0.95	±0.02	HT	≥2100	≥1490	≥5.0%	≥50（200d）	85%	≤600
0.96	±0.02	NT	≥1850	≥1340	≥5.0%	≥50（200d）	85%	≤600
0.96	±0.02	HT	≥2100	≥1520	≥5.0%	≥50（200d）	85%	≤600
1.00	±0.02	NT	≥1850	≥1450	≥5.0%	≥22（100d）	85%	≤600
1.00	±0.02	HT	≥2080	≥1630	≥5.0%	≥22（100d）	85%	≤600
1.20	±0.02	NT	≥1800	≥2035	≥5.0%	≥22（100d）	85%	≤600
1.20	±0.02	HT	≥2050	≥2320	≥5.0%	≥22（100d）	85%	≤600
1.26	±0.02	NT	≥1790	≥2230	≥5.0%	≥22（100d）	85%	≤600
1.26	±0.02	HT	≥2050	≥2555	≥5.0%	≥22（100d）	85%	≤600
1.30	±0.02	NT	≥1790	≥2375	≥5.0%	≥22（100d）	85%	≤600
1.30	±0.02	HT	≥2050	≥2720	≥5.0%	≥22（100d）	85%	≤600
1.42	±0.02	NT	≥1785	≥2825	≥5.0%	≥22（100d）	85%	≤600
1.42	±0.02	HT	≥2030	≥3210	≥5.0%	≥22（100d）	85%	≤600
1.55	±0.02	NT	≥1780	≥3360	≥5.0%	≥20（100d）	85%	≤600
1.55	±0.02	HT	≥2015	≥3800	≥5.0%	≥20（100d）	85%	≤600
1.60	±0.02	NT	≥1780	≥3580	≥5.0%	≥20（100d）	85%	≤600
1.60	±0.02	HT	≥2010	≥4040	≥5.0%	≥20（100d）	85%	≤600
1.65	±0.02	NT	≥1780	≥3805	≥5.0%	≥20（100d）	85%	≤600
1.83	±0.03	NT	≥1770	≥4650	≥5.0%	≥16（100d）	85%	≤600
1.83	±0.03	HT	≥2005	≥5270	≥5.0%	≥16（100d）	85%	≤600
2.00	±0.03	NT	≥1680	≥5275	≥5.0%	≥16（100d）	85%	≤600
2.00	±0.03	HT	≥1850	≥5810	≥5.0%	≥16（100d）	85%	≤600
2.03	±0.03	NT	≥1680	≥5435	≥5.0%	≥16（100d）	85%	≤600
2.03	±0.03	HT	≥1850	≥5985	≥5.0%	≥16（100d）	85%	≤600
2.20	±0.03	NT	≥1630	≥6190	≥5.0%	≥16（100d）	85%	≤600
2.20	±0.03	HT	≥1820	≥6915	≥5.0%	≥16（100d）	85%	≤600

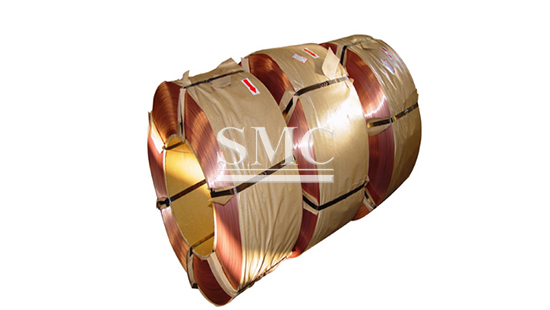

Package: Carton packed on the pallet, or according to customer’s requirement
