Grade: C17200，C17510, CuBe2，C17300, C17500 etc

Standard: ASTM; GB/T5233-2001;EN12163

Diameter: 0.8mm~150mm

Product Detail | Packaging | More

Product Detail1

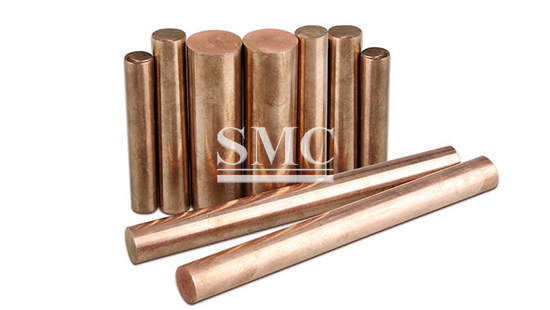

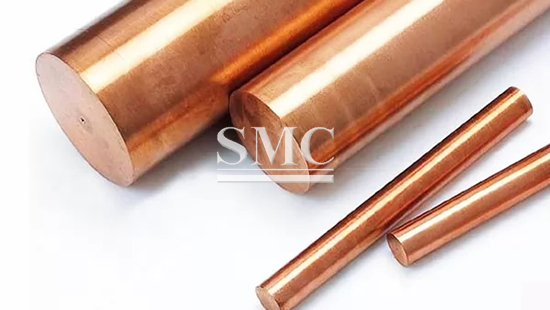

Shanghai Metal Corporation is a leading Beryllium Copper Bar manufacturer and supplier.

Beryllium copper bar is a supersaturated solid solution copper-based alloy. It is a non-ferrous alloy with a good combination of mechanical properties, physical properties, chemical properties and corrosion resistance. After solid solution and aging heat treatment, it is equivalent to special steel. High strength limit, elastic limit, yield limit and fatigue limit, while having high electrical conductivity, thermal conductivity, high hardness and wear resistance, high corrosion resistance, good casting performance, non-magnetic and non-sparking at impact Produce equal performance.

If you want to know more about our beryllium copper bar or beryllium copper wire price please feel free to contact us, we will reply you within 24 hours.

1) Grade: C17200，C17510, CuBe2，C17300, C17500 etc

2) Standard: ASTM; GB/T5233-2001;EN12163

3) Diameter: 0.8~150mm

4) Physical Properties:

Density (g/cm3): 8.3~8.5 g/cm³

Specific Gravity: 8.36g/cm3

Melting Point（Liquidus): 890°C--980°C

1) High elasticity, hardness and strength

2) High conductivity and thermal conductivity.

3) Good fatigue resistance.

4) Excellent corrosion resistance.

5) No spark impact.

1) Material Melting

2) Casting

3) Extruding

4) Drawing

5) Straightening

6) Annealing

Beryllium bar are widely used in machinery manufacturing, iron and steel metallurgy, electronic communications, rail transit, aerospace, automotive manufacturing, shipbuilding, precision mold and other industries

1) Hardness

2) Tensile Strength

3) Elongation

4) Metal-Detector

5) Conductivity

6) Chemical Content

Packaging of Beryllium Copper Bar :

Q1.Do you provide Mill Test Certificates (MTC) for the Beryllium Copper Bars?

A: Yes, all our Beryllium Copper shipments come with a comprehensive EN 10204 3.1 Mill Test Certificate, detailing the exact chemical composition, mechanical properties, and trace elements to ensure full material traceability.

Q2.Can you supply the bars in the age-hardened condition (HT temper), or do we need to heat-treat them ourselves?

A: We offer both options. We can supply the material in the annealed/drawn condition (TB00/TD04) for easier CNC machining at your facility, or we can provide fully age-hardened bars (TF00/TH04) ready for immediate deployment.

Q3.What information do you need for a custom quotation?

A: To provide an accurate quote, please specify the exact alloy grade (e.g., C17200), required temper, diameter, length, order quantity, and any specific dimensional tolerances or testing requirements.

Q4.Is Beryllium Copper strictly non-magnetic?

A: Yes, Beryllium Copper has a very low magnetic permeability (close to 1.0), making it virtually non-magnetic. This is why it is extensively used in MRI machine components and directional drilling tools where magnetic interference is unacceptable.

Q5.What is the MOQ and production lead time?

A: The Minimum Order Quantity (MOQ) typically starts at 100 kg for standard rod diameters. Our standard production lead time is 15-25 working days, while customized shapes or specialized tempers may require 25-40 working days.
