Shanghai Metal Corporation is a leading aluminum foil container making machine manufacturer and supplier.

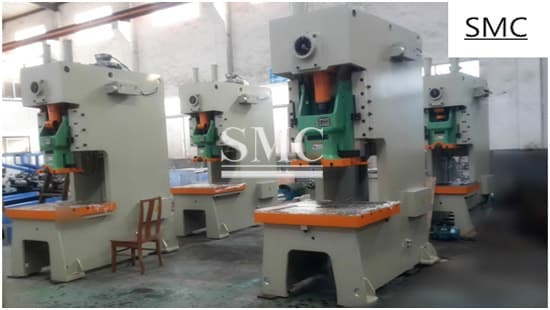

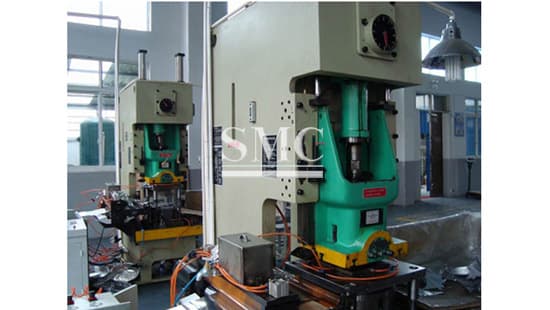

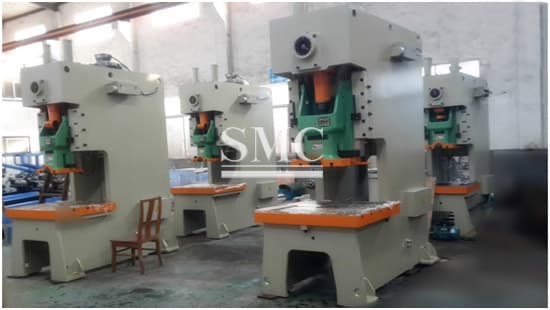

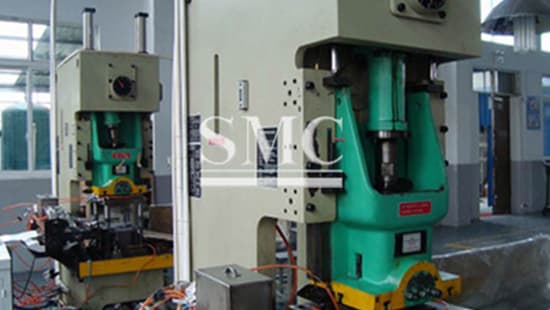

Aluminum foil container making machines are used to produce aluminum foil container. The production line is composed of auto-feeder, automatic precision press, waste collection system, finished product collection device and mold (mold is optional).
If you want to know more about our aluminum foil container machine, aluminum foil, round enameled aluminum wire, household aluminum foil please feel free to contact us. We will reply to you within 24 hours.

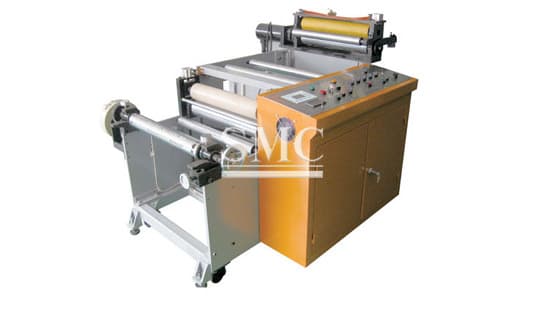

Automatic Feeder(with lubricating system):
Max. Material Roll Dia.: ￠650mm
Max. Material Roll Width: 650mm
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Dimension: 1200x1200x1100mm (L*W*H)
Length Controller:700x720x550mm (L*W*H)
Hole Size of Collecting Table: 300*300mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 50mm
Max. Height of Mould: 290mm(excluded working plate 50mm)
Slide Board Size: 220*400mm
The Distance from Center of Slide Piece and Punch Unit: 340mm
The adjustment height of Installation of Mould: 60mm
Size of Screw Hole of Mould: 50*60mm
Size of Collecting Table: 660*1000 mm*50 mm
Dimension: 1500*1125*2315mm (L*W*H)
This production line can work automatically. Worker control and regulate this production line through electric control panel.
The feeding system control feeding length and stepping by computer, which assure a high-precision steps.
We can design and manufacture different machines on request. There is some difference in machines outer-appearance.
The press may be equipped with single cavity or multi-cavity moulds for wrinkle-wall or smooth-wall container production.
Main parts and Electrical components for aluminum container machine:
Spare parts list for aluminum container machine:
