Aluminum Sheet

Aluminum-core Panel

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Aluminum-core Panel with high quality and reasonable price.

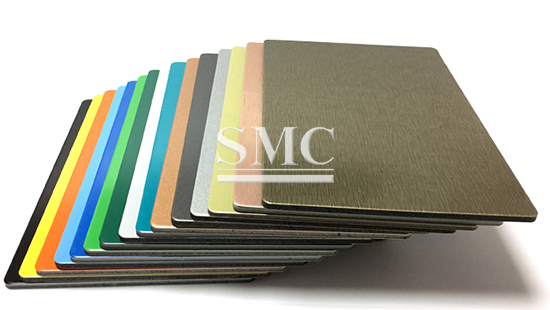

Aluminum-core Panel, also known as aluminum core composite panel, is an improved honeycomb panel. Without the expensive unit price of traditional aluminum honeycomb panels, it is stronger and lighter than aluminum honeycomb panels.

If you want to know more about aluminum-core panel or other Aluminum Composite Panel price please feel free to contact us, we will reply you within 24 hours.

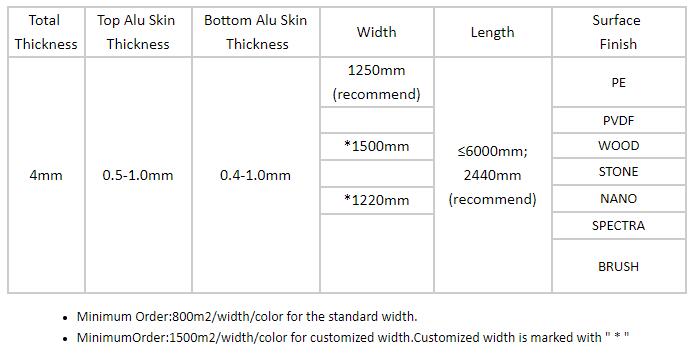

  • 1.Thickness: 3mm,4mm,6mm,8mm,10mm

    2.Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)

    3.Length: 2440mm,2500mm,3050mm,3200mm,4000mm( max:6000mm)

    4.Weight: 5.5kg/sqm baesd on 0.5/4mm thickness

    5.Standard size:1220*2440mm

    6.Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm

    7.Non-stanard size are available according to requirement

    8.Coating:PE/PVER/FEVE/PVDF



  • 1 Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer

    2 Core: nontox low density polyethylene

    3 Back: aluminium alloy sheet coated with polyester resin painting

    4 Surface coating thickness: 32μ±1μ

    5 Aluminium alloy: 3003 H24

    6 Sheet thickness: 0.3mm,0.4mm,0.5mm

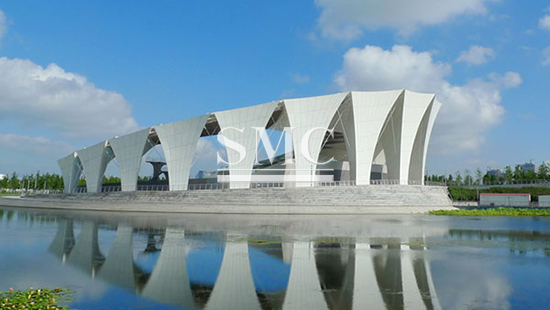

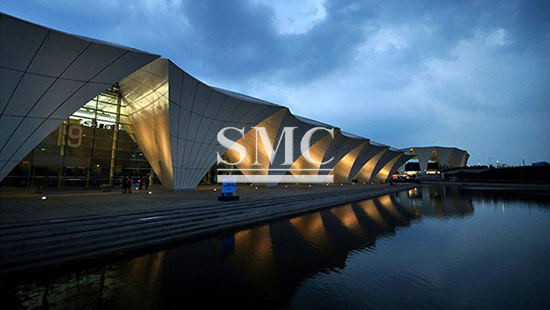

  • ceiling; box body material; cabinet, wardrobe; exterior wall and interior decoration.

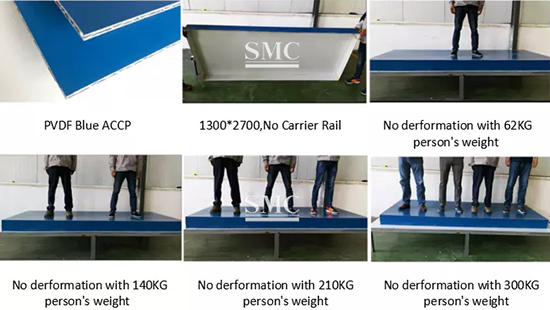

  • Light: lighter than aluminum solid panel

    Slim: much cheaper than aluminum honeycomb panel

    Strong: more durable than aluminum corrugated panels

    Ultraflat: fatter than normal composite panel

Packaging of Aluminum-core Panel:



Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
