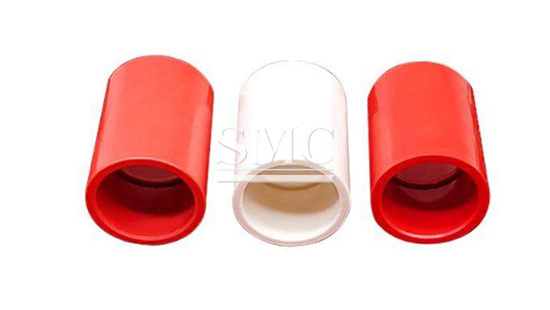

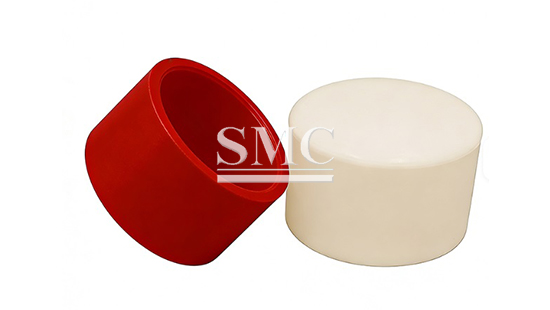

Material: ABS

Outer Diameter: 12mm-400mm

Thickness: 2mm-12mm

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is one of the leading and reliable exporters of ABS products in China. We provide the high quality matched products and excellent services for various industries.

ABS is a copolymer composed of acrylonitrile, butadiene and styrene. ABS plastic has the common properties of three components, its mechanical properties and thermal properties are excellent, stable performance in the range of -40 ~ 100℃. A makes it resistant to chemical corrosion, heat resistance, and has a certain surface hardness, B makes it have high elasticity and toughness, S makes it have the processing and forming characteristics of thermoplastics and improve electrical properties. ABS plastic is a kind of tough, hard and rigid material with good comprehensive performance, cheap price and wide use. ABS plastics have been widely used in machinery, electrical, textile, automobile, aircraft, ships and other manufacturing industries and chemical industry.

If you want to know more about our ABS products, please feel free to contact us, we will reply you within 24 hours.

1. Dimensions: Customized according to customer drawings or samples; injection molding tolerance: ±0.02–0.1 mm; CNC machining tolerance: up to ±0.01 mm; recommended wall thickness: 1.2–4 mm; minimum wall thickness: ≥0.8 mm; draft angle: 1°–3°.
2. Materials: Standard ABS, flame-retardant UL94-V0, high-impact, weather-resistant ABS, PC/ABS alloy.
3. Colors: Custom Pantone/RAL colors; standard black, white, natural, and gray; color difference ΔE ≤ 3.
4. Surface: VDI/MT texture, matte / glossy; can be painted, electroplated, screen-printed, or laser-marked.
5. Packaging: PE bags + export-grade cardboard boxes; large items can be packed on wooden pallets; custom labeling and packaging available

1. High impact resistance Good toughness, resistant to sudden shock and vibration, not easy to crack under normal load.
2. Excellent dimensional stability Low molding shrinkage. Parts keep stable size after molding, suitable for precision assembly and tight tolerance structures.
3. Good machinability & moldability Easy for injection molding, CNC cutting, drilling and tapping.
4. Great surface performance Smooth base surface. Supports painting, electroplating, silk printing, laser marking and various texture finishes for decorative purposes.
5. Electrical insulation property Good insulation performance, suitable for common electronic and electrical housings.

1. Electronics & Electrical Industry Equipment housings, control panels, instrument casings, router shells, power supply enclosures, display frames, buttons and brackets.
2. Automotive Industry Automotive interior trims, air outlet covers, inner handles, instrument panel parts, buckle clips.
3. Home Appliances Vacuum cleaner shells, air conditioner panels, small kitchen appliance housings.
4. Industrial Equipment & Instruments Protective covers for industrial instruments, mechanical brackets, connector blocks.
5. Consumer Goods & Daily Products Toy shells, model parts, luggage housings, storage box covers.

Item	Specification
Material Name	ABS (Acrylonitrile Butadiene Styrene)
Density	1.02 ~ 1.05 g/cm³
Tensile Strength	38 ~ 48 MPa
Flexural Strength	55 ~ 75 MPa
Izod Impact Strength (Notched, 23℃)	12 ~ 22 kJ/m²
Hardness	Rockwell R 95 ~ 115
Heat Deflection Temperature (0.45MPa)	80 ~ 90 ℃
Continuous Service Temperature	-20 ~ 80 ℃
Molding Shrinkage	0.4% ~ 0.7%
Volume Resistivity	10¹⁶ Ω·cm
Flammability	UL94 HB (standard grade)
UV Resistance	Poor; easy yellowing without modification

Standard Packaging

There are three common types of packaging for ABS fittings: first, woven bags wrapped in PE film, which are suitable for high-volume, full-container shipments; second, cardboard boxes, which are suitable for small-diameter pipe fittings, samples, and less-than-container-load (LCL) shipments; and third, wooden crates, which enhance transport safety.

Shipping

We support FCL and LCL sea freight, air freight, as well as project specific over land trucking, subject to order quantity and destination country. Available trade terms include EXW, FOB, CIF, DAP and other Incoterms upon customer request. Freight cost is calculated according to cargo volume, gross weight, delivery destination and selected transport mode.

Lead Time

Samples: 3 – 7 working days

Standard orders: 15 – 25 working days

Customized orders: 25 – 40 working days

Q1: What material do you use for ABS parts?

We adopt high-purity ABS raw material. Multiple modified materials are optional, including flame-retardant ABS (UL94-V0), weather-resistant ABS, high-impact ABS, and PC/ABS alloy materials to fit different working environments.

Q2: What production processes do you support?

We mainly provide injection molding for mass production and CNC machining for custom prototypes and small-batch orders. 3D printing service is also available for sample testing.

Q3: What surface treatments can you provide?

We support matte / glossy finishing, oil spraying, UV coating, electroplating, silk screen printing, laser marking and polishing to meet different appearance and anti-wear requirements.

Q4: Are ABS parts suitable for outdoor use?

Standard ABS is not recommended for long-term outdoor exposure, as it is prone to yellowing and aging under UV radiation. For outdoor scenarios, we recommend customized weather-resistant ABS or PC/ABS alloy parts.

Q5: What is the working temperature range of ABS parts?

The normal working temperature is from-20℃ to 80℃. It cannot be used in high-temperature environments above 80℃ for a long time. For high-temperature resistance requirements, PC/ABS alloy or other engineering plastics are alternative options.

Q6: Do you provide OEM & custom services?

Yes. We support full customization based on customers’ 2D/3D drawings, samples and technical requirements, including custom size, color, structure, surface effect and functional modification.

Q7: What is your delivery time?

Sample orders usually take 3–7 working days. Mass production orders take 7–15 working days, depending on product complexity and order quantity.
