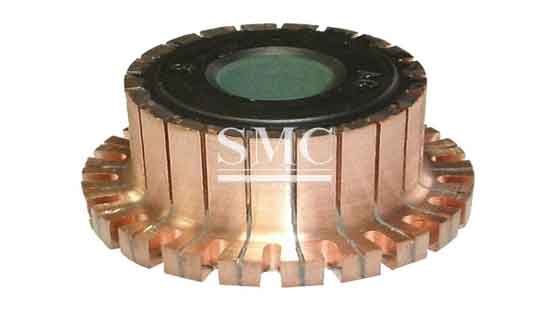

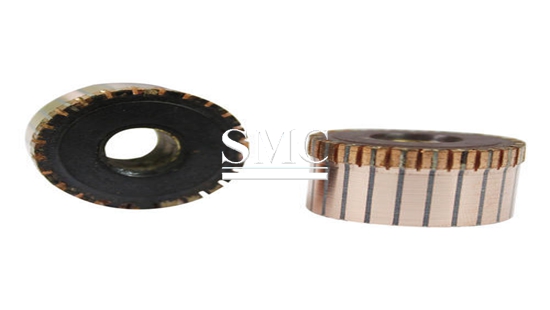

Shanghai Metal Corporation is a leading Commutator manufacturer and supplier.
A commutator is a rotary electrical switch in certain types of electric motors and electrical generators that periodically reverses the currentdirection between the rotor and the external circuit. It consists of a cylinder composed of multiple metal contact segments on the rotating armature of the machine. Two or more electrical contacts called "brushes" made of a soft conductive material like carbon press against the commutator, making sliding contact with successive segments of the commutator as it rotates. The windings (coils of wire) on the armatureare connected to the commutator segments.
Commutators are used in direct current (DC) machines: dynamos (DC generators) and many DC motors as well as universal motors. In a motor the commutator applies electric current to the windings. By reversing the current direction in the rotating windings each half turn, a steady rotating force (torque) is produced. In a generator the commutator picks off the current generated in the windings, reversing the direction of the current with each half turn, serving as a mechanical rectifier to convert the alternating current from the windings to unidirectional direct current in the external load circuit.
Commutators are relatively inefficient, and also require periodic maintenance such as brush replacement. Therefore, commutated machines are declining in use, being replaced by alternating current (AC) machines, and in recent years by brushless DC motors which use semiconductorswitches.
If you want to know more about our commutator or other copper electrical products price please feel free to contact us, we will reply you within 24 hours.
1) Complete solution (development, production & support services)
2) Long tradition and experience in re-forming of copper and injection molding
3) Established development and quality processes according to quality standards
4) In-house manufacture of tools and production equipment for the automation process
5) Sustained level of quality at all production locations worldwide
6) Reliable partner ensuring optimal relation between quality and price

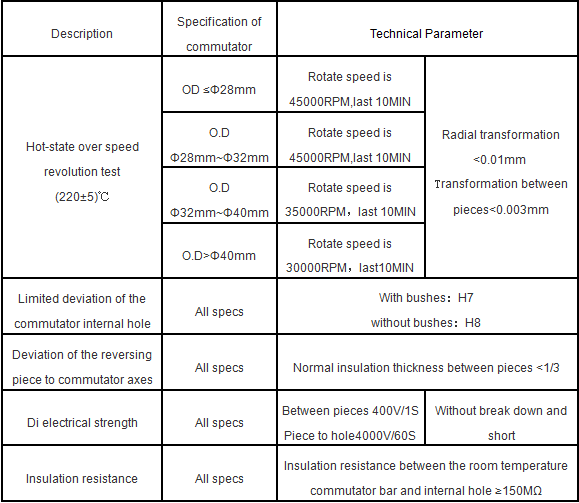

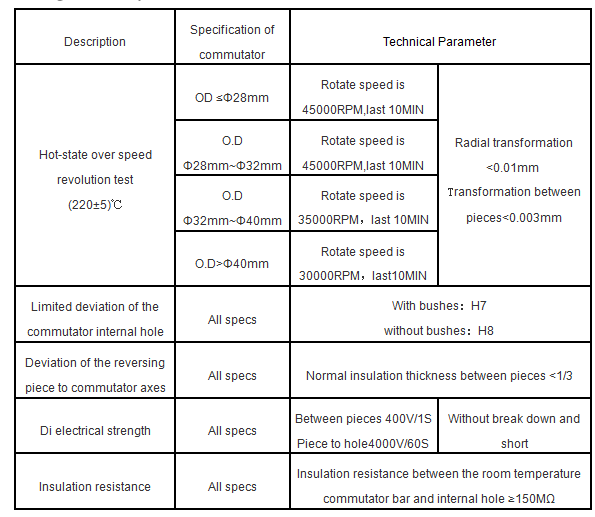

Testing technical parameter:

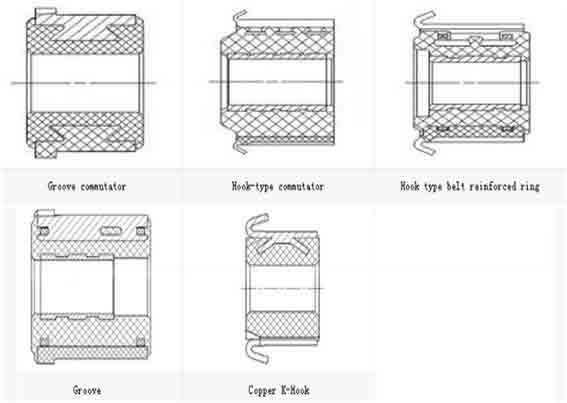

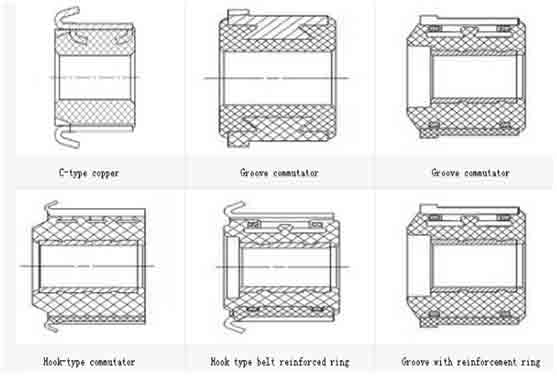

Commutator analysis drawing:
Packaging of Commutator:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)Shanghai Metal Standard
For auxiliary motors
For fuel pump motors
For starter motors
For household appliance motors
For industrial motors
For power tool motors
Complete solution (development, production & support services)
Long tradition and experience in re-forming of copper and injection molding
Established development and quality processes according to quality standards
In-house manufacture of tools and production equipment for the automation process
Sustained level of quality at all production locations worldwide
Reliable partner ensuring optimal relation between quality and price
