Purity: Zn ≥99.95%

Thickness: 0.05~2.0 mm

Width: 10~650 mm (narrowband can be slit to 5mm)

Length: on-demand, continuous roll, can be cut to length

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading Zinc Strip / Coil / Sheet / Plate manufacturer and supplier.

Our Zinc Strip / Coil / Sheet / Plate are rolled products manufactured from pure zinc, complying with ASTM B69, ASTM B418 and GB/T 2059 standards. The pure zinc grades contain minimum 99.95% zinc up to 99.995% zinc, with strictly controlled trace impurities of lead, iron, copper and cadmium. Available thickness ranges from 0.05 mm to 20 mm, with customizable width, length and cutting sizes based on client drawings. These rolled zinc materials offer good ductility for bending, stamping and machining, stable electrochemical potential and natural atmospheric corrosion resistance. They are widely applied as sacrificial anodes for buried steel pipelines, storage tanks and subsea steel structures to mitigate galvanic corrosion and extend service life of steel assets. They also serve as zinc anodes for electroplating lines, roofing and flashing components in building construction, substrates for zinc-air batteries and evaporation materials for vacuum coating. The products can be supplied with anti-rust paper, PE film and IPPC wooden pallets for ocean shipment to avoid white rust during transit.

If you want to know more about our Rare Metal (Indium,Nickel,Molybdenum products & Electronics Industry Metals or Zinc Strip / Coil / Sheet / Plate price please feel free to contact us, we will reply you within 24 hours.

1.Zn ≥99.95%

2.Standard: GB/T 2059 / ASTM B69

3.Thickness: 0.05~2.0 mm

4.Width: 10~650 mm (narrowband can be slit to 5mm)

5.Length: on-demand, continuous roll, can be cut to length

6.Roll weight: 50-1000 kg/roll, typically with an inner diameter of 300/400/508mm

1.High electrochemical activity: Zinc has a relatively negative potential and can be used as a sacrificial anode to preferentially corrode and protect steel (core characteristic of cathodic protection).

2.Good plasticity, easy to process: Mohs hardness of 2.5, easy to bend, punch, shear, and weld; Thin zinc strip bendable winding.

3.Atmospheric corrosion resistance: A dense alkaline zinc carbonate passivation layer will spontaneously form in the air, slowing down further corrosion; Long term use of building zinc sheet forms stable copper green texture coating.

4.Good conductivity and thermal conductivity, suitable for electroplating anodes, battery electrodes, and vacuum evaporation target substrates.

5.It is 100% recyclable and has a high recycling rate.

1. Cathodic protection sacrificial anode (zinc strip anode): buried steel pipes, storage tanks, cable sleeves, marine steel structures, zinc coil/zinc strip winding laying, is a commonly used solution in the oil and gas and pipeline industries (ASTM B418).

2. Electroplating anode plate: Pure zinc anode plate in electroplating tank, used for electroplating zinc on metal surfaces. High purity zinc can reduce impurities in the coating.

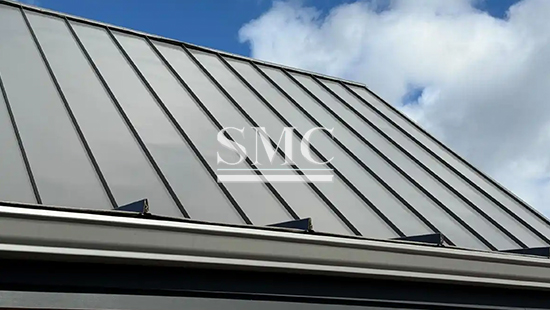

3.Building roof, curtain wall, flashing, rainwater trough: Copper titanium alloy zinc plate, a classic European building material, with a weather resistance life of up to a hundred years.

4.Battery industry: Zinc air battery, primary dry battery negative electrode zinc substrate, high-purity zinc foil/zinc strip.

5.Vacuum coating and evaporation target materials: high-purity zinc sheet, PVD evaporated zinc film.

6.Electronic shielding, shock-absorbing gaskets, experimental research electrodes.

Regular size (customizable cutting):

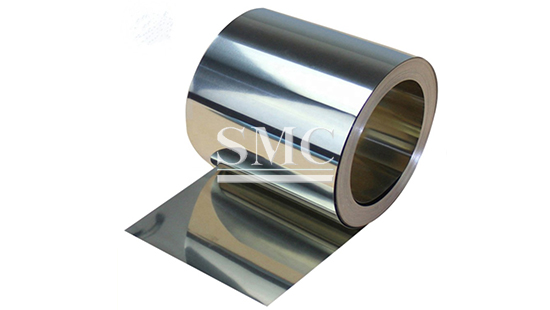

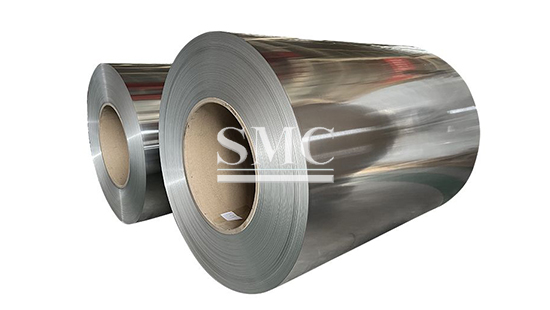

Zinc Coil/Zinc Strip：

Thickness: 0.05~2.0 mm

Width: 10~650 mm (narrowband can be slit to 5mm)

Roll weight: 50-1000 kg/roll, typically with an inner diameter of 300/400/508mm

Length: on-demand, continuous roll, can be cut to length.

Zinc Sheet：

Thickness: 0.2~3.0 mm

Conventional tablet sizes: 500 × 1000 mm, 1000 × 2000 mm, customizable for cutting

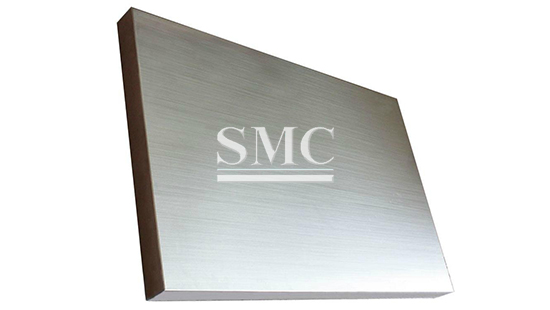

Zinc Plate：

Thickness: 3~20 mm (thicker can be cast and rolled)

Board surface: up to 1200 × 2400mm, supports cutting and drilling

Surface condition: Rolled primary silver ash, bright precision rolling, rust proof passivation film; Can be covered with film for protection.

Packaging of Zinc Strip / Coil / Sheet / Plate:

Standard Packaging:

1. Zinc Coil/Zinc Strip: wrapped in moisture-proof and rust proof paper, sealed with PE plastic film, and protected by protective rings at both ends; Steel strapping, wooden pallets.

2. Zinc Sheet: PE protective film is applied to the board surface, and paper is used to isolate and prevent scratches between the boards; Stacked packaging, bottom wooden pallet, steel strip reinforcement; Thick plates can be individually packaged in wooden boxes.

Shipping:

We support FCL and LCL sea freight, air freight, and express delivery, depending on order quantity and destination. Available trade terms include EXW, FOB, CIF, and others upon request. Shipping costs are calculated based on cargo volume, gross weight, destination, and selected transportation method.

Lead Time：

Sample: 5 working days

Standard orders:25~30 working days

packing packing

1. Q: What forms can rolled zinc materials be supplied in?

A: They are available as strip, coil, sheet and plate with customizable thickness, width and cutting size.

2. Q: What base materials are used for these zinc products?

A: Made of pure zinc or zinc-copper-titanium alloy with different purity grades.

3. Q: What protective packing is used for sea transport?

A: Wrapped with anti-rust paper and PE film, packed on IPPC wooden pallets to prevent white rust.

4. Q: Which standard covers zinc sacrificial anodes for corrosion protection?

A: ASTM B418 specifies zinc alloy sacrificial anodes for cathodic protection of steel structures.

5. Q: What is the main function of zinc strip used on buried steel pipelines?

A: It acts as sacrificial anode, corrodes preferentially to protect steel from galvanic corrosion.

6. Q: What is the difference between ASTM B69 and GB/T 2059 for rolled zinc?

A: ASTM B69 is US standard for rolled zinc; GB/T 2059 is Chinese standard for zinc and zinc alloy sheet/strip.
