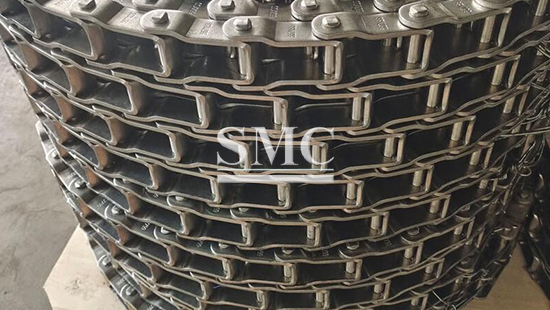

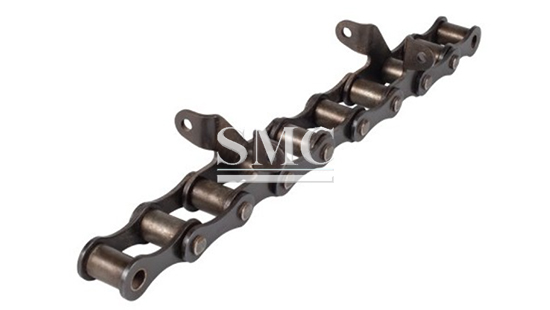

Steel Pintle Chain

Type: Sealing, Non-lubricated, Seamless sleeve

Pitch: 8 - 120mm

Pin Diameter: 5 - 80mm

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading steel pintle chain manufacturer and supplier.

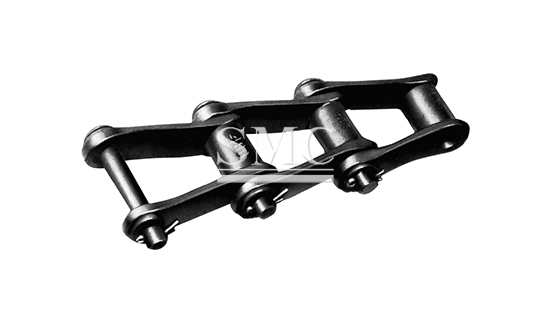

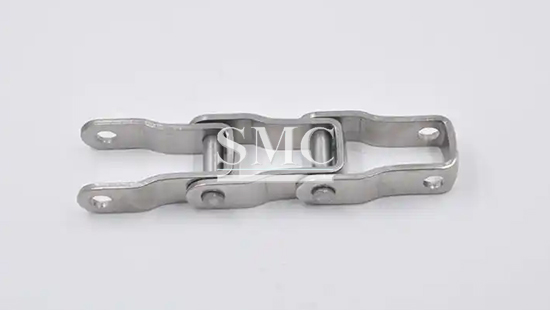

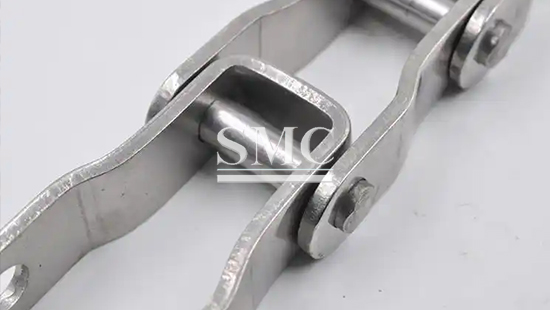

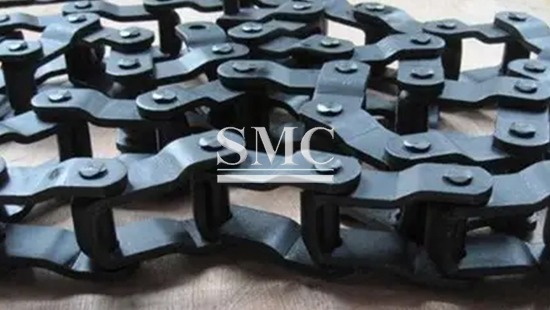

Steel pintle chains are robust, heavy-duty conveyor chains distinguished by their simple yet strong interlocking design. Their core feature is the "pintle" – a solid cylindrical steel pin that acts as the pivotal connection point between sturdy steel link plates. These plates, often offset, interlock directly via the pintle pins, which are typically secured with cotters or circlips. While many designs incorporate hardened steel bushings to reduce friction and wear on the links, classic pintle chains notably lack rollers.

Key advantages stem from their rugged steel construction: exceptional strength for high loads and impacts, outstanding durability and wear resistance, and effective debris tolerance due to their open design, minimizing jamming in dirty environments. With coatings like galvanizing, they also offer good corrosion resistance. Their simplicity makes them relatively easy to inspect, maintain, and repair.

Primarily used in demanding material handling, they are common in mining, aggregates, forestry, waste/recycling, and agriculture. They are also extensively used in food and beverage processing (often in stainless steel) due to their cleanability and drainage, as well as in agricultural machinery and construction equipment where reliability under tough conditions is critical. They excel where strength and durability outweigh the need for high speed.

If you want to know more about our mechanical products or steel pintle chain price, please feel free to contact us. We will reply you within 24 hours.

1.Type: Sealing ring chain, Non-lubricated chain, Seamless sleeve chain;
2.Pitch: 8 - 120mm;
3.Pin Diameter: 5 - 80mm;
4.Ultimate Tensile Strength: 16kN - 892kN;
5.Average Tensile Strength: 12kN - 776kN.

1.High tensile strength;
2.High fatigue strength;
3.High wear resistance;
4.High corrosion resistance;
5.Can adapt to complex farmland environments.

1.Fertilizing and Seeding Machinery;
2.Irrigation and Harvesting Equipment;
3.Feed and Grain Processing.

Technical Information of Steel Pintle Chains:

1. Structure of Steel Pintle Chains:

SMC Chain No.	Pitch	Width between inner plates	Pin diameter	Pin length		Plate depth	Plate thickness	Tensile strength	Average tensile strength	Weight per meter
	P	b1	d2	L	Lc	h2	T	Q	Q0	q
		min	max	max	max	max		min
	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
662	42.27	22.9	7.19	41.2	44.2	18.8	3.2	37.80/8591	49.8	1.63
667H	58.75	25.4	7.94	43.7	46.7	22.2	3.2	42.30/9614	59.3	1.87
667X	57.15	26.6	11.1	50.2	55	23.8	4.3	66.70/15159	96.5	2.98
667XH	57.15	27.4	11.91	58	62	27.3	5.7	124.50/28295	138.6	4.34
667K	57.15	27.4	11.1	55.5	60	27.3	5.1	89.00/20227	123.2	3.91
667J	57.15	26.6	9.53	50.2	55	27.3	4.3	62.28/14155	84.1	2.81
88K	66.27	27.4	11.1	55.5	60	27.3	5.1	89.00/20227	123.2	3.73
88C	66.27	31.4	12.7	64.6	69	28.9	6.4	133.36/30309	160.5	5.17

SMC Chain No.	Pitch	Width between inner plates	Pin diameter	Attachment dimension						Tensile strength
	P	b1	d2	G	F	W	h3	d4	t	Q
		min	max
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf
662F7	42.27	22.9	7.19	41.2	44.2	18.8	3.2	37.80/8591	49.8	1.63
667HF2	58.75	25.4	7.94	43.7	46.7	22.2	3.2	42.30/9614	59.3	1.87

SMC Chain No.	Pitch	Width between inner plates	Pin diameter	Attachment dimension			Tensile strength
	P	b1	d2	G	F	t	Q
		min	max
	mm	mm	mm	mm	mm	mm	kN/lbf
667KF2SS	57.15	27.8	27.3	38.1	536.7	9.7	67.00/15062
667KF3SS	57.15	27.8	27.3	38.1	714.2	9.7	67.00/15062
88KF10	66.27	27.4	27.3	31.75	604.2	9.5	37.80/8497

SMC Chain No.	Pitch	Width between inner plates	Pin diameter	Attachment dimension					Tensile strength
	P	b1	d2	G	F	t	h3	h4	Q
		min	max						min
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf
662F4	42.27	22.9	18.8	30	539.75	3	30	5.25	37. 80/8597
662HF3	42.27	21.8	22.2	30	487.35	3	30	7.1	50.80/11420

SMC Chain No.	Pitch	Width between inner plates	Pin diameter	Attachment dimension							Tensile strength
	P	b1	d2	G	F	F1	L	t	h3	h4	Q
		min	max								min
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf
667X-ASF10	57.15	27	23.8	28.6	814.4	749.3	50.8	4.8	25.4	4	66.70/14994
667X-ASF11	57.15	27	23.8	28.6	1450.9	1385.8	50.8	4.8	25.4	4	66.70/14994
667K-ASF9	57.15	27.8	27	31.75	1736.7	1671.6	50.8	6.4	38.1	4.8	66.70/14994

SMC Chain No.	Pitch	Width between inner plates	Pin diameter	Attachment dimension				Tensile strength
	P	b1	d2	G	F	t	h4	Q
		min	max					min
	mm	mm	mm	mm	mm	mm	mm	kN/lbf
662F1	42.27	26.6	18.8	19	343.5	5	4.4	37. 80/8597
667X-ASF3	57.15	26.6	23.8	38	514.4	7	0	66.70/14994

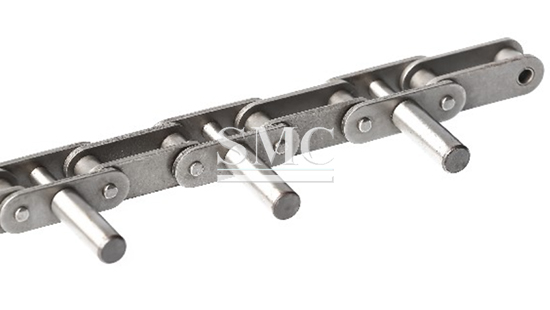

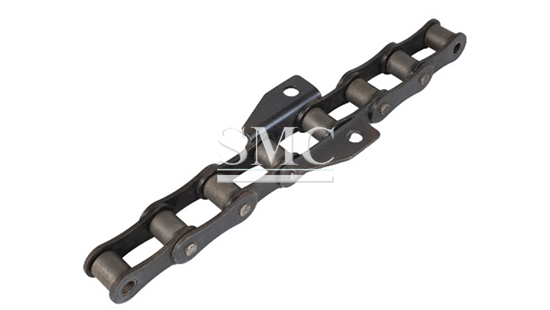

2. Spare Parts of Steel Pintle Chain:

C1 Parts:

AS Parts:

A22 Parts:

AN Parts:

Customized Parts:

Packaging of Steel Pintle Chain:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

packing
