Mooring Equipment

Mooring Anchor Chain

    Diameter: 12.5 to 70 mm


    Outside Length (L): 75mm – 420mm



    Outside Width (B): 45mm – 252mm

Product Detail

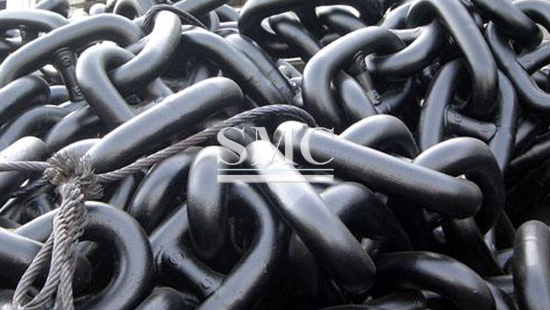

Shanghai Metal Corporation is a leading Stud Link Chain manufacturer and supplier. According to the structure of the link, the anchor chain can be divided into two types: a Stud Chain and a Studless Chain. The link chain of the chain has a crosspiece. When the size and material are the same, the strength of the chain is larger than that of the unchained chain, the deformation is small, and it is not easy to twist when stacked, which is widely used in modern large and medium-sized ships. The chain of the chainless chain has no crosspiece and is only used for small vessels. The code stipulates that when the diameter of the anchor chain equipped as required does not exceed 17 mm, it can be replaced by a non-stop anchor chain with the same test load or a wire rope or fiber rope with the same breaking load. If you want to know more about our mooring equipment products or Stud Link Chain price please feel free to contact us, we will reply you within 24 hours.

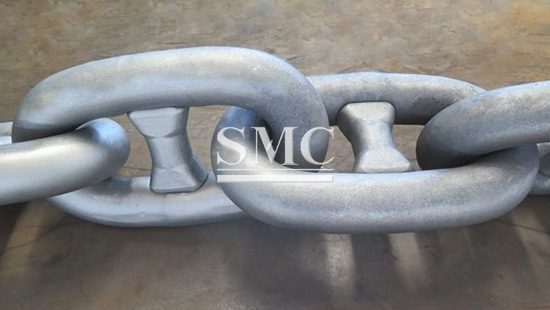

Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.

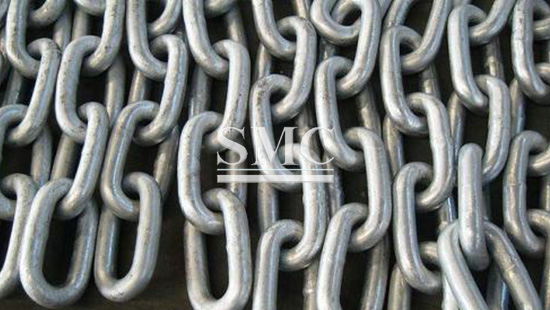

We can also provide grade 1, 2 and 3 open link chain; marine anchor: Hall anchor, Japan Stockless Anchor, U.S.N Stockless Anchor and other marine castings, like Panama Chock, Fairlead Roller, and so on. With ISO: 9001 Quality Management System, SMC can offer you best quality as well as services.

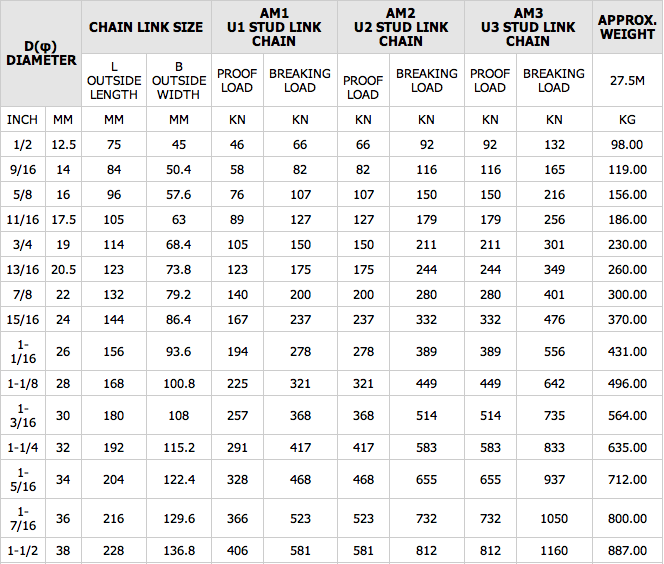

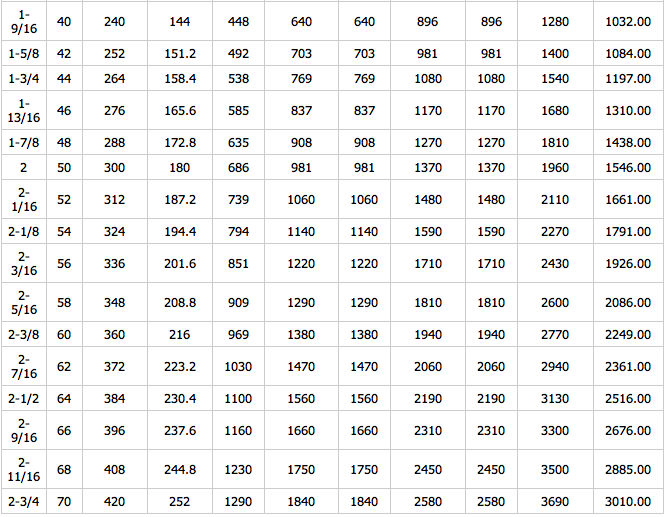

Parameter of Mooring Anchor Chain:
Following table is common data. we are able to accept orders of special shaped anchor chains. If you have any question, please welcome to contact us at once!
Package of Mooring Anchor Chain
SMC Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Package material: wooden case and iron drum or bracket

Quality of Mooring Anchor Chain
Shanghai Metal Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Certificate of Mooring Anchor Chain
Marine chain has been recognized by 11 Classification Societies such as ABS, BV, CCS, CR, DNV, GL, KR, NK, RINA, RMRS, LR
