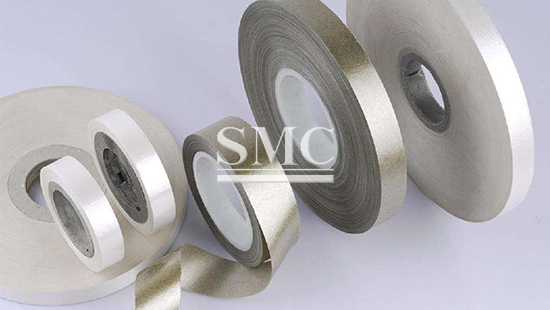

Mica tape, also known as fire-resistant mica tape, is made of mica tape machine. It is a refractory insulating material and can be divided into: mica tape for motors and mica tape for cables. According to the structure, it is divided into: double-sided tape, single-sided tape, three-in-one tape, double film tape, single film tape, etc. According to mica, it can be divided into: synthetic mica tape, phlogopite tape, and muscovite tape. Mica tape for fire-resistant safety cables is a high-performance mica insulating product with excellent high temperature resistance and combustion resistance.
Room temperature performance: Synthetic mica tape is the best, muscovite tape is second, and phlogopite tape is poor. Insulation performance at high temperature: synthetic mica tape is the best, phlogopite tape is second, and muscovite tape is poor. High temperature resistance: synthetic mica tape with fluorphlogopite tape, without crystal water, melting point 1375℃, large safety margin, best high temperature resistance, phlogopite releases crystal water above 800℃, followed by high temperature resistance, white cloud The mother releases crystal water at 600°C and has poor high temperature resistance. Its performance is also attributed to the degree of compounding of the mica tape machine.
Mica tape for fire-resistant safety cables is a high-performance mica insulating product with excellent high temperature resistance and combustion resistance. The powder mica tape has good flexibility under normal conditions and is suitable for the main fire-resistant insulation layer of various fire-resistant cables. There is basically no volatilization of harmful smoke when exposed to an open flame, so this product is not only effective for cables, but also safe.
A. Three-in-one: The product is made of glass cloth and polyester film on both sides, with powdered mica paper in the middle. Band-shaped insulating material made by using aminoborane-epoxy resin as adhesive, bonding, baking, and cutting;
B. Double-sided synthetic mica tape: Synthetic mica paper is used as the base material, glass fiber cloth is used as the double-sided reinforcement material, and it is bonded with a silicone resin adhesive. It is the most ideal material for making fire-resistant wires and cables. The fire resistance is the best, and it is recommended for key projects.
C. Single-sided synthetic mica tape: Synthetic mica paper is used as the base material, and glass fiber cloth is used as a single-sided reinforcing material. It is the most ideal material for making fire-resistant wires and cables. Good fire resistance, recommended for key projects.
