Curtain Wall System

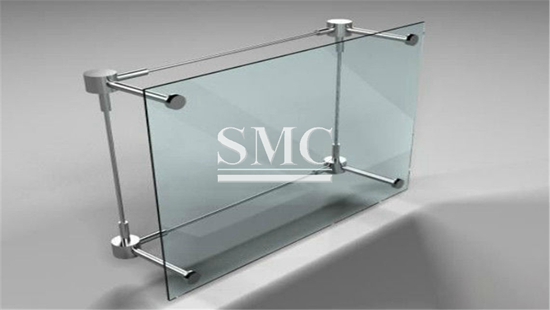

Hidden Framing Glass Curtain Wall

    Material: aluminium composite

    Frame: hidden

    Thermal performance

Product Detail

Shanghai Metal Corporation is a leading Hidden Framing Glass Curtain Wall manufacturer and supplier. The hidden frame glass curtain wall is a comprehensive technical new product. The curtain wall does not have an aluminum alloy frame for holding the glass and bearing the weight. It relies on the structural adhesive to bond hundreds of pieces of heat-reflecting coated glass to the aluminum. On the profile frame A very comprehensive hidden frame glass curtain wall node map, including lightning protection and fire protection nodes. The hidden frame glass curtain wall is to bond the glass with silicone structural sealant (referred to as structural adhesive) on the aluminum frame. In most cases, the metal connector is no longer added. Therefore, the aluminum frame is completely concealed behind the glass to form a large-area all-glass mirror.

In some projects, vertical glass curtain walls use a hidden frame curtain wall with metal connectors. Metal fasteners can be used as a safety measure, but it is easy to break the glass due to concentrated stress. The glass and the aluminum frame are completely bonded by structural glue. Structural adhesives are subject to the weight of the glass, the wind load and seismic effects of the glass, and the effects of temperature changes.Therefore, structural adhesive is the key link in the safety of hidden frame curtain wall. The structural adhesive must be able to effectively bond all the materials in contact with it (glass, aluminum, weathering adhesive, spacers, etc.), which is called compatibility.

If you want to know more about our Curtain Wall System products or Hidden Framing Glass Curtain Wall price please feel free to contact us, we will reply you within 24 hours.

  • Aluminum:

    Construction: Thermal Break or Non-Thermal Break

    Aluminum Alloy: 6063 T5

    Thickness: 1.0, 2.0mm for window& door& glass room 2.0, 2.5, 3.0mm for curtain wall

    Surface Treatment: Powder-coated/Anodized/Electrophoresis/PVDF, etc.

    Color: Silver/Bronze/Champagne/White/Black, etc.

    Type: Low-E/Reflective/Tempered/Heat-strengthened/Floated

  • Glass:

    Glazed: Single/Double/Triple

    Thickness: Single: 3mm~12mm

    Double: 5mm+6A+5mm/5mm+9A+5mm/6mm+9A+6mm, etc.

    Triple: 5mm+6A+5mm+6A+5mm or others.

    Color: Clear/Grey/Blue/Light Green, etc.

  • Hardware:

    Chinese Famous Brand or German Brand.

    Seal System: Ternary ethylene propylene rubber sealing strip

    Customers’ stipulated brand are available.

  • Hidden Framing Glass Curtain Wall

    Certificate ISO9001:2000


    Screens are available.

    Performance parameters; Sound Insulation, Water/Wind Pressure/Air Permeation Resistance


1. inside packing: Thick paper and polyfoam for first protection.

2. outside packing: wooden shelf for the second protection.

Our products is fully designed to international standard like AAMA,ASTM,EN,BS,AS,CANS.etc and is being tested according to Australian Standard AS4284. For more technical information about our products , please contact Shanghai Metal for further information.


Also can be as your request.
