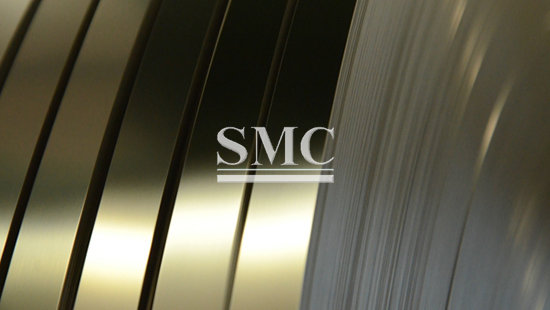

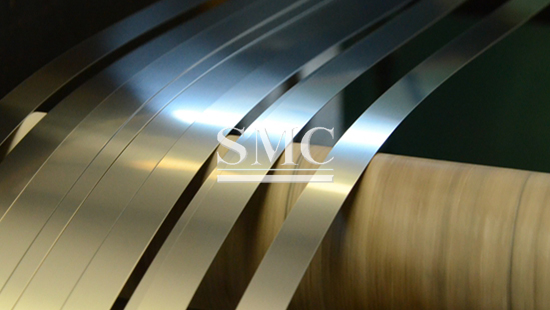

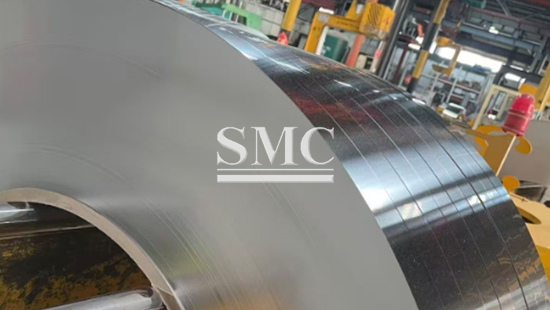

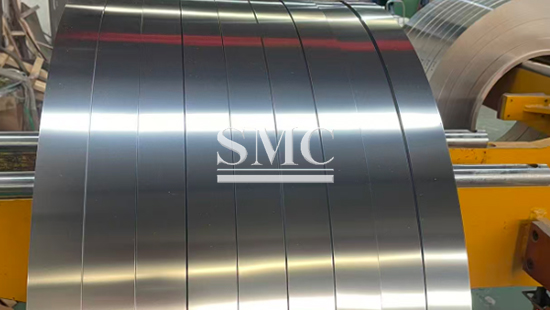

Stainless Steel Strip

Duplex Stainless Steel Strip

    Material: 2205 2304 2507




    Width:As your requirement

Shanghai Metal Corporation is a leading duplex stainless steel Strip manufacturer and supplier.

  • Duplex stainless steels are called “duplex” because they have a two-phase microstructure consisting of grains of ferritic and austenitic stainless steel. The picture shows the yellow austenitic phase as “islands” surrounded by the blue ferritic phase. When duplex stainless steel is melted it solidifies from the liquid phase to a completely ferritic structure. As the material cools to room temperature, about half of the ferritic grains transform to austenitic grains (“islands”). The result is a microstructure of roughly 50% austenite and 50% ferrite.

  • Duplex stainless steels have a two-phase microstructure of austenite and ferrite grains.

  • The duplex structure gives this family of stainless steels a combination of attractive properties:

    Strength: Duplex stainless steels are about twice as strong as regular austenitic or ferritic stainless steels.

  • Toughness and ductility: Duplex stainless steels have significantly better toughness and ductility than ferritic grades; however, they do not reach the excellent values of austenitic grades.

    Corrosion resistance: As with all stainless steels, corrosion resistance depends mostly on the composition of the stainless steel. For chloride pitting and crevice corrosion resistance, their chromium, molybdenum and nitrogen content are most important. Duplex stainless steel grades have a range of corrosion resistance, similar to the range for austenitic stainless steels, i.e from Type 304 or 316 (e.g. LDX 2101©) to 6% molybdenum (e.g. SAF 2507©) stainless steels.

  • Cost: Duplex stainless steels have lower nickel and molybdenum contents than their austenitic counterparts of similar corrosion resistance. Due to the lower alloying content, duplex stainless steels can be lower in cost, especially in times of high alloy surcharges. Additionally, it may often be possible to reduce the section thickness of duplex stainless steel, due to its increased yield strength compared to austenitic stainless steel. The combination can lead to significant cost and weight savings compared to a solution in austenitic stainless steels.

  • Stress corrosion cracking resistance: Duplex stainless steels show very good stress corrosion cracking (SCC) resistance, a property they have “inherited” from the ferritic side. SCC can be a problem under certain circumstances (chlorides, humidity, elevated temperature) for standard austenitics such as Types 304 and 316.

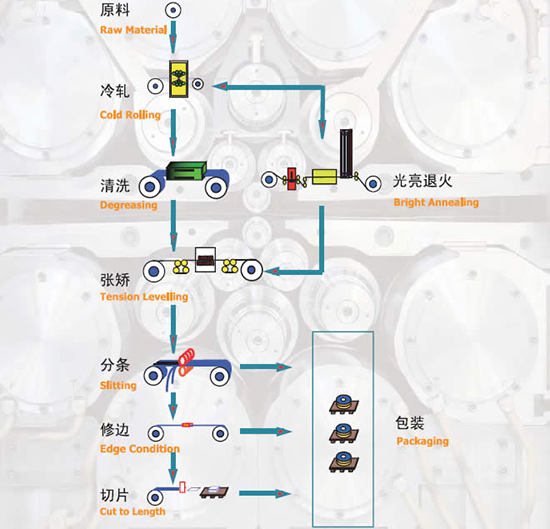

  • Twelve-roll Rolling Mill; Twenty-roll Rolling Mill;

    BA Continuous Bright Annealing Furnace;

    TA/SR Tension Annealing Furnace;

    Cleaning Line; Tension Flexion Leveller;

    Raw material shearer; Product Test.

To learn more about us, visit the case study.

If you want to know more about our stainless steel products or duplex stainless steel Strip price please feel free to contact us, we will reply you within 24 hours.

    Technical information of Duplex Stainless Steel Strip:

Excellent general corrosion resistance; superior to Grade 316 in most environments. Excellent resistance to localized corrosion including intergranular, pitting and crevice corrosion; the CPT of 2205 is generally at least 35ºC. The grade is also resistant to chloride stress corrosion cracking (SCC) at temperatures of up to about 150ºC. Grade 2205 will often perform well in environments which cause premature failure of austenitic grades. It has better resistance to sea water then Grade 316.

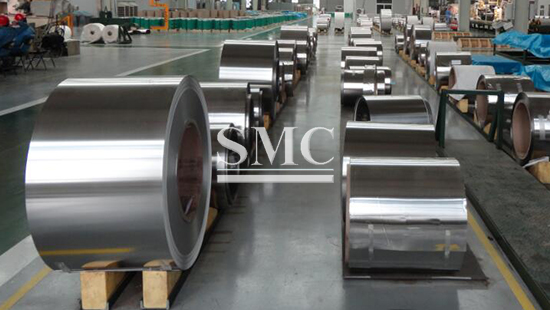

Packaging of Duplex Stainless Steel Strip:

Application Range of Duplex Stainless Steel Strip:

1.Chemical processing, transport and storage,

2.Oil and Gas exploration and processing equipment,

3.Marine and other high chloride environments,

4.Pulp and paper digesters, liquor tanks and paper machines.
